8-Port Gigabit (PoE+) Ethernet Smart Managed Pro Switch with (2 SFP or 2 Copper Ports and)
Cloud Management
Configure Switching User Manual179
4. Enter one of the following passwords:
• After registration, enter the local device password.
By default, the local device password is password.
• If you previously managed the switch through the Insight app or Cloud portal, enter
the Insight network password for the last Insight network location.
For information about the credentials, see
Credentials for the local browser interface on
page 32.
5. Click the Login button.
The System Information page displays.

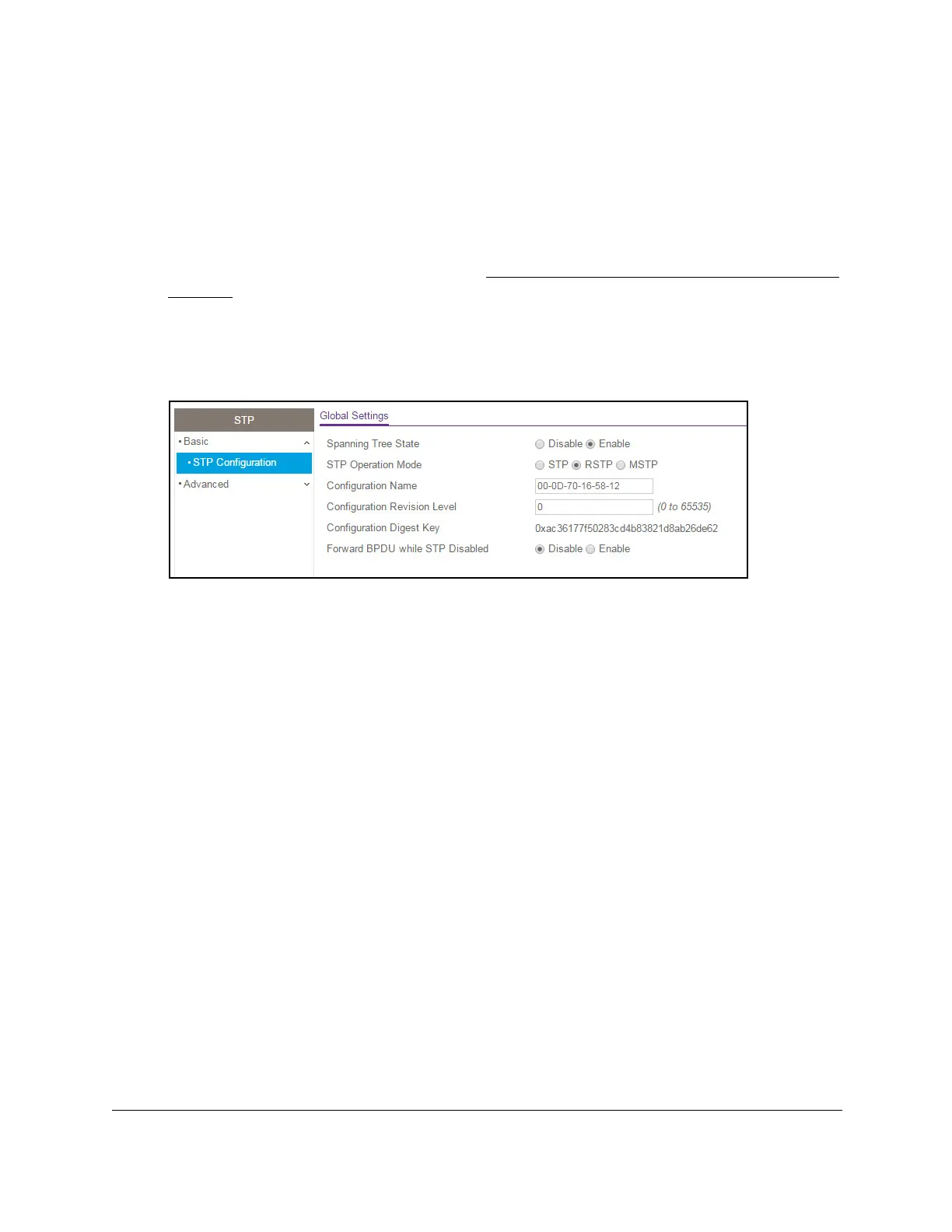

6. Select Switching > STP > Basic > STP Configuration.
7. Configure the following global settings for the switch:
a. Spanning Tree State. Enable or disable the spanning tree operation on the switch.
By default, spanning tree operation is disabled.
b. STP Operation Mode. Specify the STP version for the switch.
The options are STP, RSTP, and MSTP.
The default is RSTP.
c. Configuration Name. Specify a name to identify the STP
, RSTP, or MSTP
configuration.
The name can be up to 32 alphanumeric characters.
d. Configuration Revision Level. Specify an identifier to identify the STP
, RSTP, or
MSTP configuration.
The values can be from 0 to 65535. The default value is 0.
e. Forward BPDU while STP Disabled. Enable or disable the bridge protocol data
unit (BPDU) flood.
This setting specifies whether spanning tree BPDUs are forwarded while spanning
tree is disabled on the switch.
8. Click the Apply button.
Your settings are saved.
