8-Port Gigabit (PoE+) Ethernet Smart Managed Pro Switch with (2 SFP or 2 Copper Ports and)
Cloud Management
Manage Device Security User Manual402

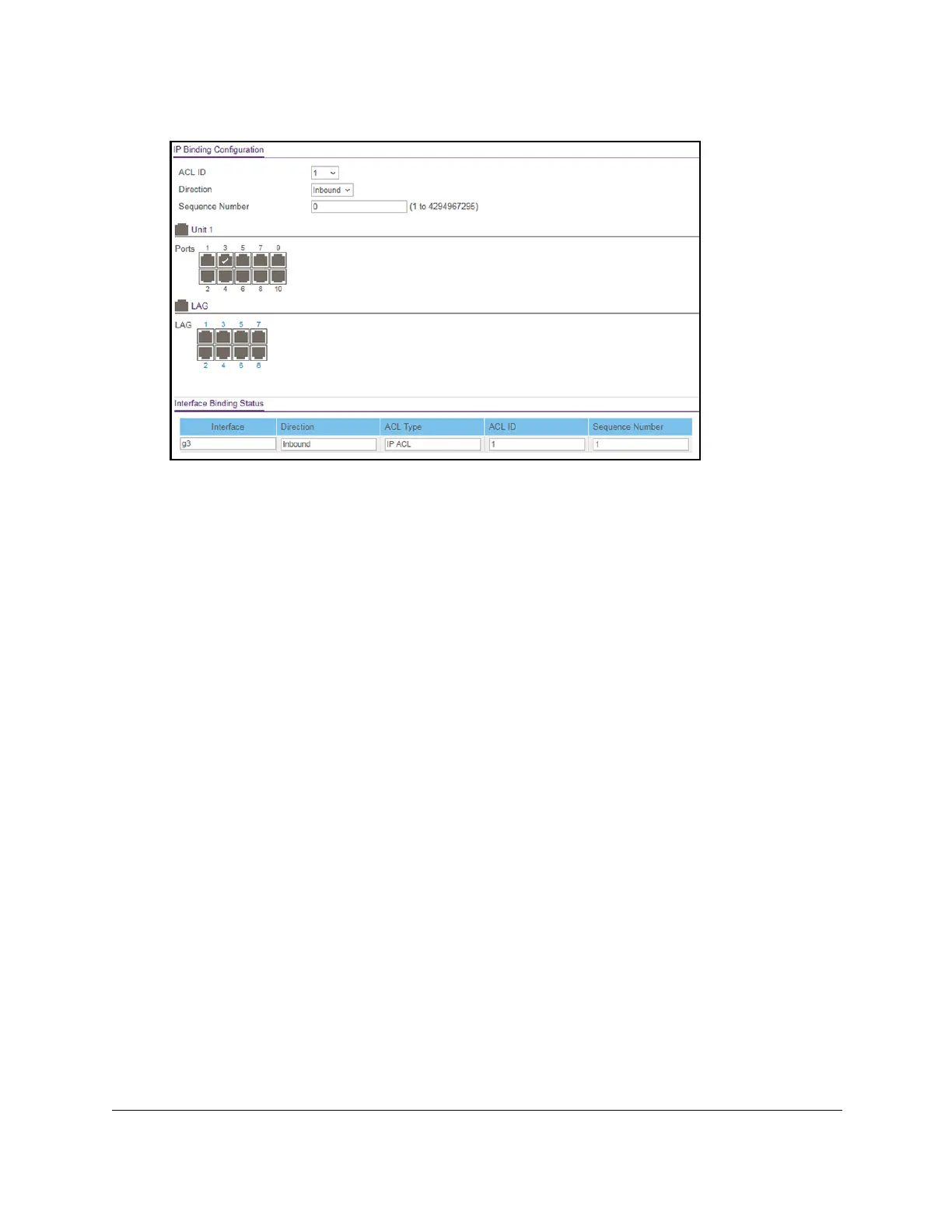

The previous figure shows the IP Binding Configuration page for model GS110TPv3.
7. From the ACL ID menu, select the existing IP
ACL for you which you want to add an IP ACL
interface binding.
The fixed selection from the Direction menu is Inbound, which means that IP
ACL rules
are applied to traffic entering the interface.
8. In the Sequence Number field, optionally specify a number to indicate the order of the
access list relative to other access lists already assigned to the interface and direction.
A low number indicates high precedence order. If a sequence number is already in use
for the interface and direction, the specified access list replaces the currently attached
access list using that sequence number
. If you do not specify the sequence number
(meaning that the value is 0), a sequence number that is one number greater than the
highest sequence number currently in use for the interface and direction is used. The
range is from 1 to 4294967295.
9. T
o add the selected ACL to a port or LAG, in the Ports table or LAG table, click the port or
LAG so that a check mark displays.
You can add the ACL to several ports and LAGs.
The Ports and LAG tables display the available interfaces for ACL bindings. All
nonrouting physical interfaces, VLAN interfaces, and interfaces participating in LAGs are
listed.
10. Click the Apply button.
Your settings are saved.
