Content Filtering and Optimizing Scans
223
ProSecure Unified Thr
eat Management (UTM) Appliance
Figure 125.
2.

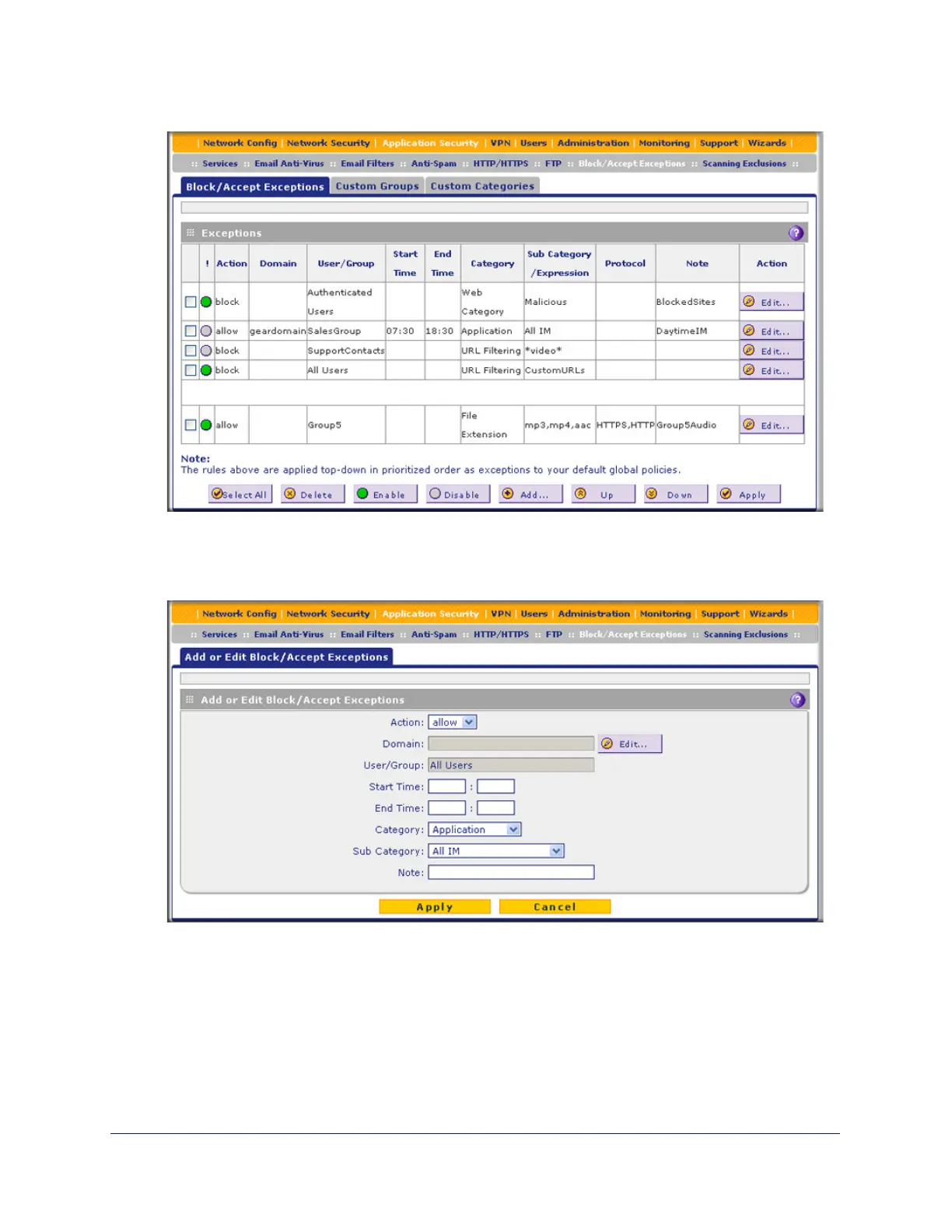

Under the Exceptions table, click the
Add
table button to specify an exception rule. The Add
or Edit or Block/Accept
Exceptions screen displays:
Figure 126.
