NETGEAR XS708T User Manual

Configure Routing
207
XS708T, XS712Tv2, and XS716T Smart Managed Pro Switch User Manual
6. Select one or more interfaces by taking one of the following actions:
• To configure a single interface, select the check box associated with the port, or type
the port number in the Go To Interface field and click the Go button.
• To configure multiple interfaces with the same settings, select the check box
associated with each interface.
• To configure all interfaces with the same settings, select the check box in the heading
row.
7. From the IPv6 Mode menu, select Enable or Disable.
When IPv6 mode is enabled, the interface is capable of IPv6 operation without a global
address. In this case, an EUI-64-based link-local address is used. The default value is
Disable.
8. From the DHCPv6 Client Mode menu, select to enable or disable the DHCPv6 client mode
on an interface.
Only one interface can function as a client. The default value is Disable.
9. From the Stateless Address AutoConfig Mode menu, select to enable or disable the
stateless address autoconfiguration mode on an interface.
The default value is Disable.
10. From the Admin Mode menu, select to enable or disable the IPv6 mode.
The default is Disable. When the IPv6 mode is enabled, the interface is capable of IPv6
operation without a global address. In this case, an EUI-64-based link-local address is
used.
11. In the MTU field, specify the maximum transmit unit (MTU) for an interface.
If the value is 0, then this interface is not enabled for routing. It is not valid to set this value
to 0 if routing is enabled. The MTU range 1280 to 9198. The default is 1500.
12. In the Duplicate Address Detection Transmits field, specify the number of duplicate
address detection (DAD) transmits on an interface.
The DAD transmits value must be in the range 0 to 600. The default is 1.

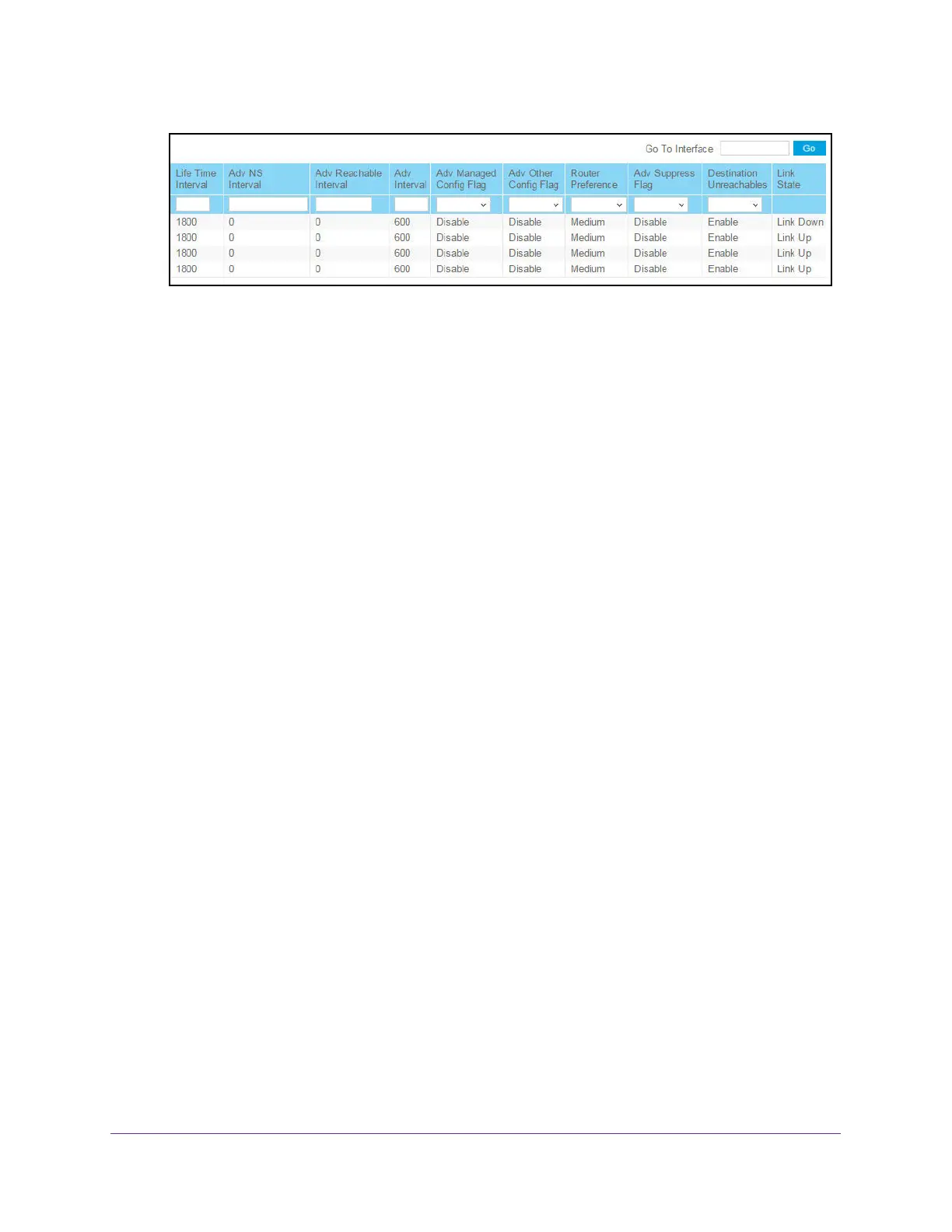

13. In the Life Time Interval field, specify the router advertisement life time interval that is sent
from the interface.
This value must be greater than or equal to the maximum advertisement interval.
0 means do not use the router as the default router. The range of router life time is 0 to
9000. The default is 1800.

NETGEAR XS708T Specifications

General

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
USB 2.0 ports quantity	1
SFP+ module slots quantity	2
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	8
Certification	CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC
Product color	Black
LED indicators	Activity, Link, Power
Number of fans	1 fan(s)
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN
Cable types supported	Cat5e, Cat6, Cat6a, Cat7
Copper ethernet cabling technology	10GBASE-T
Noise level	29.1 dB
Flash memory	256 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276832 h
Jumbo frames	9000
Latency (10 Gbps)	3.012 µs
MAC address table	16000 entries
Packet buffer memory	2 MB
Number of static routes	32
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS
Access Control List (ACL) rules	100
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	96 W
Operating altitude	0 - 3000 m
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2980 g
