Nordson Asymtek X-1020 User Manual

Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 4-58 P/N 196515 (Revision A)
Go to Servo Controller
(PMAC) Verification
Procedure
Does green
light on Beacon
illuminate when Front
Hatch is closed?
Locate the power LEDs on
the XY Servo Interface PWA.
Does red SRVO_
PWR LOW LED on XY
Servo Interface PWA
illuminate when Front
Hatch is closed?
Go to Interlock Fault
Isolation Procedure
Go to Interlock Fault
Isolation Procedure
Make sure Front Hatch
is closed.
No
Yes
No
Yes
Go to Servo Controller
(PMAC) Verification
Procedure
Does green
light on Beacon
illuminate when Front
Hatch is closed?
Does green
light on Beacon
illuminate when Front
Hatch is closed?
Locate the power LEDs on
the XY Servo Interface PWA.
Does red SRVO_
PWR LOW LED on XY
Servo Interface PWA
illuminate when Front
Hatch is closed?
Does red SRVO_
PWR LOW LED on XY
Servo Interface PWA
illuminate when Front
Hatch is closed?
Go to Interlock Fault
Isolation Procedure
Go to Interlock Fault
Isolation Procedure
Make sure Front Hatch
is closed.
No
Yes
No
Yes
Diagram Sheet 4-5-3

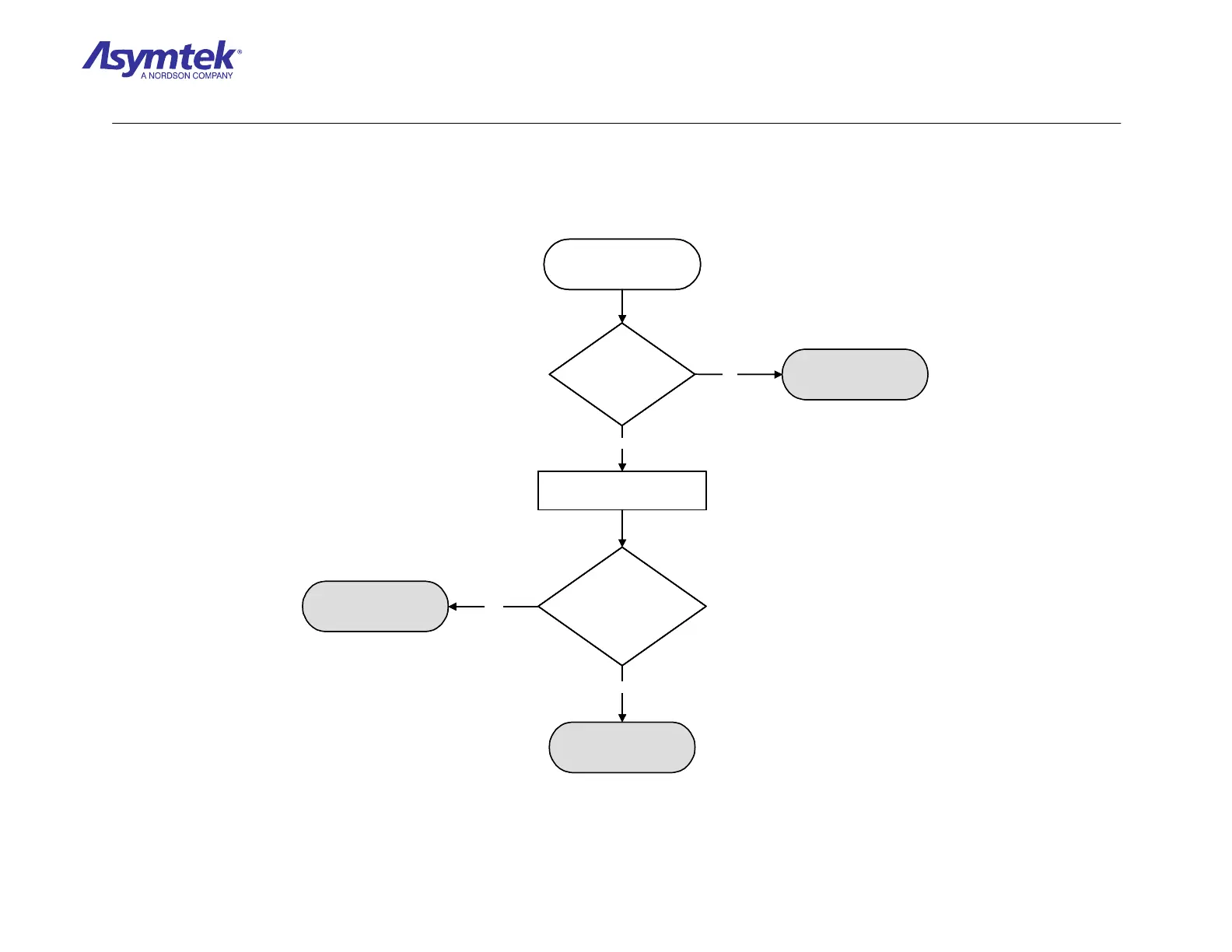

No Z-Axis Motion Fault Isolation Procedure - Interlock Verification
