Nordson Asymtek X-1020 User Manual

Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 4-87 PN 1965155 (Revision A)
Place an opaque plastic card into
the X-axis Home Sensor slot.
Measure VDC between Pin 1
and Pin 4 of the X-axis Home
Sensor Cable (P/N 06-4550-00)
at J3, connected to the X-axis
Home Sensor PWA.
Go to PMAC Fatal
Following Error Verification
A
Is the reading less
than 2 VDC?
Manually move the Dispensing
Head to left side of dispensing
chamber until it contacts the
X-axis Home Sensor.
Does black Home
Flag enter the slot in the
Home Sensor without
contacting the Sensor
case?
Loosen the two 3-mm bolts,
reposition the X-axis Home
Sensor, and torque the bolts to
20 in-lbs (0.230 kg-m).
Manually move the Dispensing
Head to the far left into the X-axis
Home Sensor.
Does black
Home Flag enter the X-
axis Home Sensor without
contacting the X-axis
Home Sensor?
NoYes
No
Go to PMAC Fatal
Following Error Verification
Yes
Yes
Home/Limit Switch PWA
(P/N 60-0785-00) has
failed.
No
Place an opaque plastic card into
the X-axis Home Sensor slot.
Measure VDC between Pin 1
and Pin 4 of the X-axis Home
Sensor Cable (P/N 06-4550-00)
at J3, connected to the X-axis
Home Sensor PWA.
Go to PMAC Fatal
Following Error Verification
A
Is the reading less
than 2 VDC?
Is the reading less
than 2 VDC?
Manually move the Dispensing
Head to left side of dispensing
chamber until it contacts the
X-axis Home Sensor.
Does black Home
Flag enter the slot in the
Home Sensor without
contacting the Sensor
case?
Does black Home
Flag enter the slot in the
Home Sensor without
contacting the Sensor
case?
Loosen the two 3-mm bolts,
reposition the X-axis Home
Sensor, and torque the bolts to
20 in-lbs (0.230 kg-m).
Manually move the Dispensing
Head to the far left into the X-axis
Home Sensor.
Does black
Home Flag enter the X-
axis Home Sensor without
contacting the X-axis
Home Sensor?
Does black
Home Flag enter the X-
axis Home Sensor without
contacting the X-axis
Home Sensor?
NoYes
No
Go to PMAC Fatal
Following Error Verification
Yes
Yes
Home/Limit Switch PWA
(P/N 60-0785-00) has
failed.
No

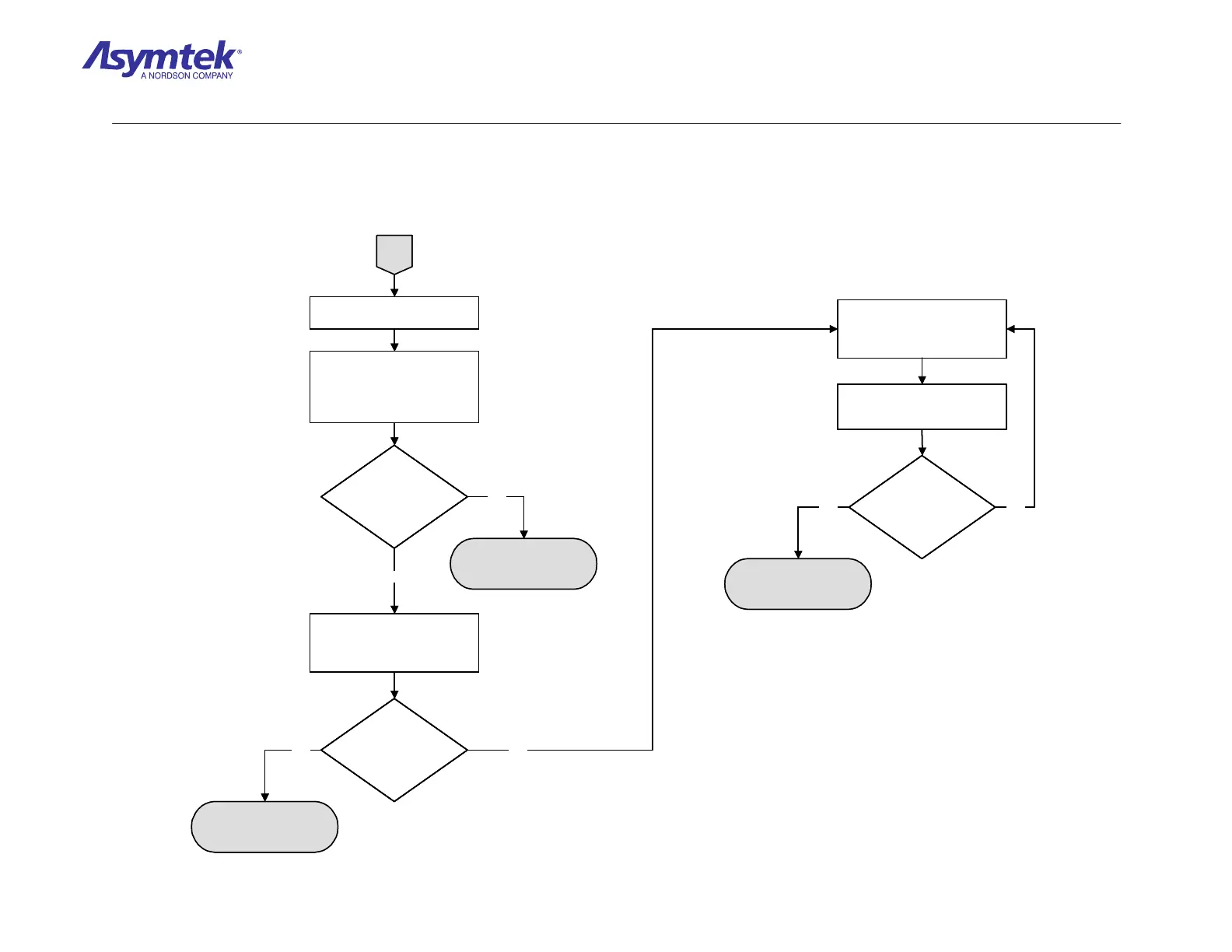

Diagram Sheet 4-6-18
PMAC Home Sensor Fault Isolation Procedure – X-Axis Home Sensor Verification (Continued)
