Olivetti PR2 - Basic Machine Adjustments (No Options); Document Feed Belt Adjustment

683311W
8-2
8.1 BASIC MACHINE ADJUSTMENTS
8.1.1 ADJUSTING THE DOCUMENT FEED BELT
MACHINE CONDITION:
Unimportant.
OBJECTIVE ADJUSTMENT:
The tension of timing belt (1) must sag 2/3 mm when applying 200 g at the center of the lower span.
PROCEDURE:
Loosen the motor securing nuts (2), tighten the belt accordingly and then retighten the nuts.

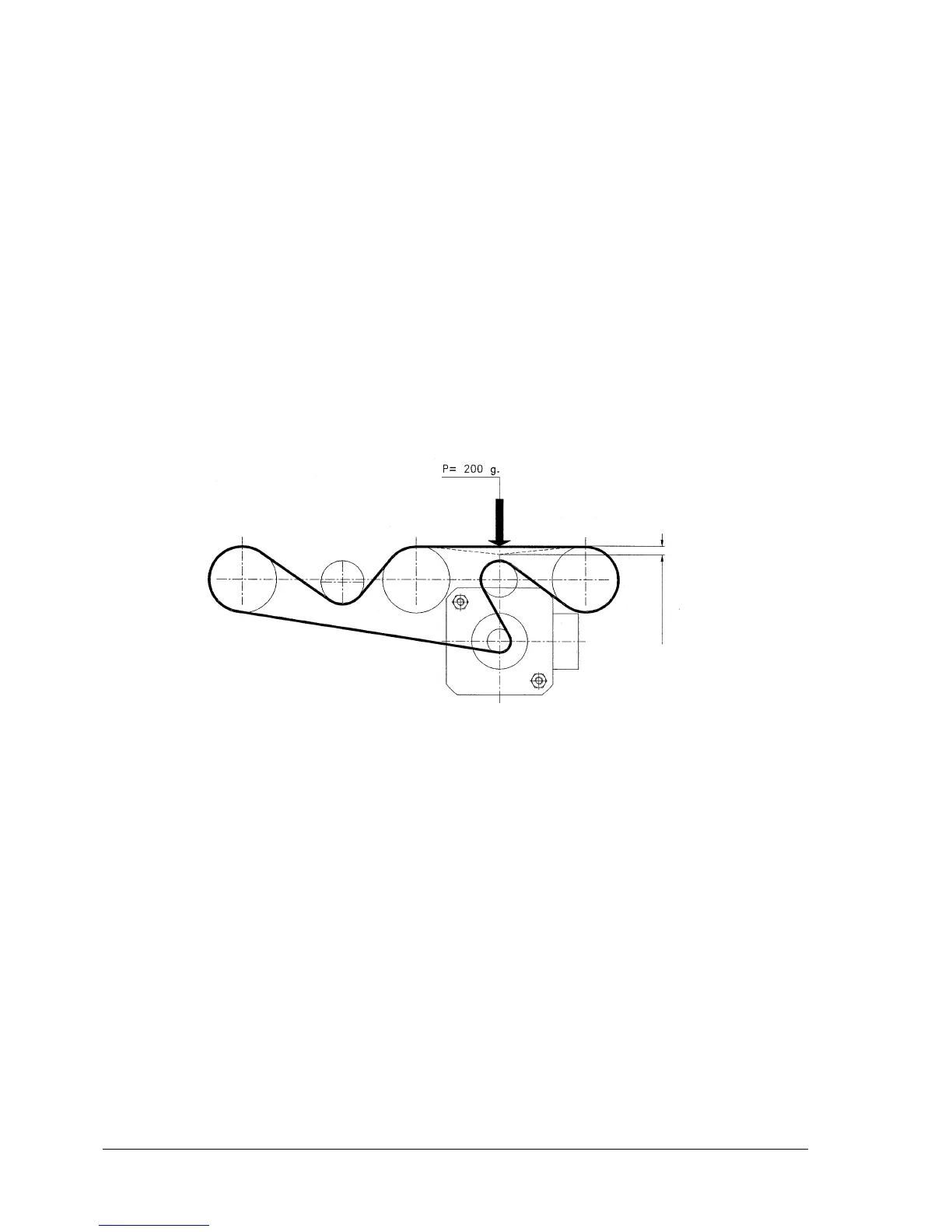

Fig. 8-1
F = 2/3 mm
