3.7 OPERATING PROCEDURES
3.7.1 DOCUMENT INSERTION WITH AUTOMATIC ALIGNMENT
The front shelf on the case helps the inspection of the document into the machine.
- With the printer powered, place the document at the center of the front slot and insert it into the feed
slot.
- Let the document go as soon as the automatic alignment system starts operating.
- Before inserting a passbook, fold it along its spine so that it remains fully open in a horizontal
position and check that the pages are not folded or torn to avoid a bad quality print and creasing
of the page when inserting.

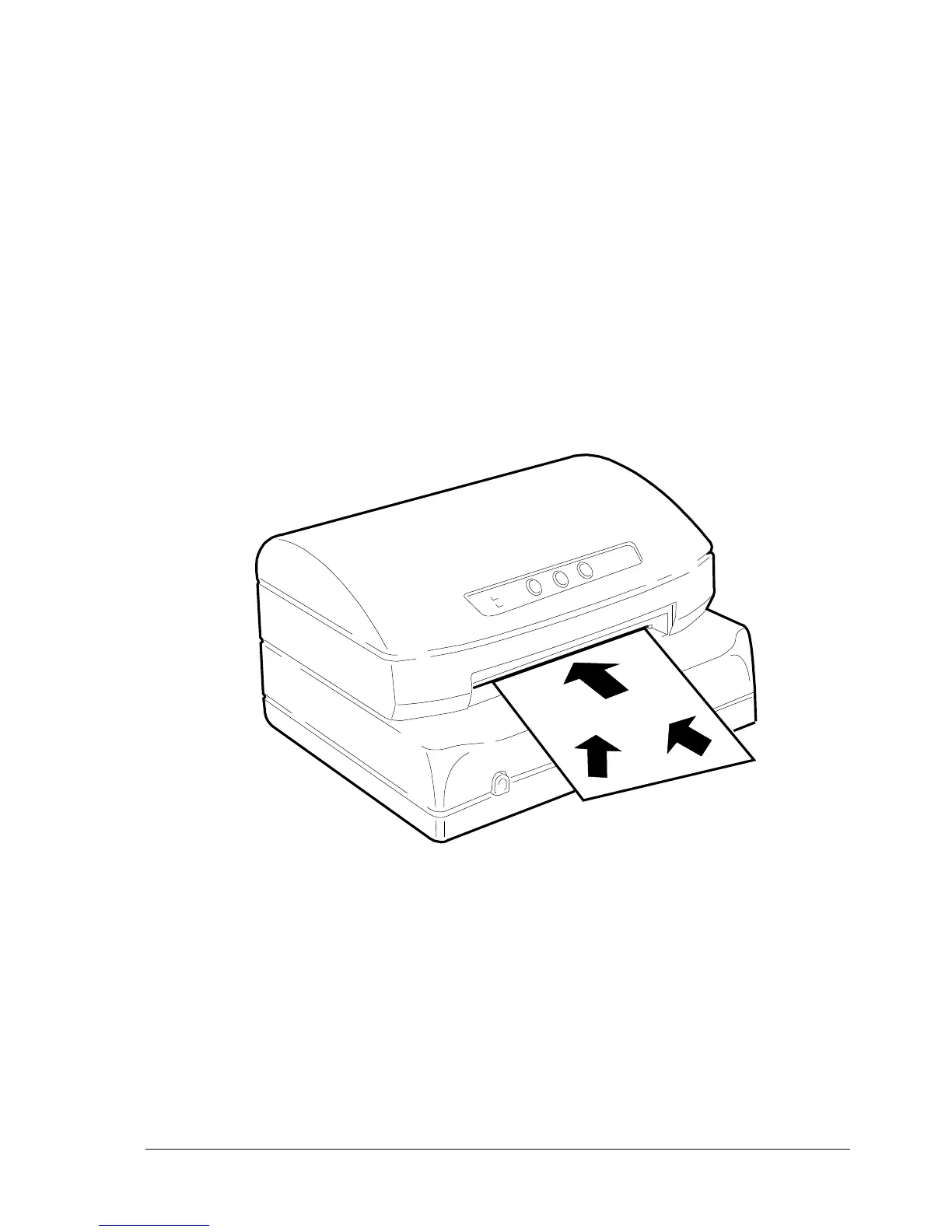

Fig. 3-6 Automatic Document Insertion
