Olivetti PR2 - Setup Flow Chart: Olivetti and IBM Menus

Service Manual
683311W
4-5

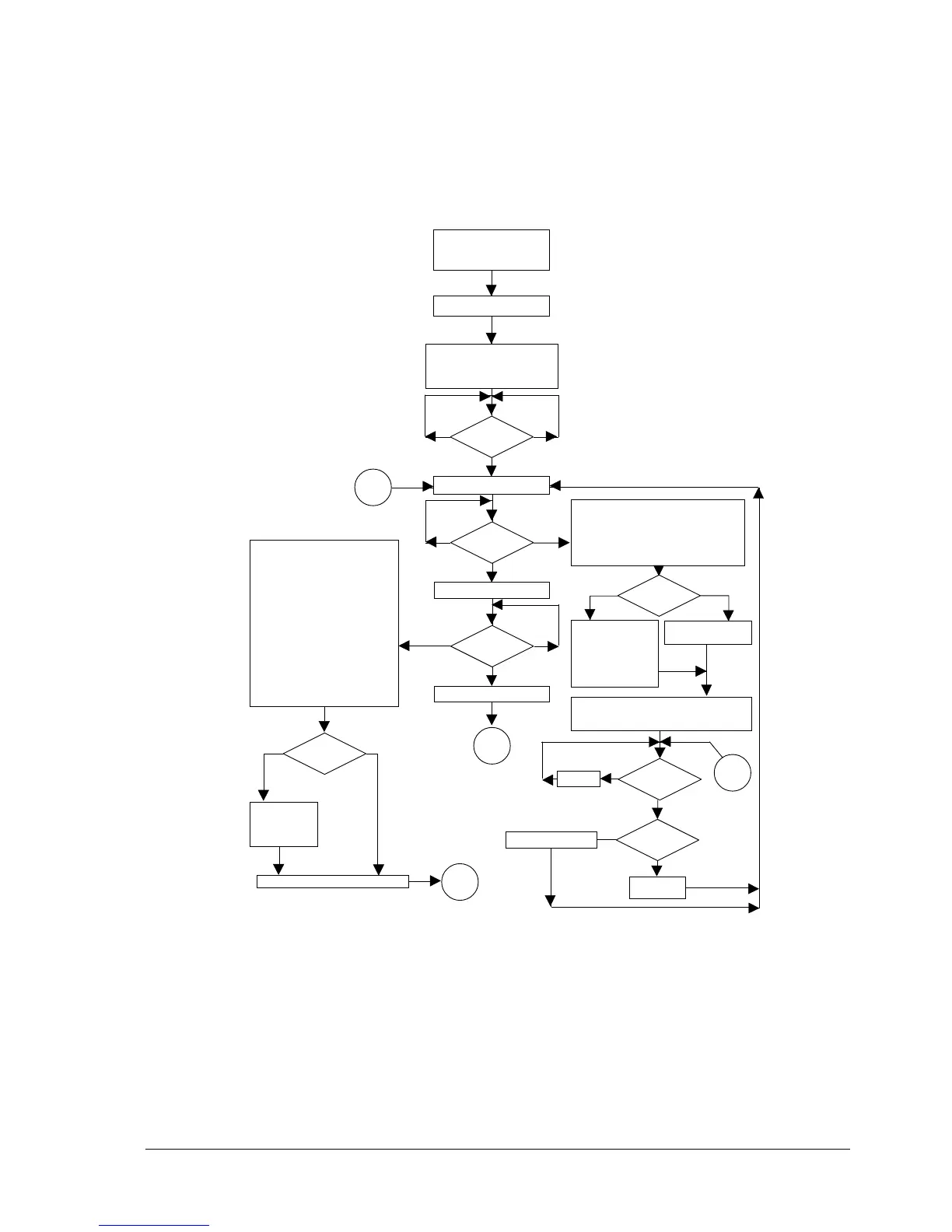

SET-UP FLOW CHART
KEY
IBM MENU
KEY
OLIVETTI MENU
KEY
CONFIGURATION MODE
STATION 1=CONFIRM
STATION 2=SKIP
PRESS LOCAL TO CONTINUE
PRESS ST1, ST2 AND
POWER ON THE PRINTER
ST 1 ST 2
LOCAL
Printing
Printing
ST 2
LOCAL
ST 1
Printing
ST 1
ST 2
Printing
LAST
CHARACTER
PRINTED
A
Y/N
Printing
B
C
STORAGE
Y
N
KEY
ST 1
ST 2
LOCAL
Printing: Configuration Mode
EMULATION: OLIVETTI
EMULATION SELECTION: TEMPORARY
DRAFT SPEED: NORMAL
LQ TYPE: NLQ1
PAPER WIDTH: FIRST LINE
BUZZER: Y
BAUD RATE: 9600
BIT/CHAR: 8
PARITY: NONE
STOP BIT : 1
DSR: Y
DCD: Y
STROBE ACTIVE
ON RISING EDGE: Y
INTERFACE
PAPER EDGE DETECTION: N
SPECIAL FORMS: N
SAVE PARAMETERS: Y
RS232 PARALLEL
Printing: IBM Menu
PNS
SELECTION
N
PNS # 3519: N
PNS # 4192: N
PNS # 4411: N
PNS # 4501: N
Y
A
INSERT AN A4 PAGE
SAVE PARAMETERS: Y
PASSBOOK: Y
BINDING:VERTICAL
SIDE: L
CHAR SET: PC
437
PC TABLE: TABLE 2
CHAR DEFINICTION: DRAFT
CPI: 10
LF+CR: N
CR+LF: N
ZERO SLASH: N
LINE LENGTH: 80
FORM LENGTH: 12
BOTTOM MARGIN IBM-PP LIKE: Y
TOP MARGIN IBM-PP LIKE: Y
NOT STORE
