Service Manual
683311W
9-13
9.2.11 DISASSEMBLING/REASSEMBLING THE REAR PHOTOSENSOR
- Remove the mechanical assembly (section 9.2.3)
- Remove the rear protection shield after removing the two screws (1)
- Remove the rear photosensor flat cable by releasing the two plates (2) that are snapped into the
plastic supports.
1
22

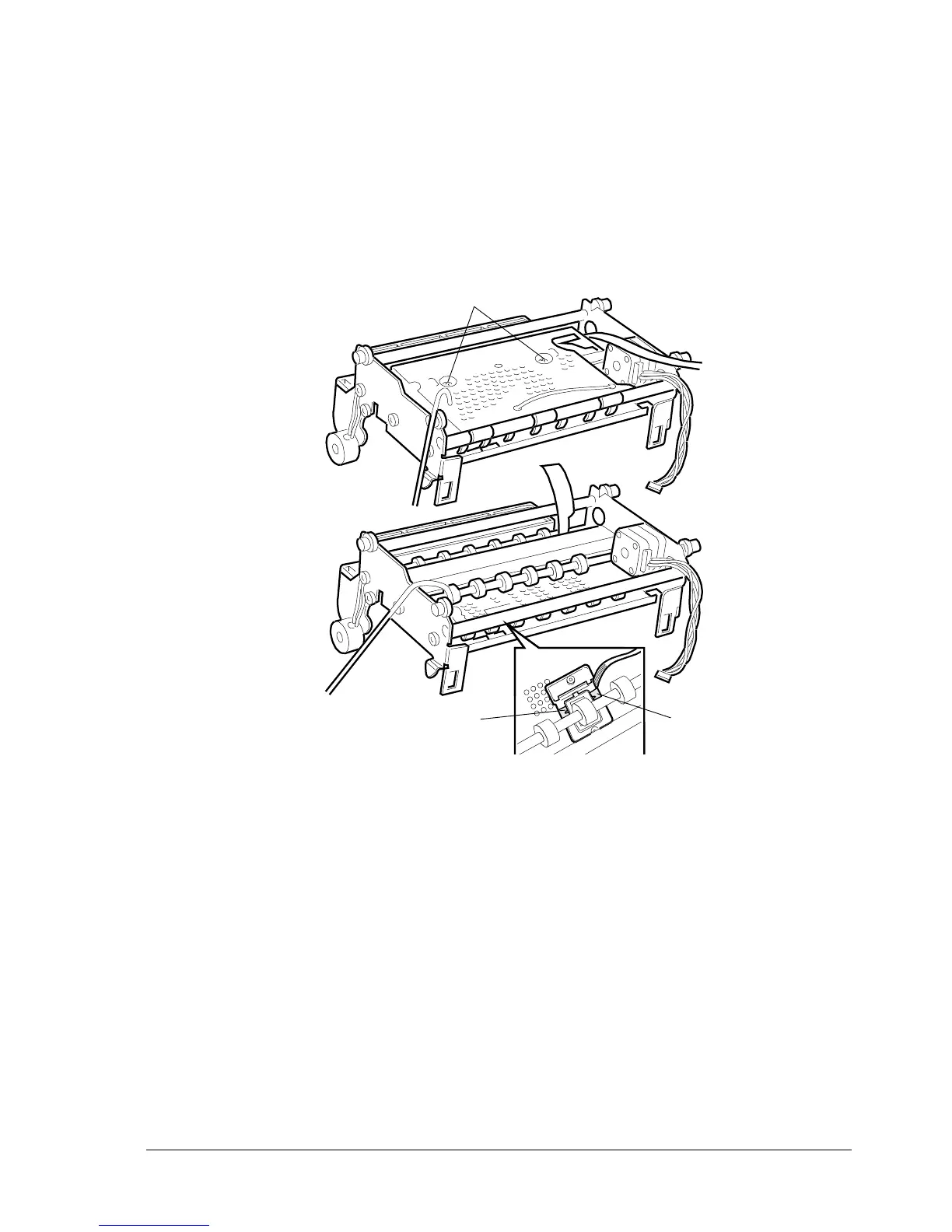

Fig. 9-12
Note: If the photosensor is replaced, proceed with adjustment 4.4. (Photosensor Adjustment)
at the end of reassembly.
