Service Manual
683311W
8-7
8.1.6 TAB ADJUSTMENTS
MACHINE CONDITION:
The upper mechanical assembly must be raised.
OBJECTIVE ADJUSTMENT:
Tab (1) must come into contact with print bar (2), and simultaneously the balancer (3) must come into
contact with tab support shaft (4).
PROCEDURE:
Loosen screw (5) and position the parts as explained. Tighten the screw.

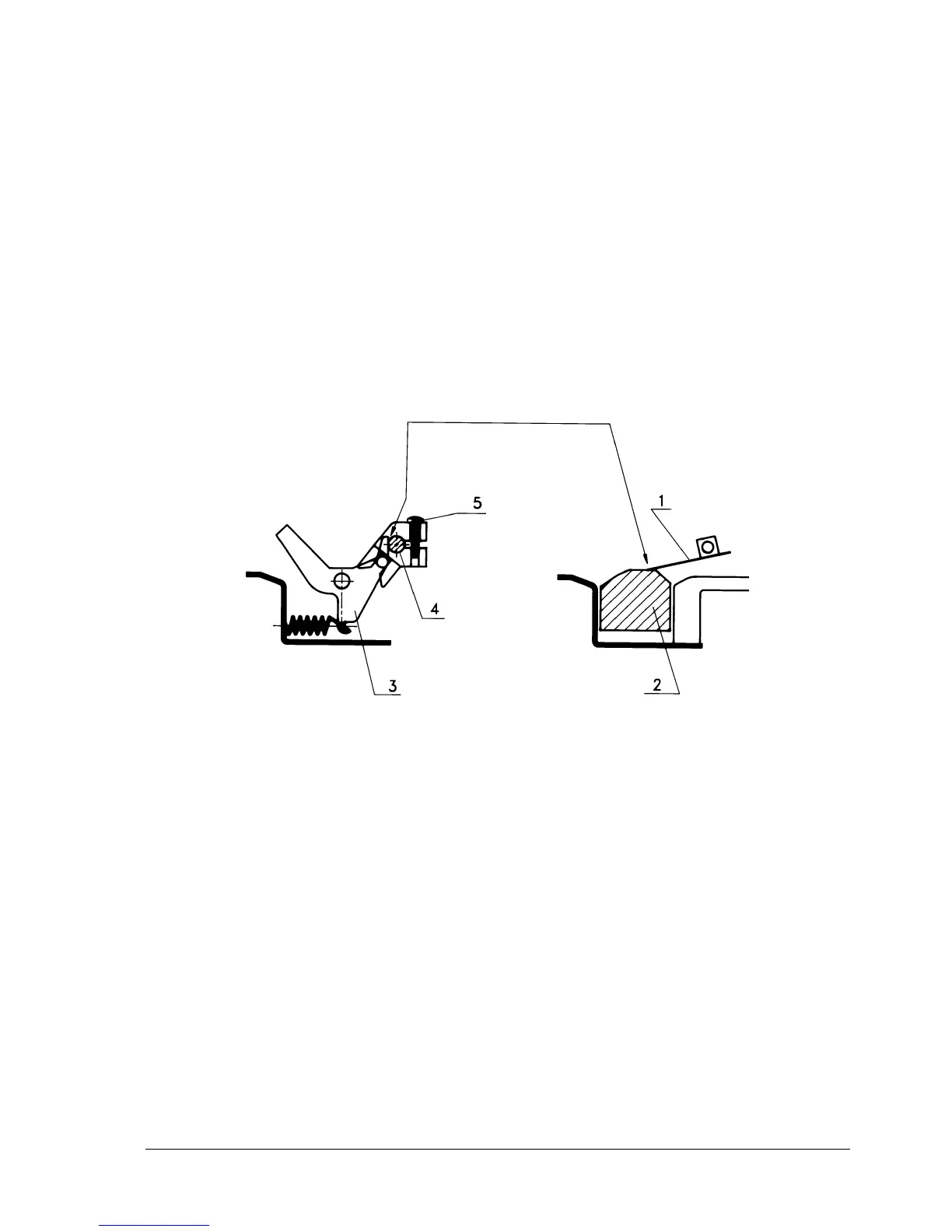

Fig. 8-6
Note: Carry out this procedure after adjusting the print bar (8.1.5).
IN CONTACT
