Olivetti PR2 - Basic Machine Disassembly: Fuse Replacement

Service Manual
683311W
9-17
9.2.15 REPLACING THE FUSE
- Remove the mechanical assembly (section 9.2.3)
- Remove the cover of the power assembly after removing the two screws (1) and loosening the two
screws (2)
- Replace fuse (3).
3

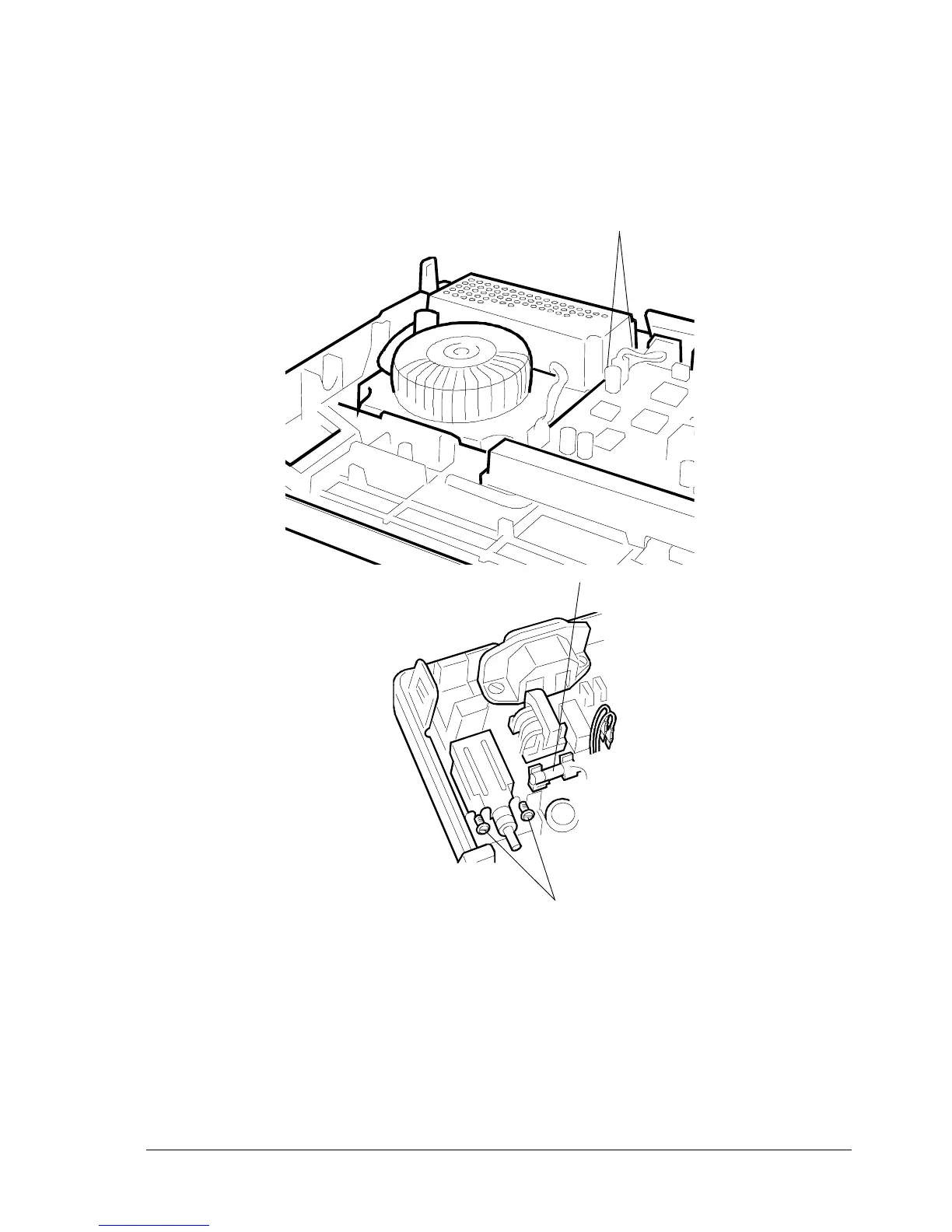

Fig. 9-16
Note: Make sure that the new fuse has the same electrical characteristics as the one replaced.
1
2
