Olivetti PR2 - Print Test Contents and Analysis

Service Manual
683311W
3-5
3.3.2 PRINT TEST CONTENTS
The test gives the following Information:
- The firmware release installed on the boards in the machine.
- A visual verification of the functions of the print head’s 24 needles
- The emulation currently used
- The current printer parameters and options, when installed.
On this page (Fig. 3-3) an example is given of the information supplied by the test. The contents of
the print test depend on the FW release installed on the PR 2.

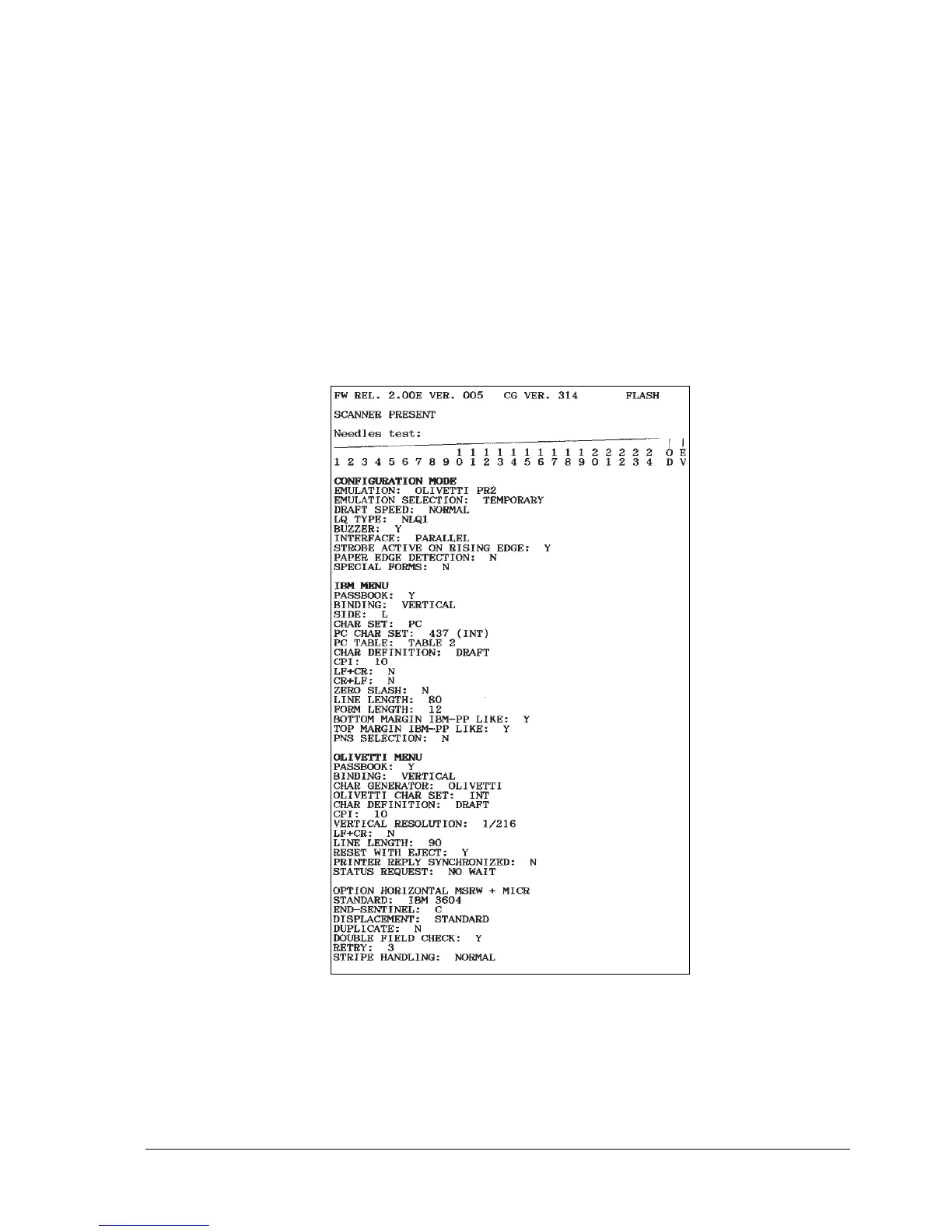

Fig. 3-3 Example of Print Test
