4.6.9 SCANNER AND LEFT-MARGIN CALIBRATION
Proceed as follows to make this adjustment:
1. Power on the printer with its cover open and while holding down the three console keys.
2. Wait for an acoustic signal to indicate that the printer has switched into the adjustment mode and
close the cover.
3. Press the "Station 2" key.
4. Insert an A4 sheet of paper at least 230 mm wide and align it to the left.
5. If the calibration procedure is not successful, press the "Station 2" key to enter the default value;
the sheet is ejected and the system will return to the main menu.
6. Repeat the procedure from step 1.

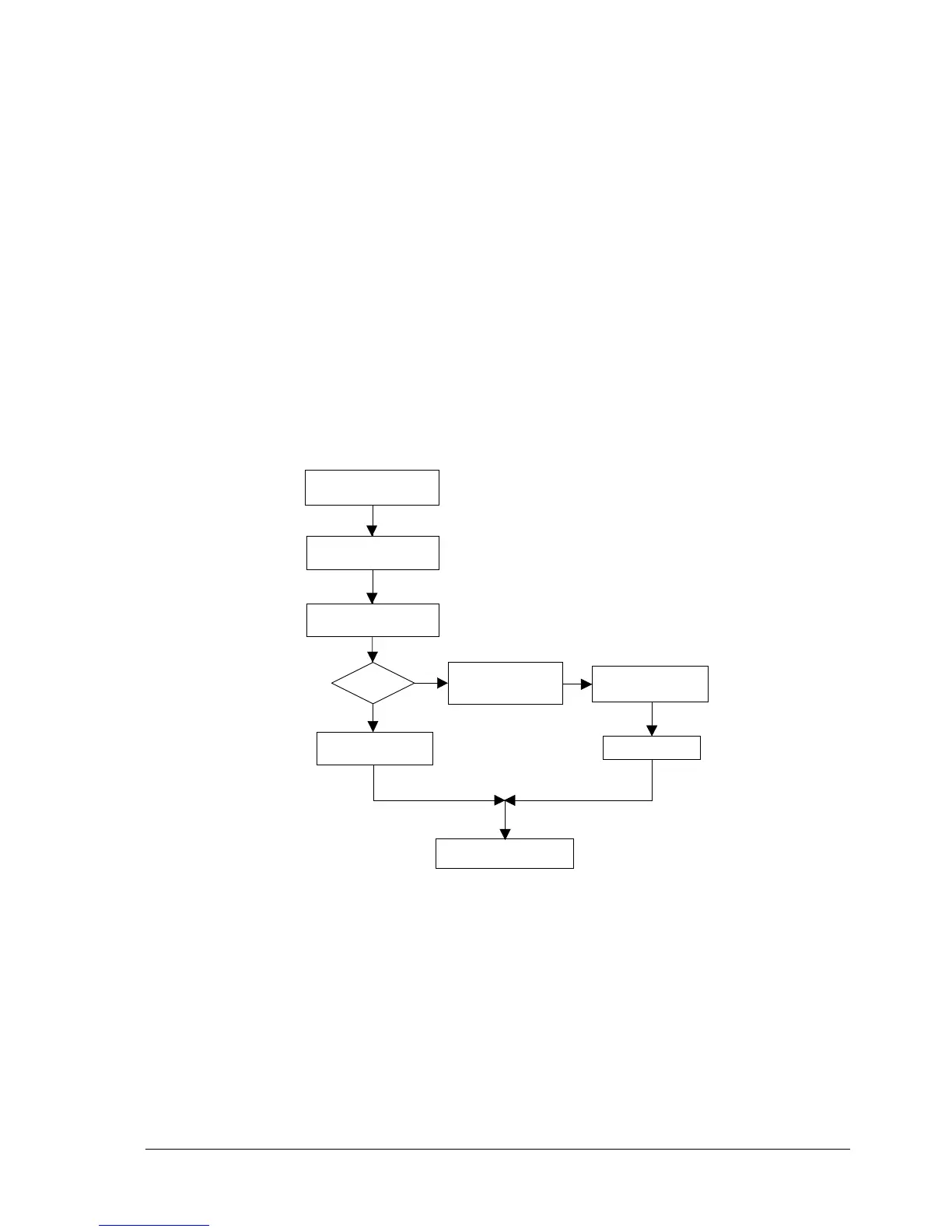

COVER OPEN
MACHINE POWERED ON
LED STATION 2 ON
CALIBR.
NOT OK?
YES
NO
INSERT AN A4 SHEET, 80g
minimum 230 wide, and align to
the LEFT
CALIBRATION OK
SHEET EJECTED
Press the STATION2 button
to enter the default value
READY
LOCAL
STATION1
flashing
RETURN TO THE MENU
SHEET EJECTION
