Olivetti PR2 - Paper Photosensor Adjustment

Service Manual
683311W
8-5
8.1.4 ADJUSTING THE PAPER PHOTOSENSOR
MACHINE CONDITION:
Unimportant.
OBJECTIVE ADJUSTMENT:
The correct positioning of the paper photosensor on the print head.
PROCEDURE:

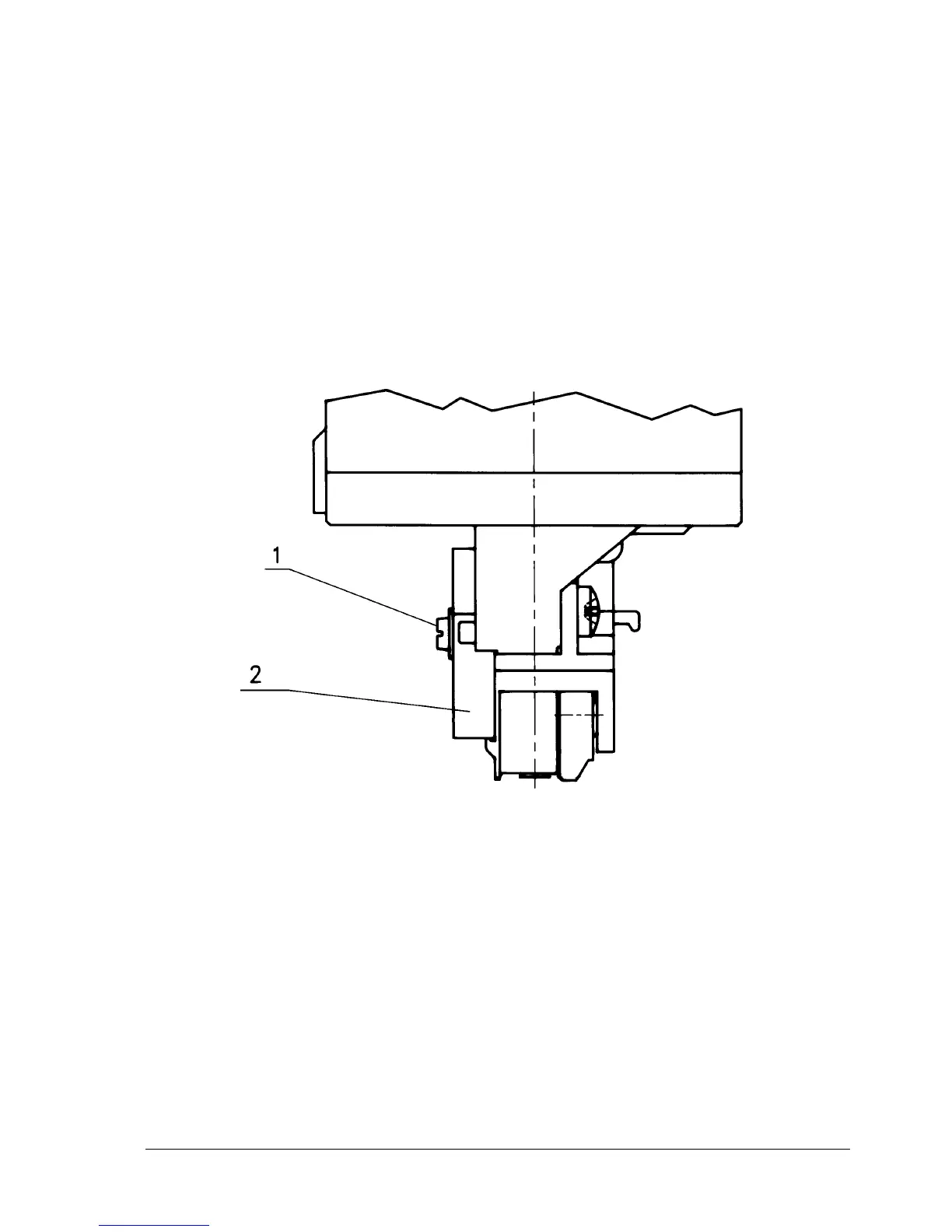

By means of screw (1) secure photosensor (2) onto the print head, tight against the reference profile
obtained on the ribbon protection fin.
Make sure that the component rests on the entire width of the reference profile.
Fig. 8-4
Note: Carry out this procedure after adjusting the distance between the ribbon protection fin and
needles (8.1.3).
