2.1 POWER SWITCH
The printer has a bipolar power switch located on the power supply board immediately below the
power socket.The switch on/off command is sent through a rod that crosses the printer longitudinally.
2.2 CONSOLE
The machine console has five LEDs and three keys.

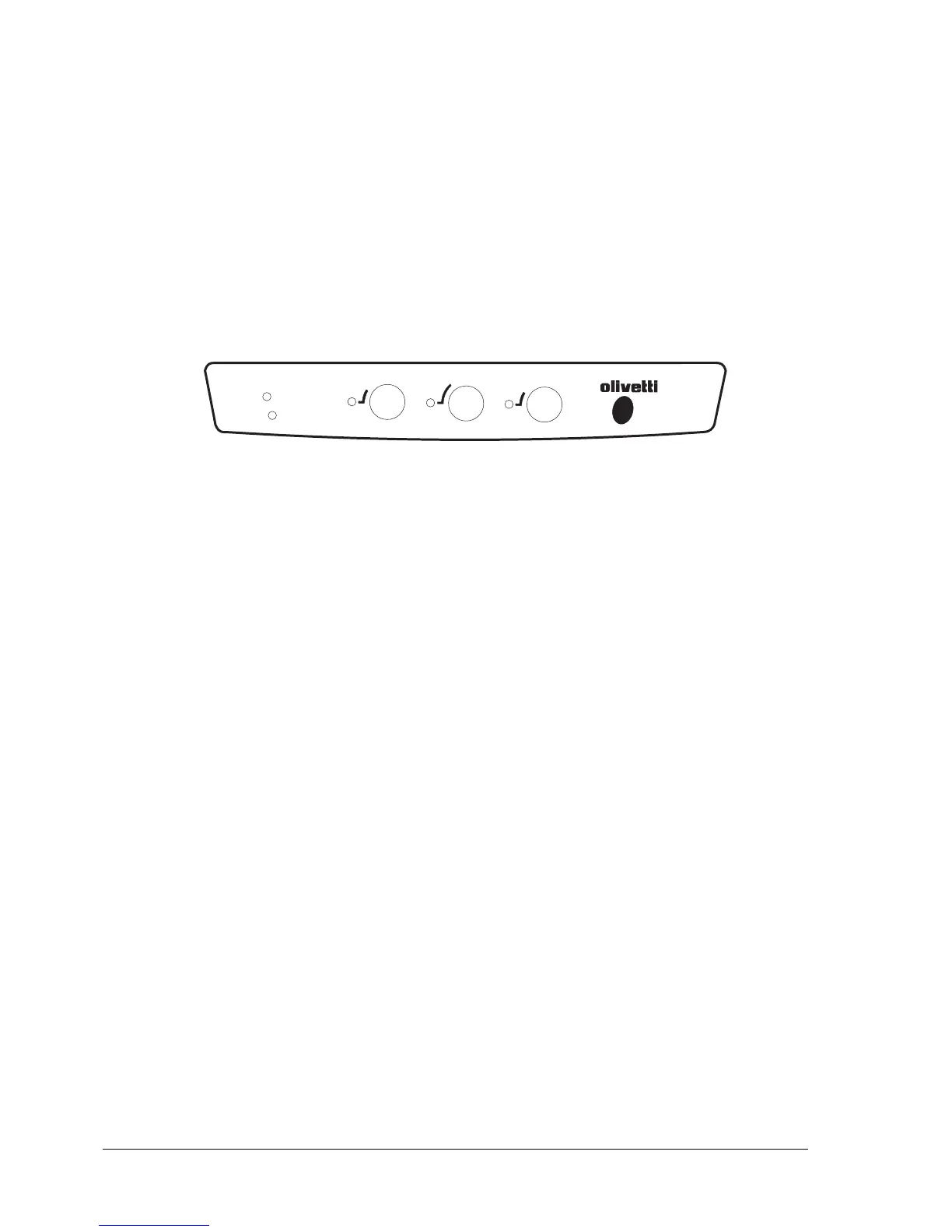

Fig. 2-2 Console
The console also includes a circuit breaker (Dry-reed) that informs the board logics when the
machine’s top cover is opened.
During the machine set-up (section 4.3) or other set-up (section 4.4), the keys are assigned different
meanings for the various procedures.
S
t
a
t
i
o
n
1
S
t
a
t
i
o
n
2
L
o
c
a
l
E
j
e
c
t
N
L
Q
Ready
ON
PR
2
