683311W
9-6
9.2.4 DISASSEMBLING/REASSEMBLING THE PRINT HEAD FLAT CABLE
- Remove the printer case (section 9.2.1)
- Lift the entire mechanical assembly frontwards off the base of the printer and partly tilt it so as to
have access to the connectors on the main board
- Disconnect the flat cables that connect the print head to the main board
- Release the flat cables from the cable clip (1) located on the left-hand side of the frame
- Remove screw (2) that secures the rear cable clip (3), turn this clip and release the flat cables
- Turn upwards the flat cable support attached to the print head (4) as far as it goes.
- Disconnect the flat cables from the print head connectors
- Release the flat cables from support (4).
Warning: When refitting the flat cable to the head, make sure that it is secured in place as indicated
in the figure and that it does not interfere with the ribbon rewind gears otherwise it could
be seriously damaged during machine operation.
1
4
3

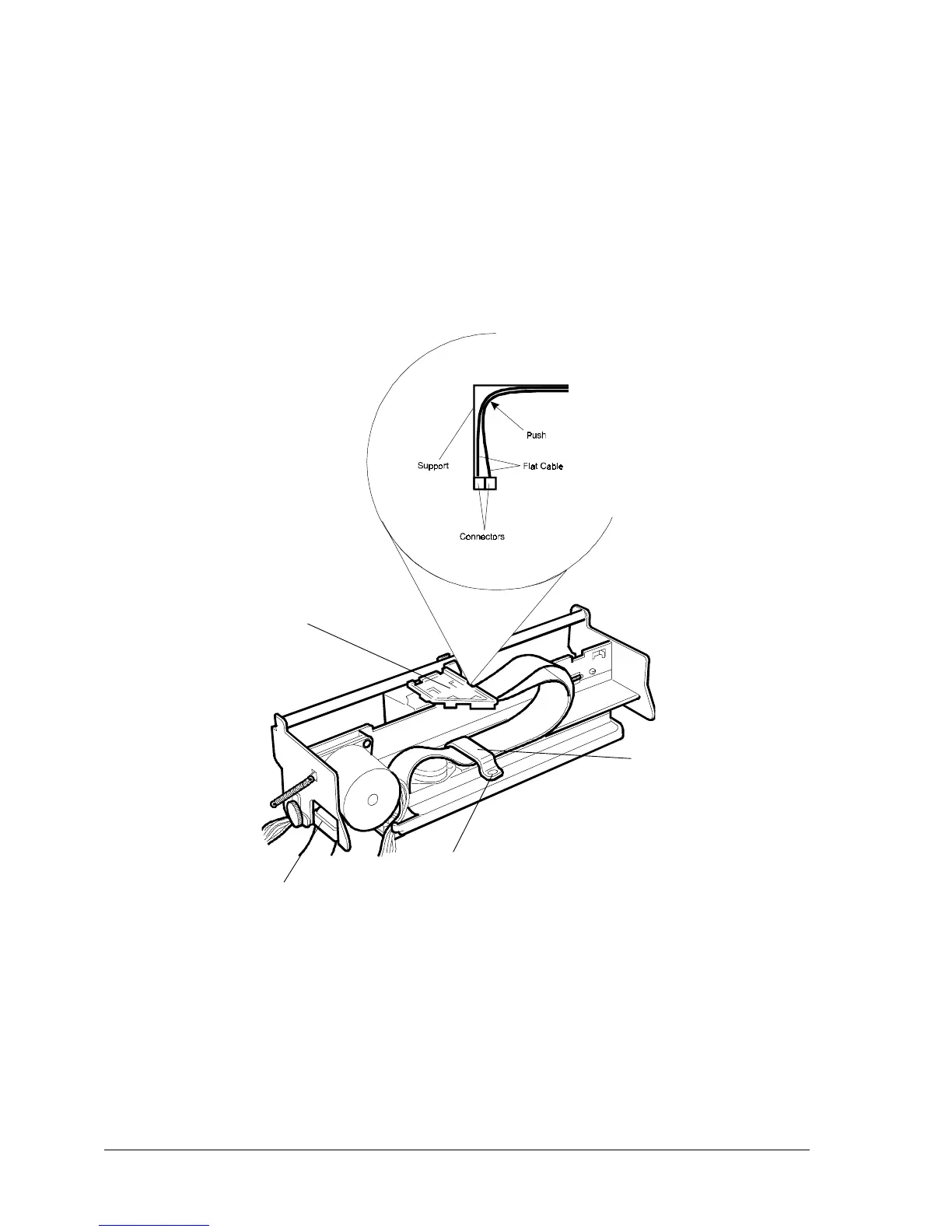

Fig. 9-4
2
