Olivetti PR2 - Disassembly: MICR Head Assembly

683311W
9-20
9.3.3 DISASSEMBLING/REASSEMBLING THE MICR HEAD ASSEMBLY
- Remove the case and assembly (section 9.3.1)
- Loosen screw (1) and free the signals cable
- Loosen screws (2) and remove the MICR head (3).
2
2
1
3

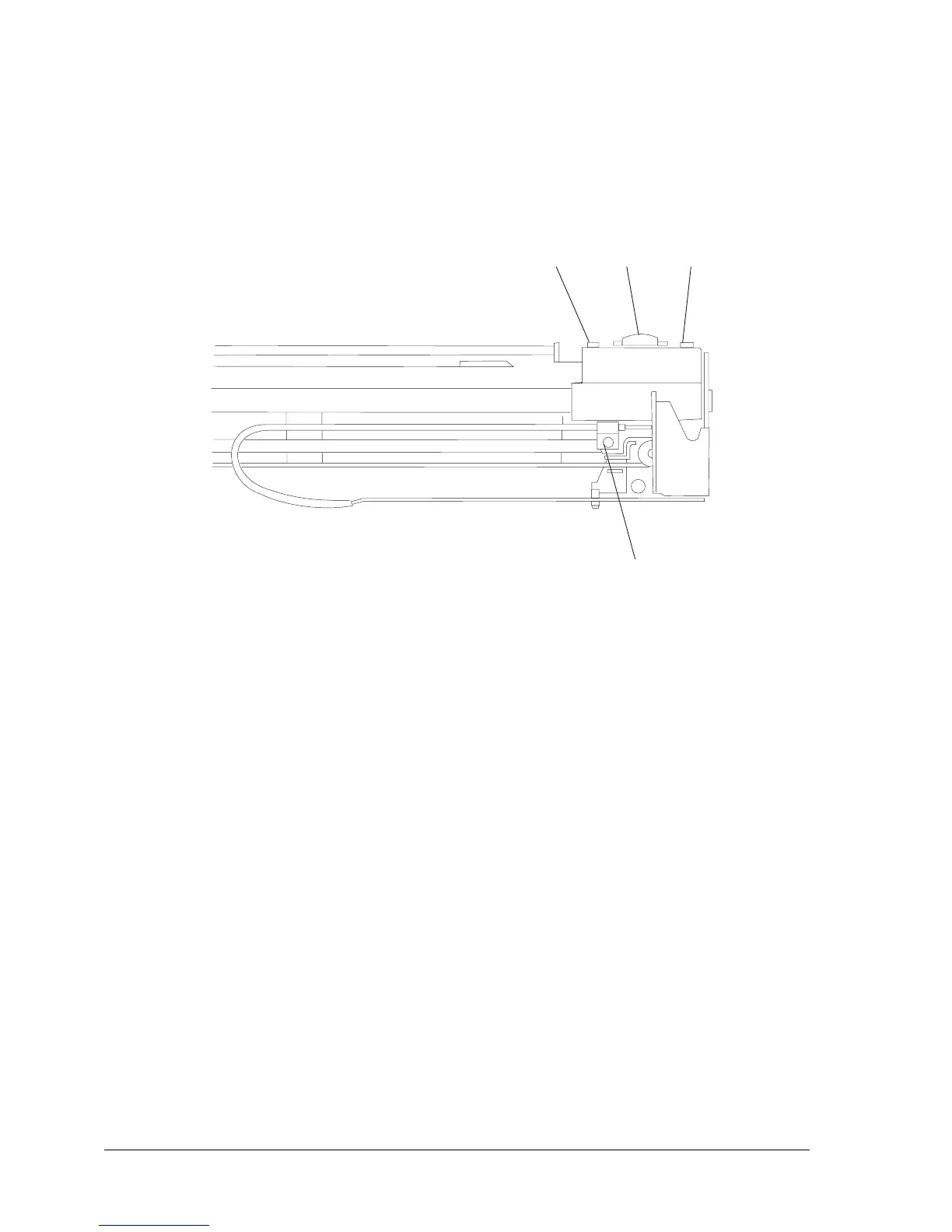

Fig. 9-19
