Olivetti PR2 User Manual

Service Manual
683311W
9-21
9.3.4 DISASSEMBLING/REASSEMBLING THE VERTICAL MAGNETIC HEAD
- Remove the mechanical assembly (section 9.2.3)
- Separate the lower mechanical assembly from the upper assembly (section 9.2.4)
- Remove the lower protection shield after removing the two screws (1)
- Remove the vertical magnetic head after removing the three screws (2).
2
1

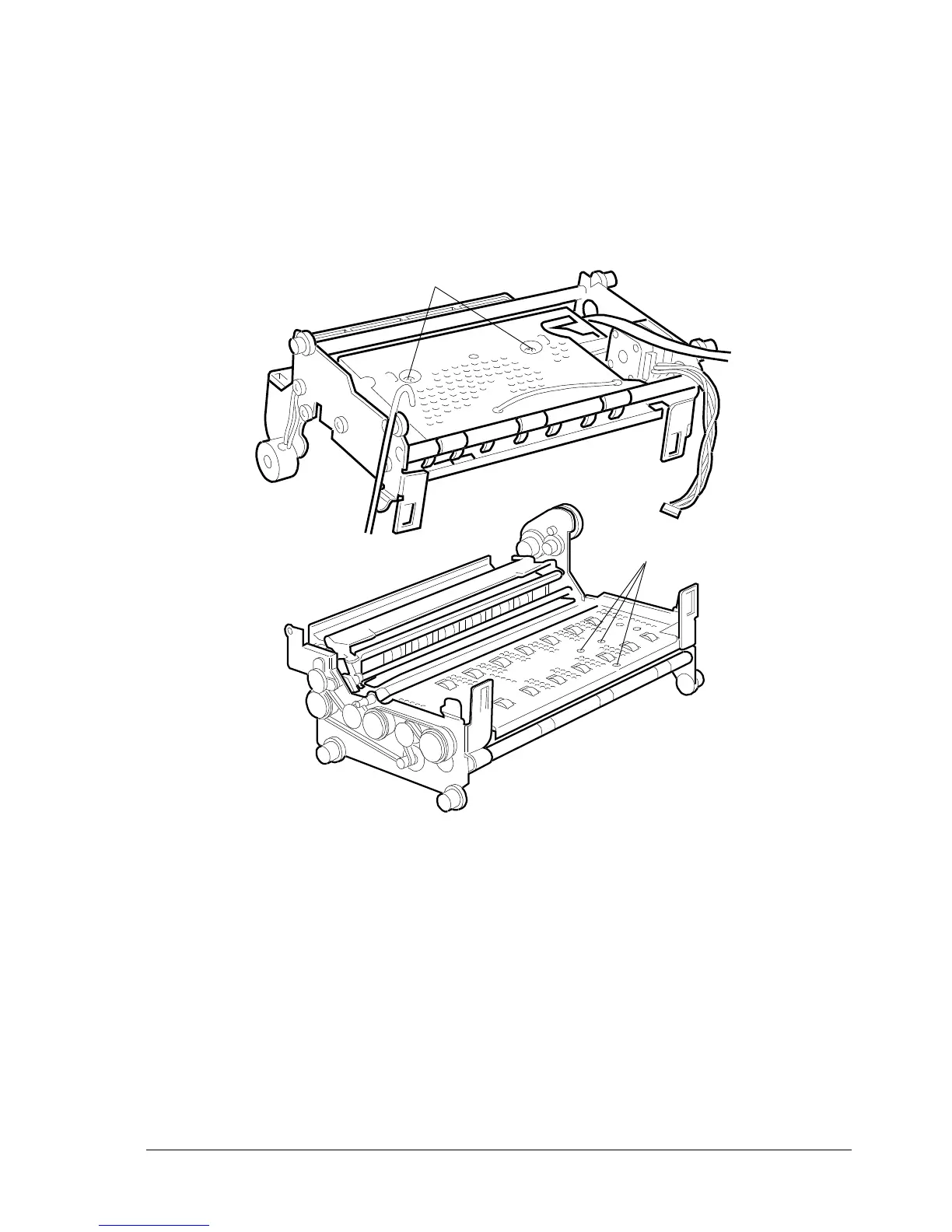

Fig. 9-20
