3.7.2 SAVINGS BOOK INSERTION WITH MANUAL ALIGNMENT
- The savings book must be aligned manually if the printer is equipped with the vertical magnetic
band device option and if the book has a magnetic strip on its cover.
- During insertion, the savings book with magnetic strip must be placed against the side of the
insertion slot (right or left depending on the magnetic installed in the printer).
- Place the savings book on the open front shelf with its magnetic strip facing downwards. Then,
move against one of the sides of the insertion slot and the printer will automatically capture it.

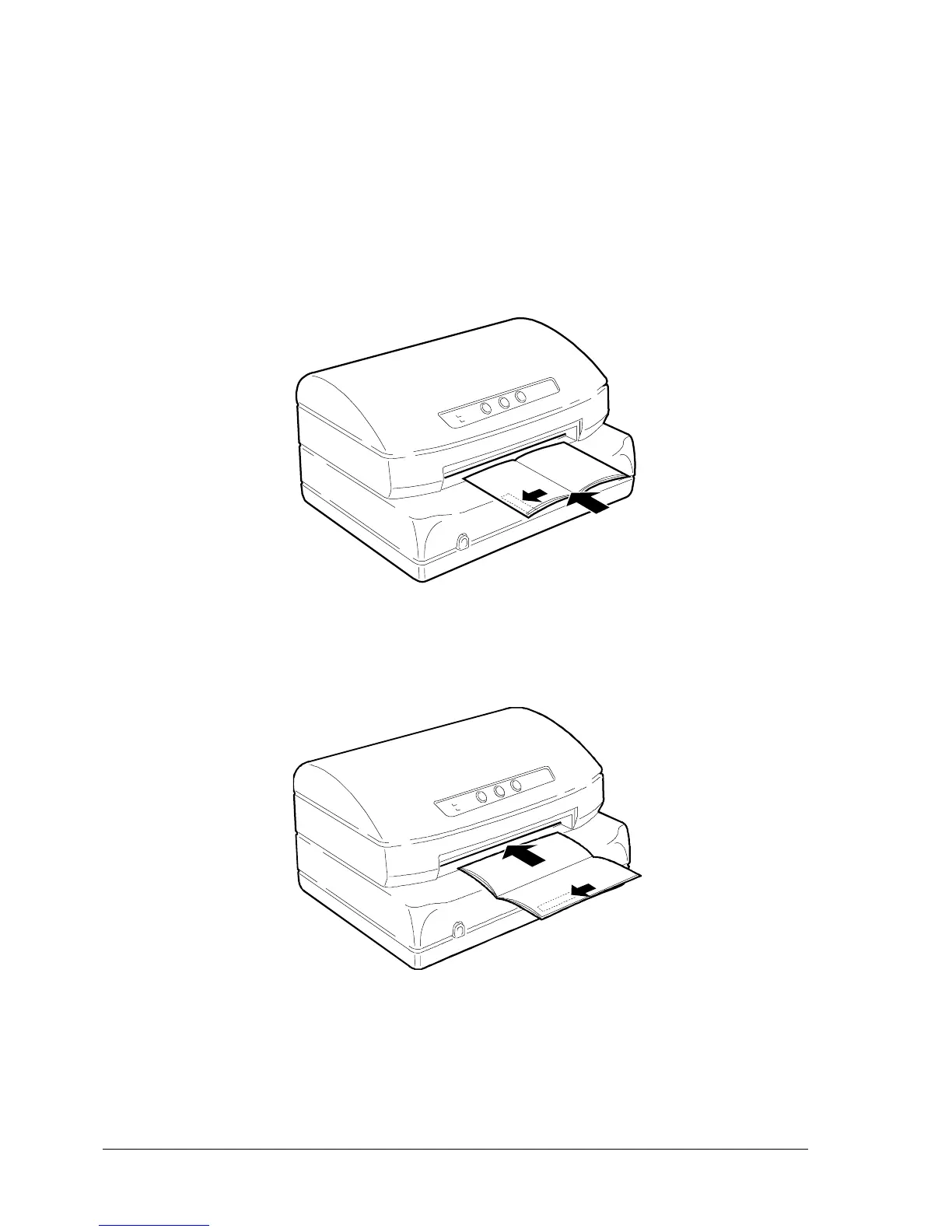

Fig. 3-7 Savings Book Manual Insertion
Fig. 3-8 Savings Book Manual Insertion
- The savings book will have to be positioned within 3 mm from the right or left sides of the insertion
slot; if it is not, upon reception of the magnetic stripe read/write command the printer will inform the
PC of a bourrage condition.
