6.5 ALIPR2 BOARD
Two codes can be assigned to the ALIPR2 board depending on the line voltage (110-120 V or 220-
240 V) at which they are set. Also the value of fuse F1 depends on the line voltage.
6.5.1 BOARD VIEW AND LOCATION OF COMPONENTS

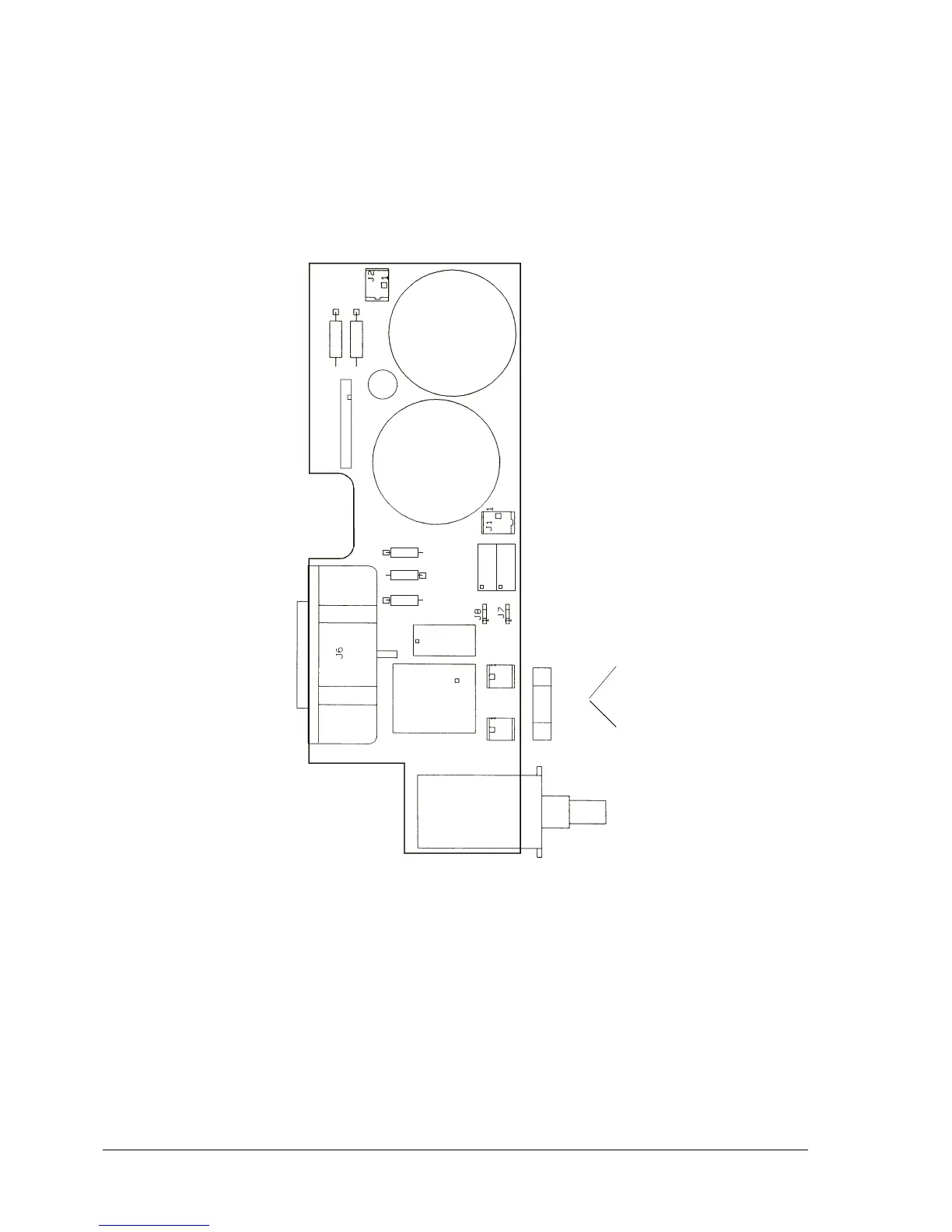

Fig. 6-6 ALIPR2 Board
F1
220-240 V 1.6 A
110-120 V 2 A
