Olivetti PR2 - Carriage Movement Belt Tension Adjustment

Service Manual
683311W
8-11
8.1.10 ADJUSTING THE TENSION OF THE CARRIAGE MOVEMENT BELT
MACHINE CONDITION:
Unimportant.
OBJECTIVE ADJUSTMENT:
Return pulley support slide pushed by the traction spring towards the outside of the printer.
PROCEDURE:
Loosen screw (1), make sure the slide runs freely and then tighten the screw again.
1

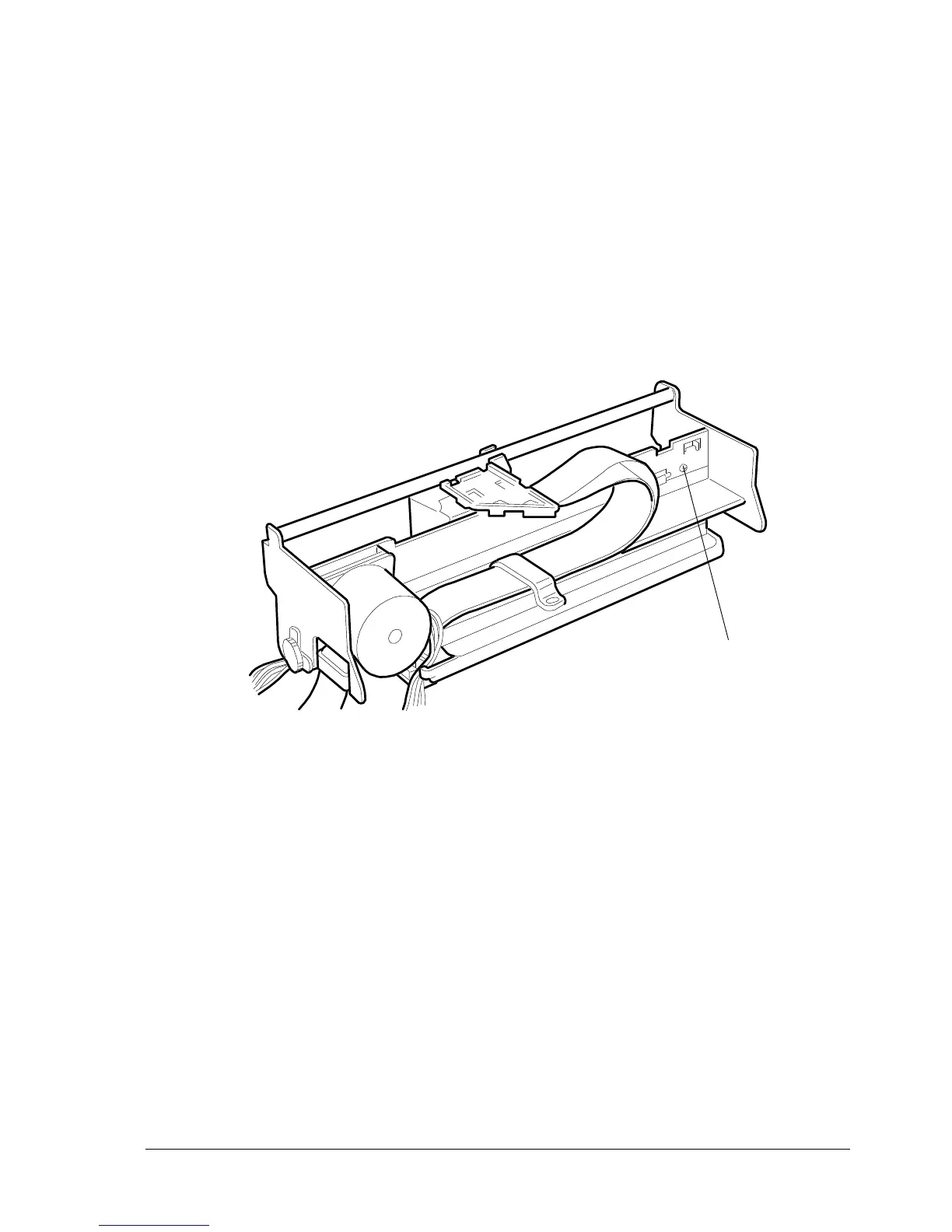

Fig. 8-10
