683311W
1-10
1.7 LOCATION OF MAJOR COMPONENTS

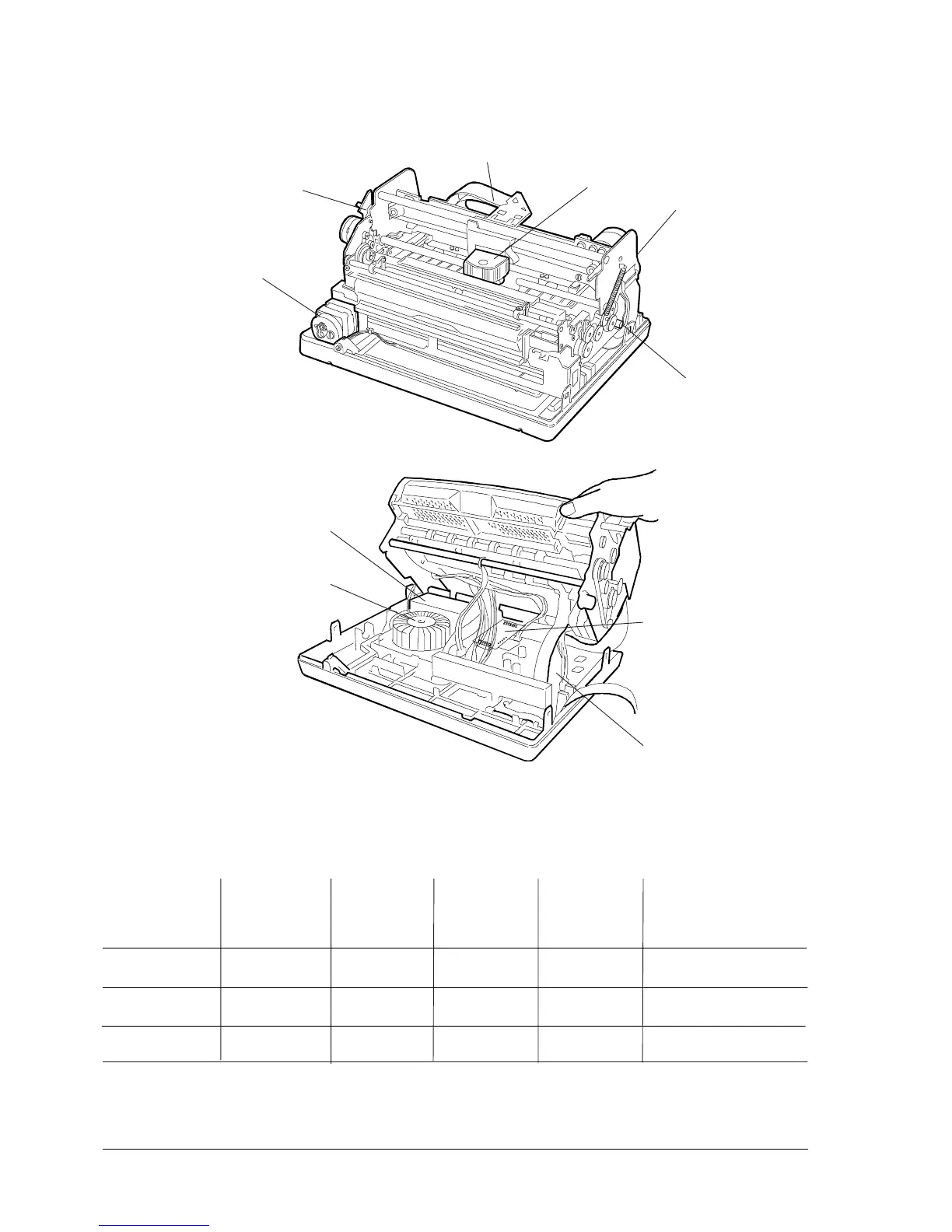

Fig. 1-5 Locating the Major Components
For noise reduction purposes, is used to toroidal transformer equipped with appropriate shield, as
indicated in the following table:
Horiz. magn. Right vert. Left vert. MICR Scanner
device device device Reader
No shield X X
Iron shield X
Mumetal shield X
TRANSPORT
MOTOR
(PINION) ROLLERS
MOVEMENT MOTOR
HORIZONTAL
MAGNETIC
BAND DEVICE
MOTOR
SERVICES MOTOR
HEAD FLAT
CABLE
PRINT HEAD
BA PR 2 BOARD
ALI PR 2 BOARD
TRANSFORMER
MAGNETIC OPTIONS
BOARD
X
