Olivetti PR2 - Basic Machine Disassembly: Print Head Movement Motor

683311W
9-10
9.2.8 DISASSEMBLING/REASSEMBLING THE PRINT HEAD MOVEMENT MOTOR
- Remove the upper mechanical assembly (section 9.2.4)
- Loosen screw (1) that secures the return pulley support slide and release the slide movement belt
from the motor pinion
- Loosen the three special securing screws (2) and remove the print head movement motor being
careful not to damage the ribbon feed gears.
1
2

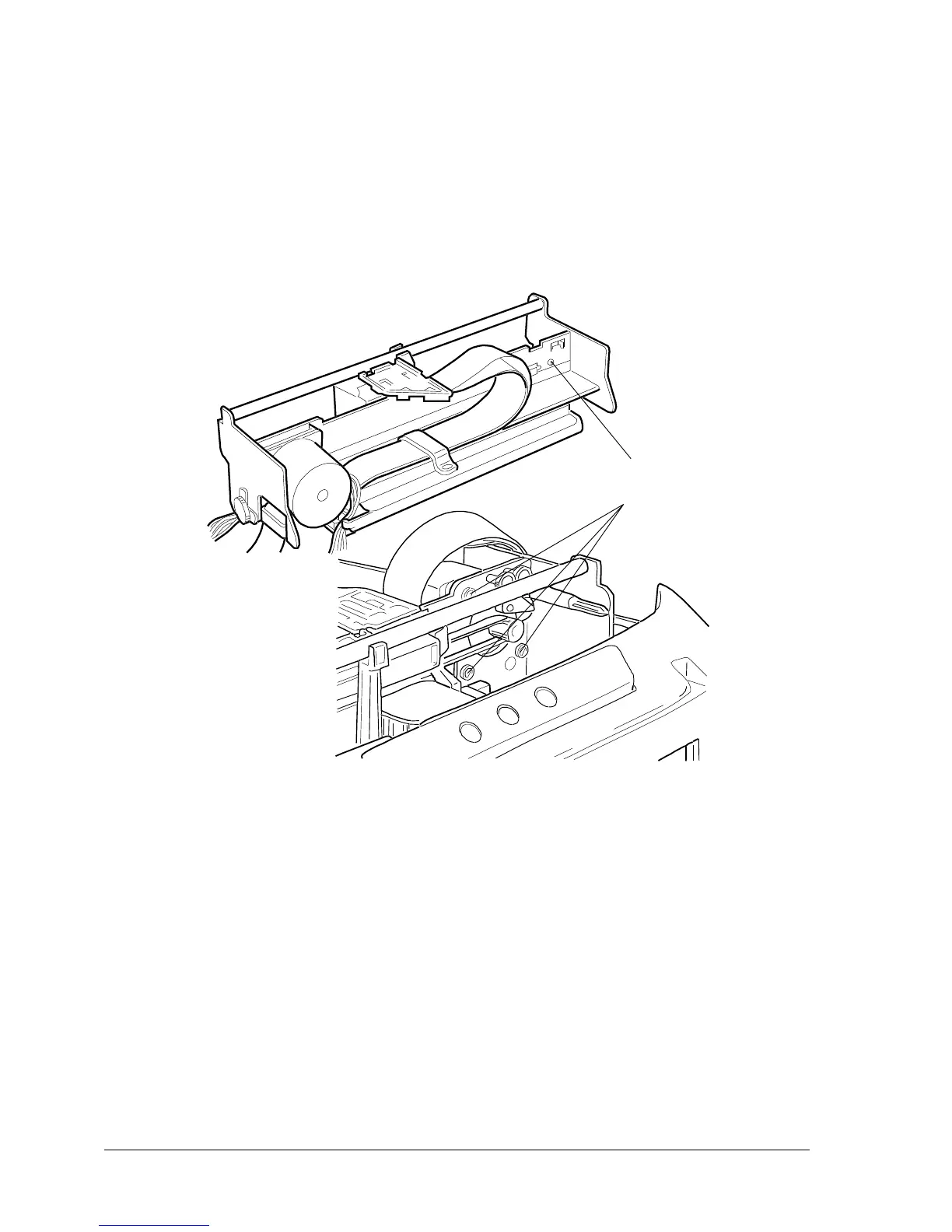

Fig. 9-9
Note: Check the tension of the slide movement belt during reassembly (8.1.10).
