Service Manual
683311W
9-9
9.2.7 DISASSEMBLING/REASSEMBLING THE PAPER FEED MOTOR
- Remove the mechanical assembly (section 9.2.3)
- Loosen the two nuts (1) that secure the motor and release the document feed belt. If the right
vertical magnetic option is present, remove the noise prevnetion metal shield from the motor by
removing its two securing screws
- Remove the nuts and extract the motor.
1

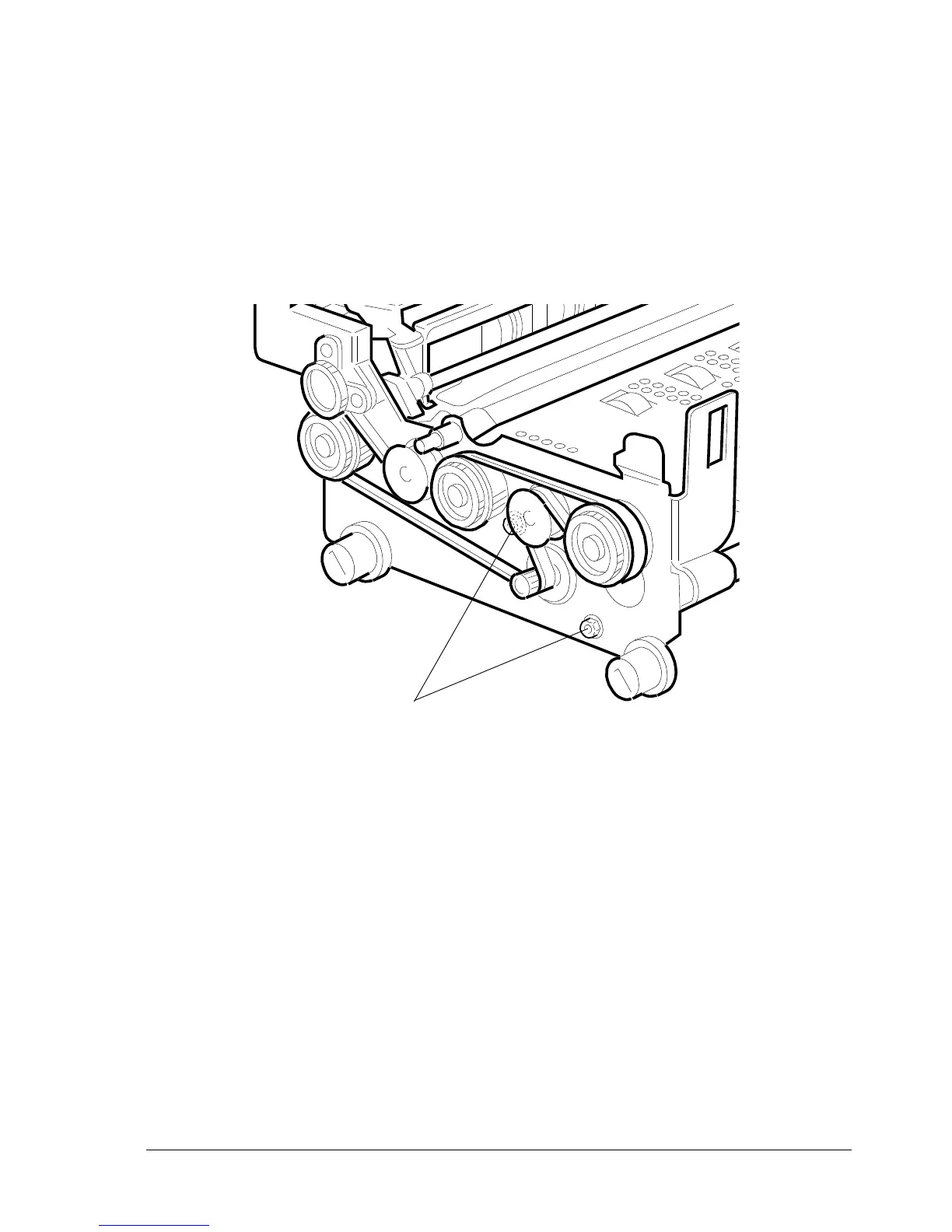

Fig. 9-8
Note: Adjust the tension of the document feed belt during reassembly (section 8.1.1).
