9.2.2 DISASSEMBLING/REASSEMBLING THE CONSOLE
- Remove the printer case (section 9.2.1)
- Lift the entire mechanical assembly frontwards off the base of the printer and partly tilt it so as to
have access to console connector (1) on the main board
- Remove the console after disconnecting the flat cable from the main board.
1

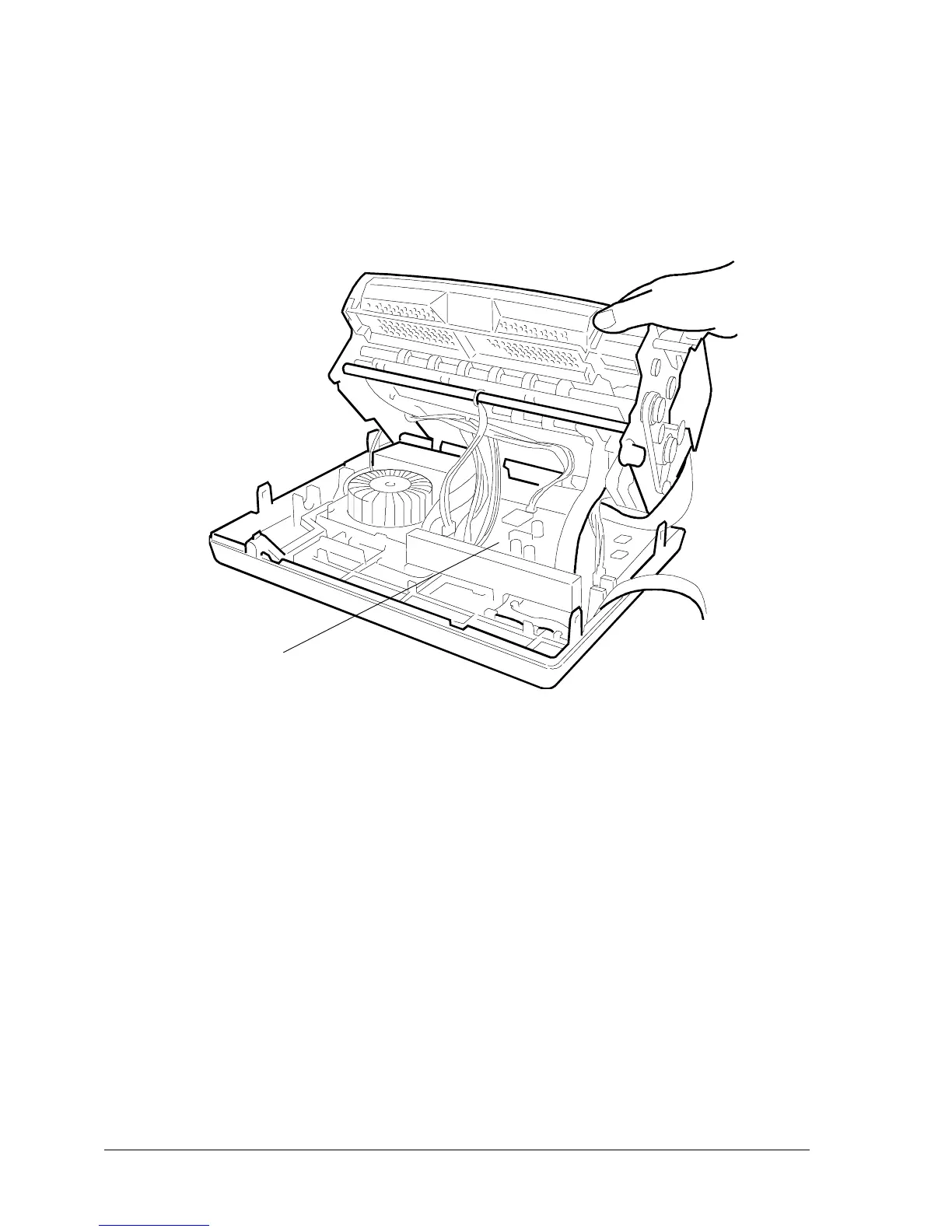

Fig. 9-2
