Service Manual
683311W
9-15
4
4

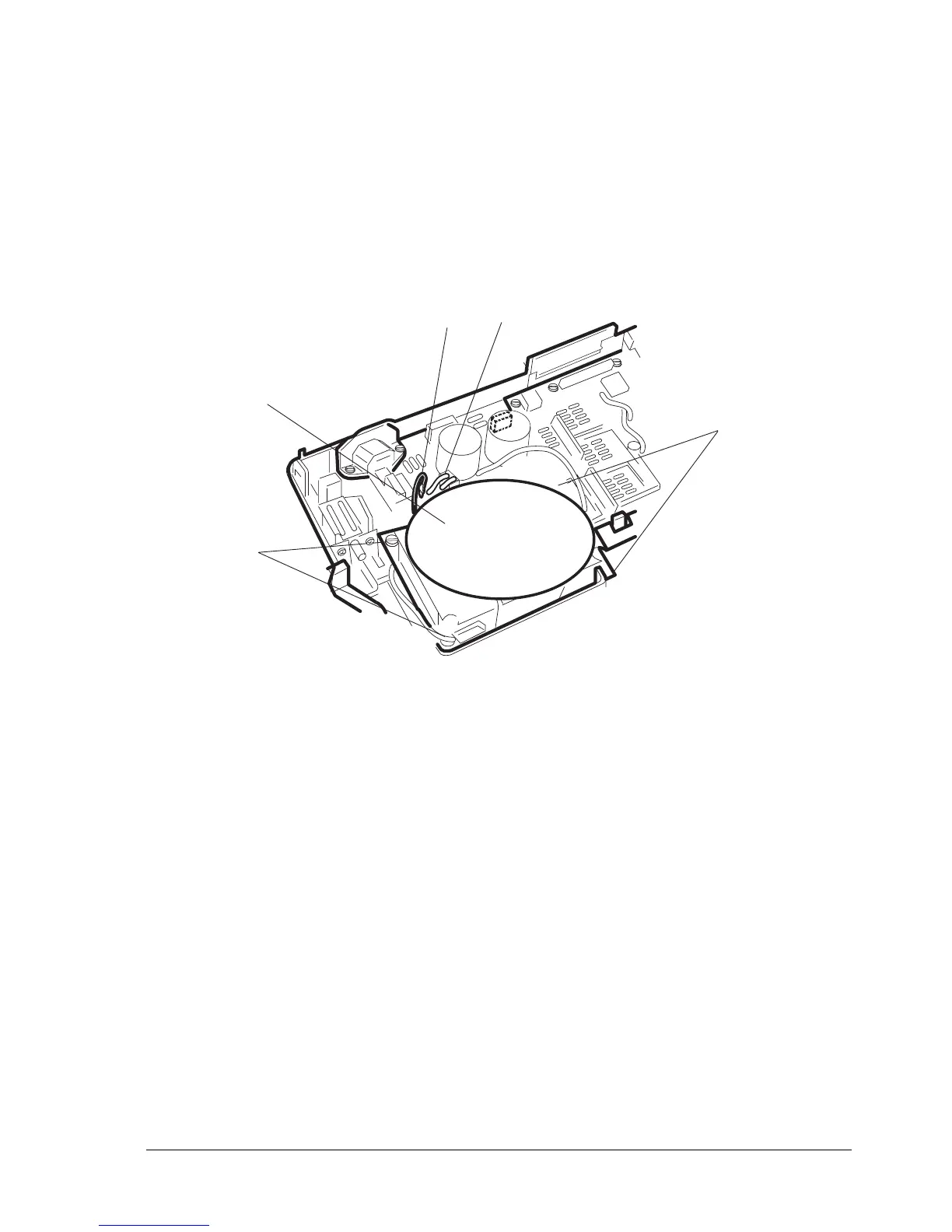

Fig. 9-14
Note: If the transformer is replaced, make sure the new transformer has the same power
requirements as the one replaced.
9.2.13 DISASSEMBLING/REASSEMBLING THE TOROIDAL TRANSFORMER
- Remove the mechanical assembly (section 9.2.3)
- Remove the cover of the power assembly as explained previously
- Disconnect wires (1) and (2) of the transformer windings from the power assembly board
- Remove the two screws securing the shield (3) and remove it (with the magnetic option version
only)
- Remove the four screws (4) and then remove the transformer.
1
2
3
