Service Manual
683311W
9-11
9.2.9 DISASSEMBLING/REASSEMBLING THE SERVICES MOTOR
- Remove the printer case (section 9.2.1)
- Lift the entire mechanical assembly frontwards off the base of the printer and partly tilt it so as to
have access to the connectors on the main board
- Disconnect the services motor connection cable from the main board

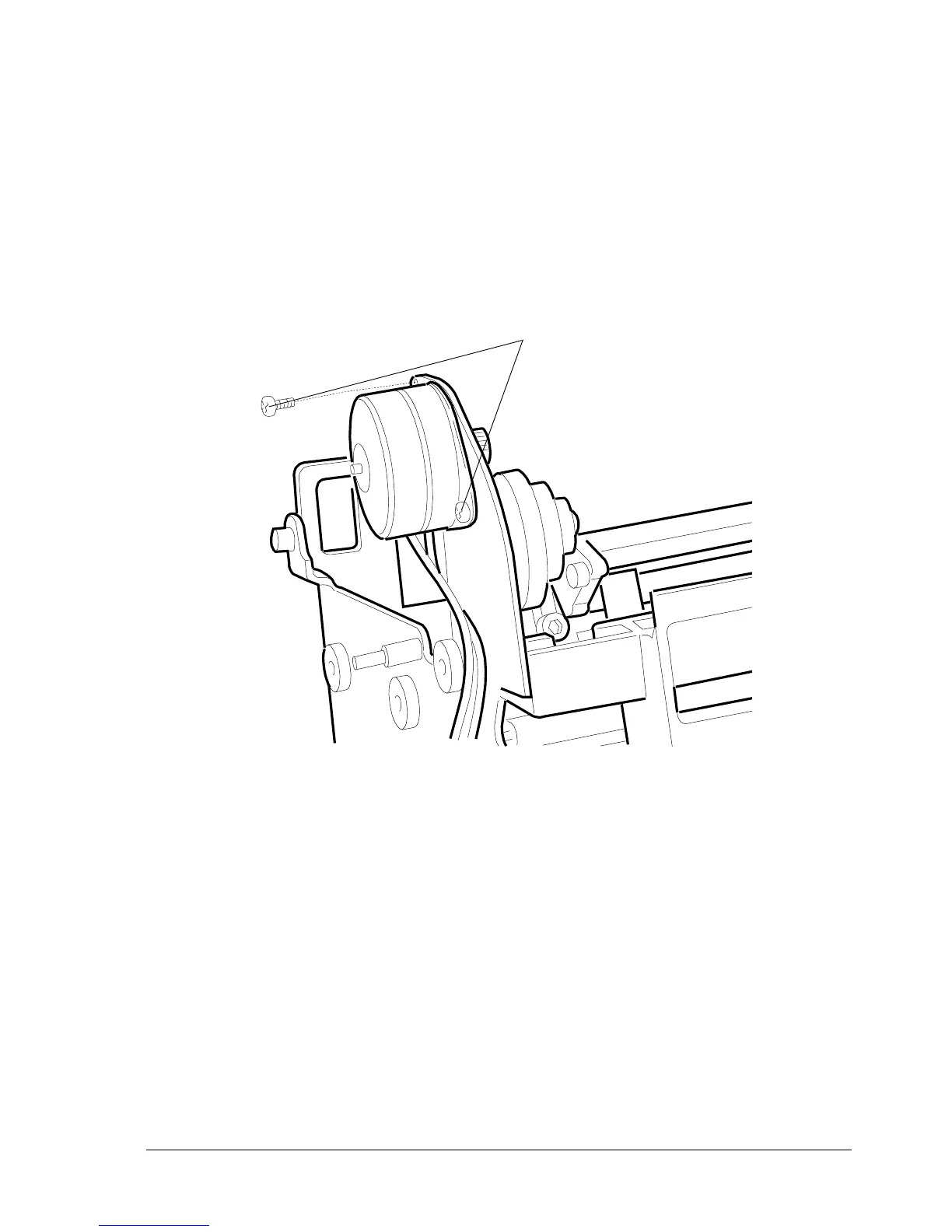

- Remove the two screws (1) that secure the motor to the left-hand side of the frame and remove
the motor from the printer.
1
Fig. 9-10
