683311W
9-16
9.2.14 DISASSEMBLING/REASSEMBLING THE POWER ASSEMBLY
- Remove the mechanical assembly (section 9.2.3)
- Remove the cover of the power assembly after removing the two screws (1) and loosening the two
screws (2)
- Disconnect transformer coil cables (3) and (4) from the power assembly board and connection
cable (5) from the main board
- Remove ground screw (6)
- Remove screws (7) and then remove the power assembly.
1
2
3
4
7
5
6

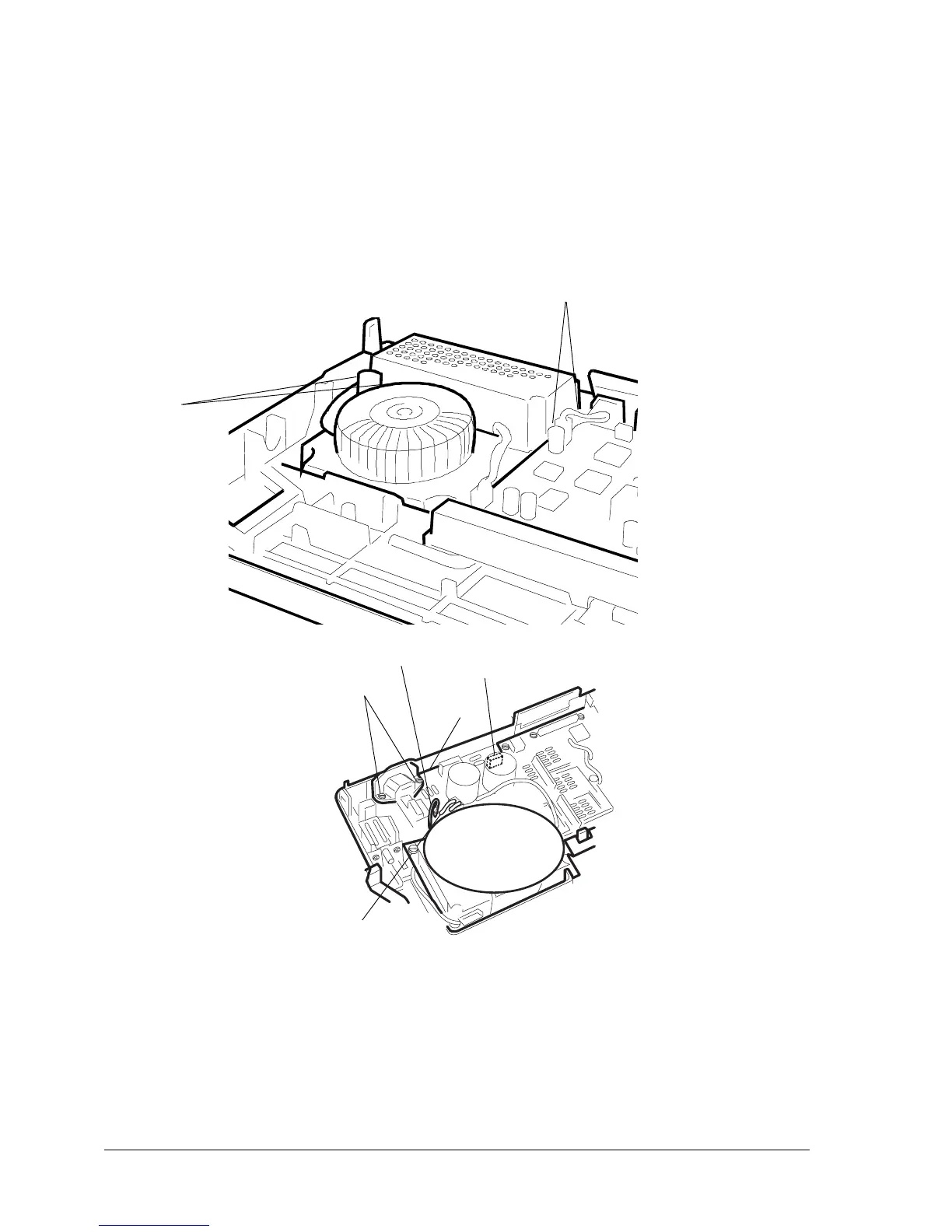

Fig. 9-15
Note: If the board is replaced, make sure that the new board has the same power requirements as
the one replaced.
To Next Page
