2.5 UPPER MECHANICAL ASSEMBLY LIFTING LEVER
This lever is located on the left-hand side of the machine and is used to lift the upper part of the printer
assembly to grant access to the internal paper path so that paper jams can be cleared without needing
to power off the printer.
To access this lever, lift the printer cover by turning it approximately 45 degrees upwards as far as it
goes.

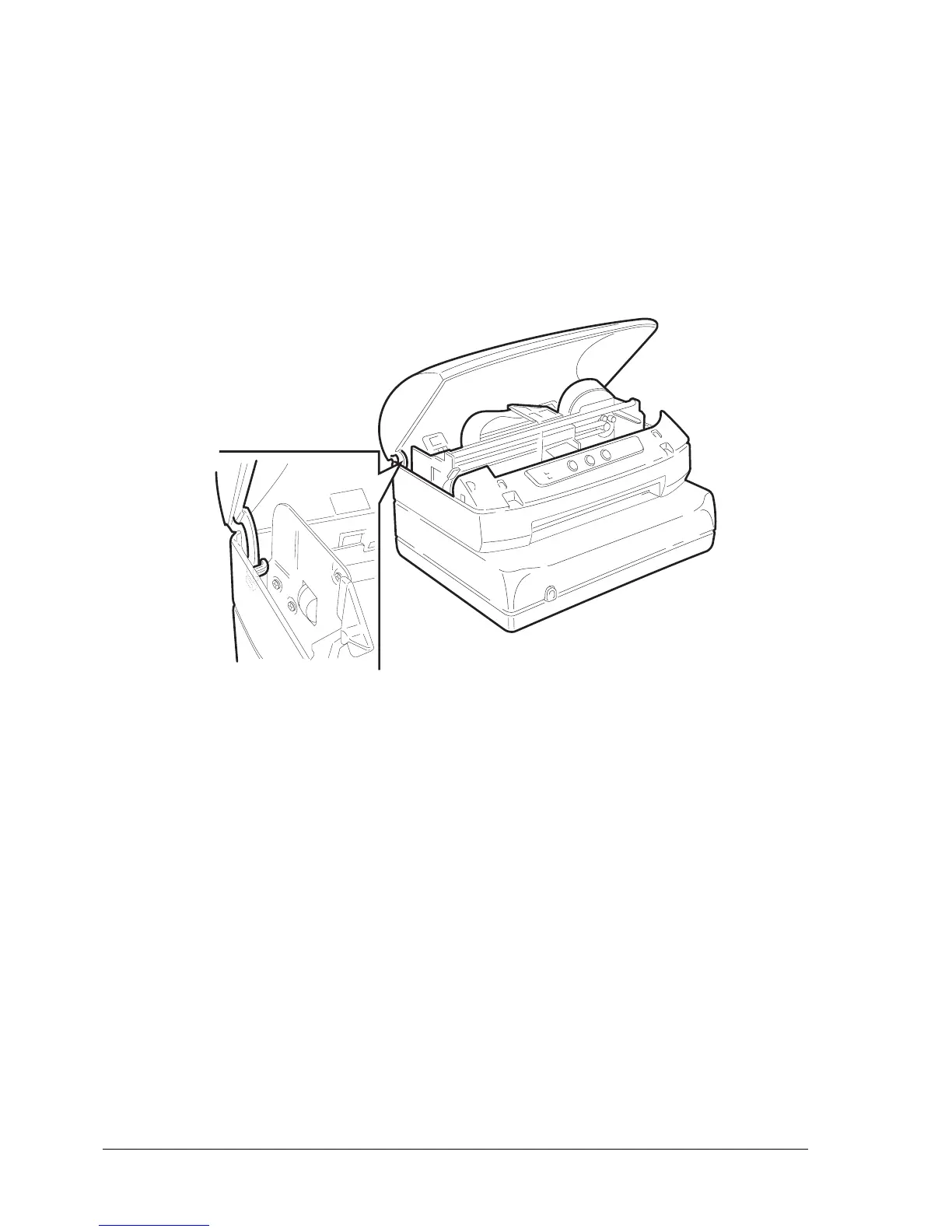

Fig. 2-5 Opening the Cover
