683311W
8-10
8.1.9 ADJUSTING TAB OPENING
MACHINE CONDITION:
Upper mechanical assembly lifted and lever (1) in contact with lifting lever (2) control pin.
OBJECTIVE ADJUSTMENT:
A distance of 7 mm between the edge of the tab and the print bar.
PROCEDURE:
Turn screw (3) securing lever (1) onto the tab shaft.
7 mm
IN CONTACT

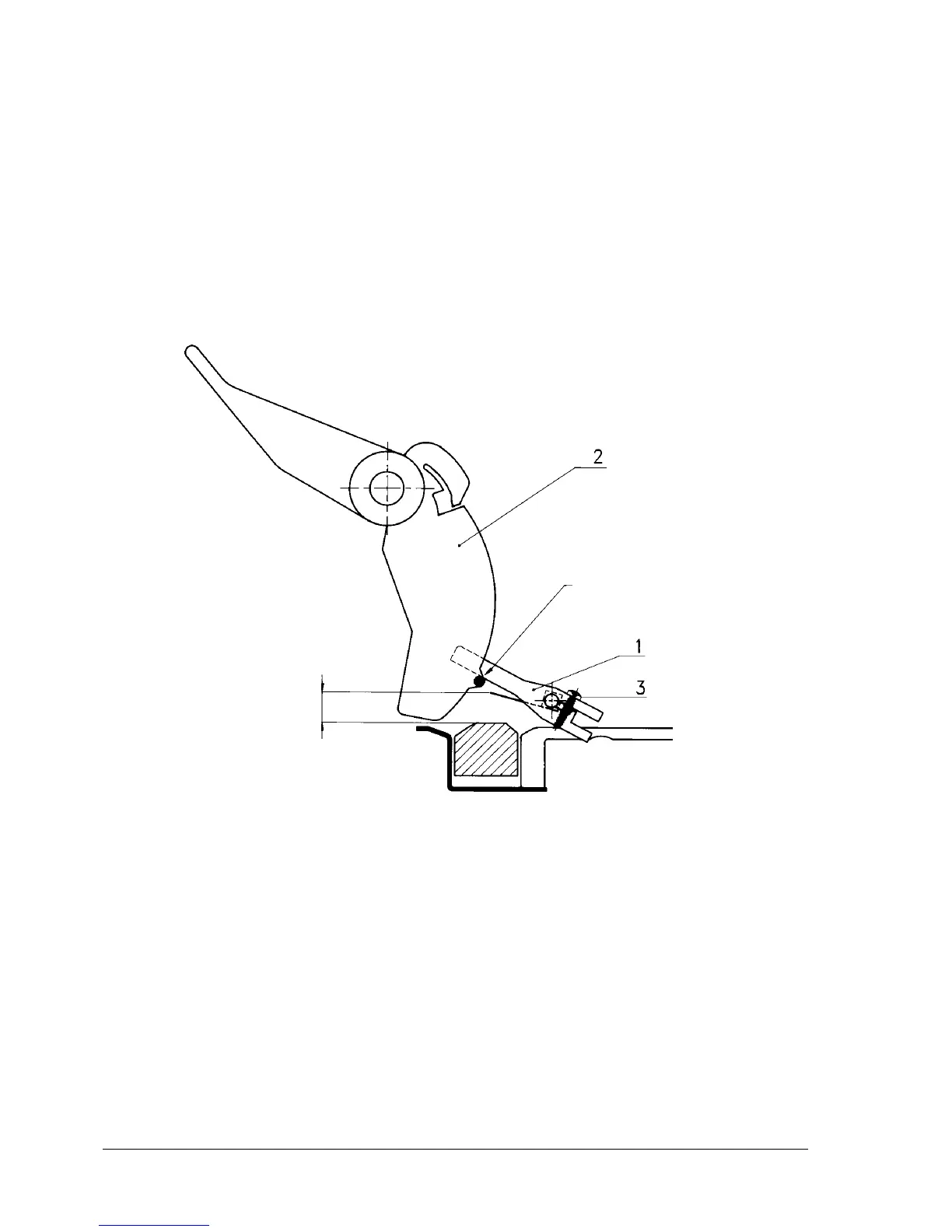

Fig. 8-9
Note: This adjustment must be performed after the print bar adjustment (8.1.5) and the tab
adjustment (8.1.6).
The adjustment value can vary for certain non-standard products.
