Olivetti PR2 - Setup Flow Chart: SNI 4904 Menu

Service Manual
683311W
4-23
KEY
SNI 4904 MENU
KEY
KEY
INTERFACE
STATION 1=CONFIRM
STATION 2=SKIP
PRESS LOCAL TO CONTINUE
PRESS ST1, ST2 AND
POWER ON THE PRINTER
ST 1 ST 2
LOCAL
Printing
Printing
ST 2
LOCAL
ST 1
Printing
ST 1
ST 2
LAST
CHARACTER
PRINTED
Y/N
Printing
STORAGE
Y
N
KEY
ST 1
ST 2
LOCAL
Printing: SNI 4904 Menu
INSERT AN A4 PAGE
PASSBOOK: OFF
CHAR SET: USA
CR HANDLING: CR
PC TABLE: TABLE 1
TOF TENTHS: 3
TOF UNITS: 0
EDGE HANDLING: LEFT
DRAFT SPEED: NORMAL
LQ TYPE: LQ2
CHAR DEFINITION: DRAFT
HOR. FOLD (xx/6”): OFF
BUZZER: ON
SPECIAL FORMS: N
(IF) HMAG OPTION INSTALLED
STRIPE HANDLING: NORMAL
SAVE PARAMETERS: Y
NOT STORE

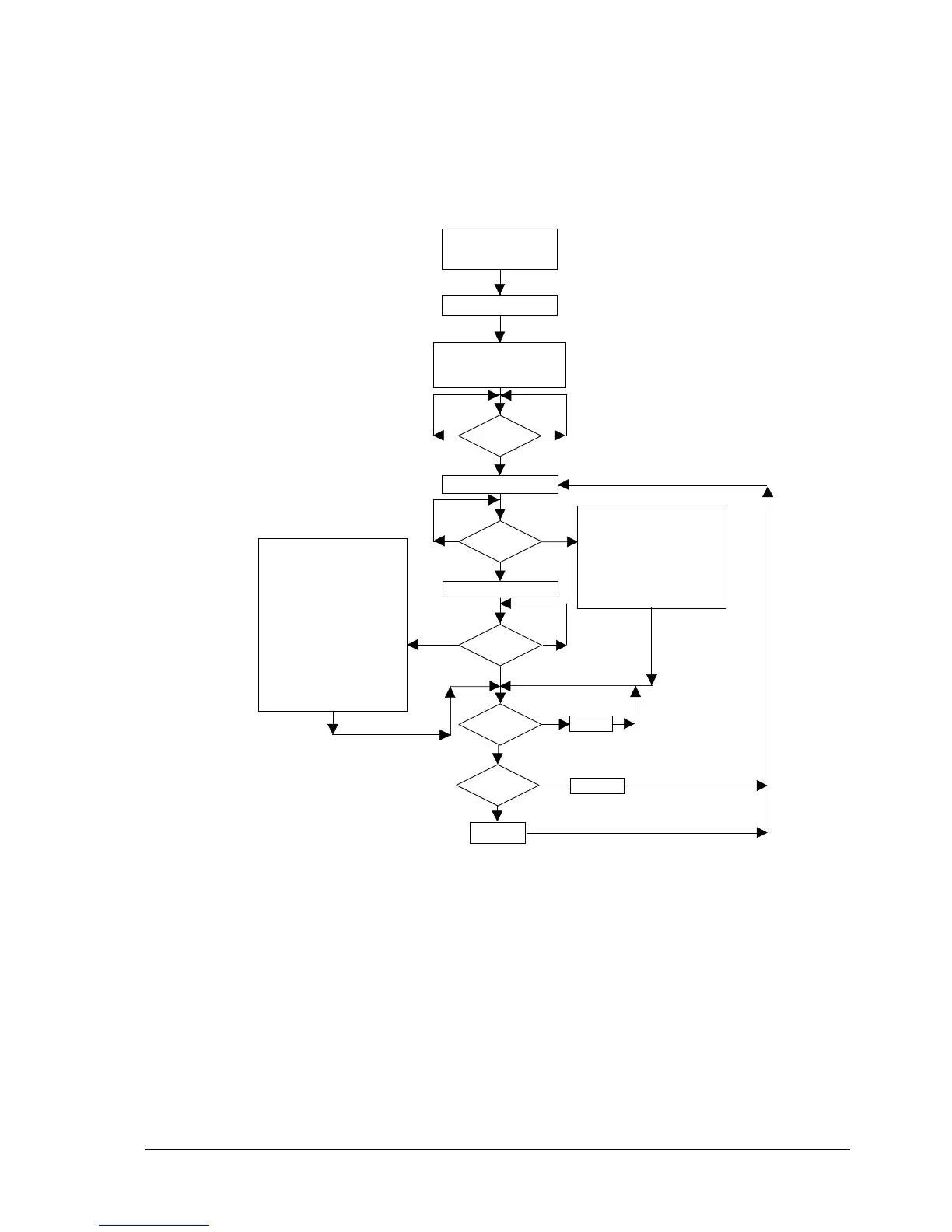

SET-UP FLOW CHART (SNI 4904 MENU)
Printing: Configuration Mode
INTERFACE: RS 232
BAUD RATE: 9600
BIT/CHAR: 8
PARITY: NONE
STOP BIT: 1
HANDSHAKING: DTR MODE
DSR: ENABLE
DCD: ENABLE
SAVE PARAMETERS: YES
