Appendix BAdditional Origin Search Patterns
251

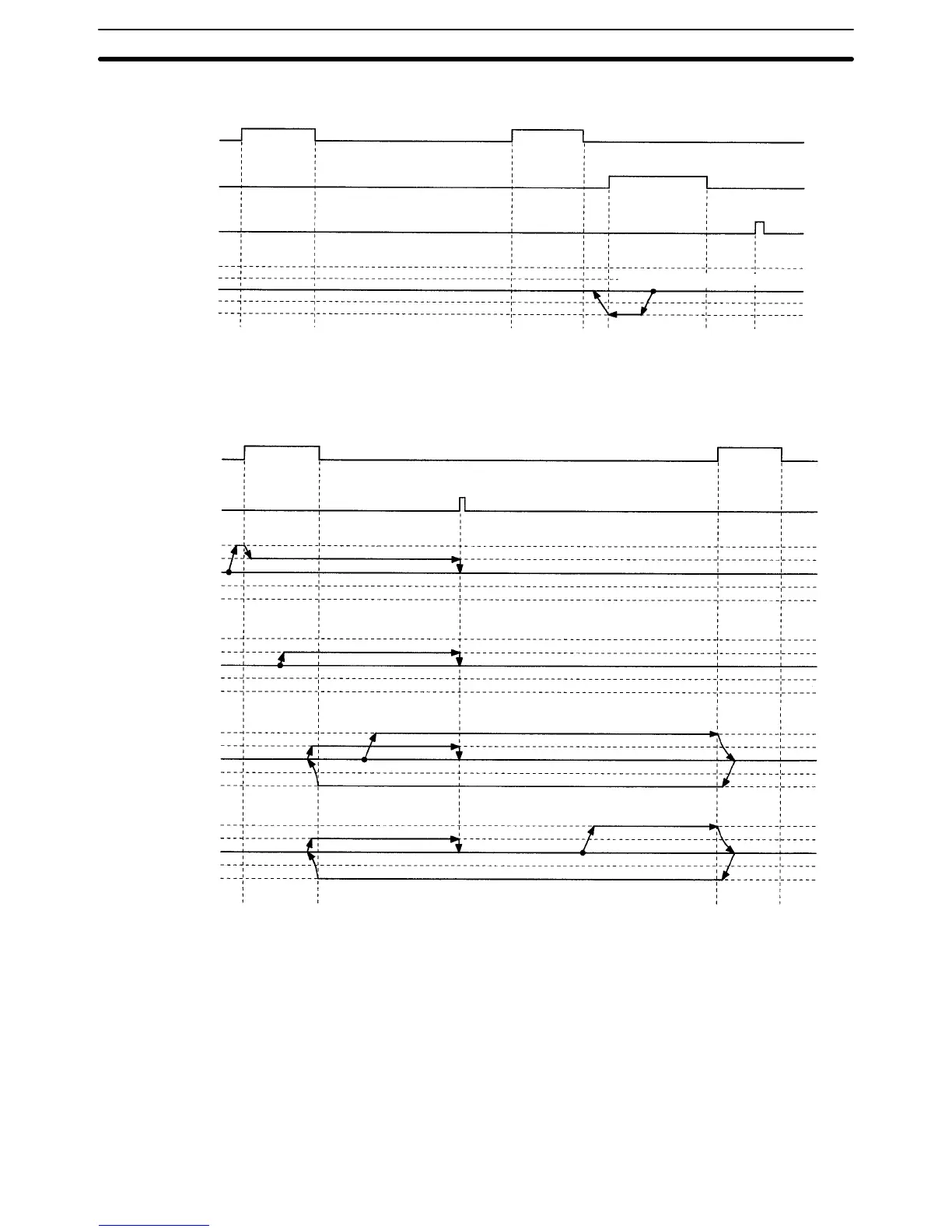

The following error can occur if the CCW limit switch signal is too close to the origin proximity signal.
Limit switches
Origin proximity
switch
Z-phase signal
Speed
Error (Origin proximity reverse error)
CCW CW
Reverse-mode Origin Searches 13
These origin searches are performed without an origin proximity switch and the initial search direction set to CW.
Limit switches
Z-phase signal
Speed
CCW CW
