Inner Boards Section 3-4

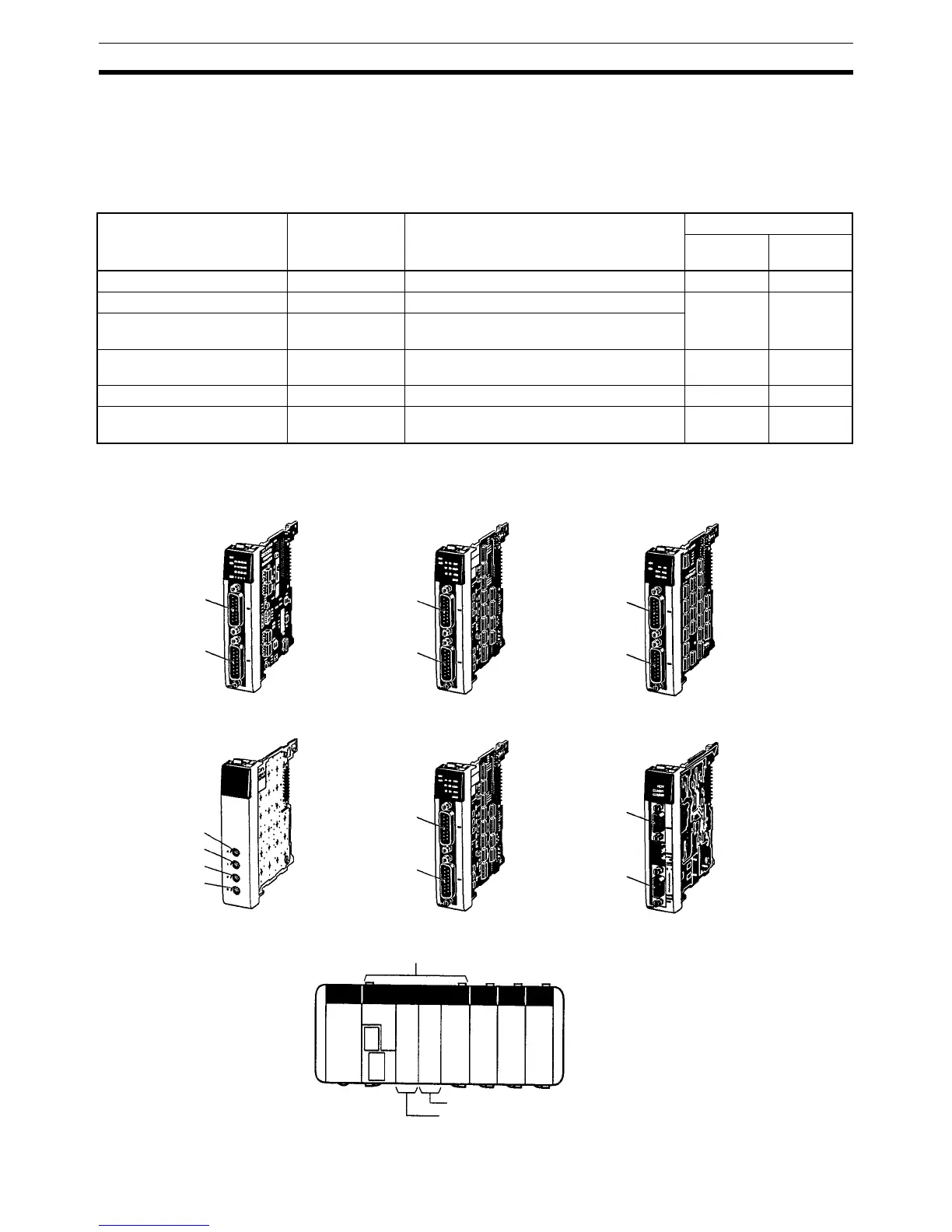

3-4 Inner Boards
The Inner Boards listed in the following table are available. These must be
mounted in Inner Board slot 1 or slot 2 of a CQM1H-CPU51 or CQM1H-
CPU61 CPU Unit. The slots that can be used are determined by the shape of
the Board.
Note The Analog Setting Board cannot be mounted in both slots at the same time.
Name Model number Specifications Mountable slot
Slot 1
(left slot)
Slot 2
(right slot)
High-speed Counter Board CQM1H-CTB41 Four pulse inputs and four external outputs YES YES
Pulse I/O Board CQM1H-PLB21 Two pulse inputs and two pulse outputs No YES
Absolute Encoder Interface
Board
CQM1H-ABB21 Two absolute encoder inputs
Analog Setting Board CQM1H-AVB41 Four analog settings YES
(See note.)
YES
(See note.)
Analog I/O Board CQM1H-MAB42 Four analog inputs and two analog outputs No YES
Serial Communications
Board
CQM1H-SCB41 One RS-232C port and
one RS-422A/485 port
YES No
CN1
Pulse inputs
1 and 2
CN1
Pulse inputs
3 and 4
CQM1H-CTB41
High-speed Counter Board
CN1
Encoder input 1
CN1
Encoder input 2
CQM1H-PLB21
Pulse I/O Board
CN1
Encoder input 1
CN1
Encoder input 2
CQM1H-ABB21
Absolute Encoder Interface Board
CQM1H-AVB41
Analog Setting Board
CN1
Analog inputs
1 to 4
CN1
Analog outputs
1 and 2
CQM1H-MAB42
Analog I/O Board
RS-232C port
RS-422A/484 port
CQM1H-SCB41
Serial Communications Board
Analog setting 0
Analog setting 1
Analog setting 2
Analog setting 3
CQM1H-CPU51/CPU61
CPU Unit
Slot 1
Slot 2
