97
Programming Devices Section 3-6

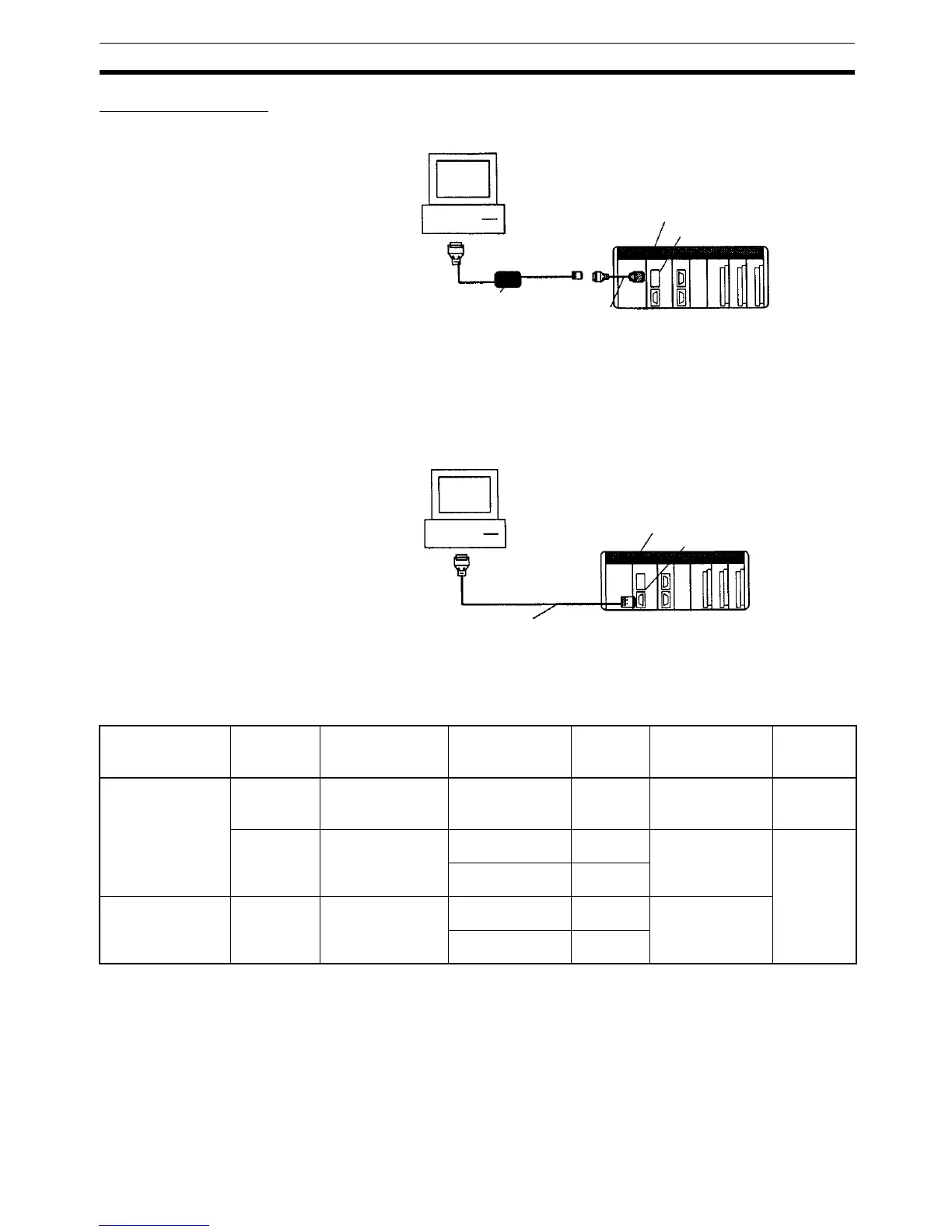

Connecting Cables
Connecting to Peripheral Port
Note 1. Connecting cables CS1W-CN225/625/227/627 cannot be used with the
CQM1H.
2. The FIT 10/20 connecting cable CQM1-CIF-11 cannot be used with the
CQM1H.
Connecting to RS-232C Port (on CPU Unit or Serial Communications Board)
One-to-one
Communications
Use the following cables for one-to-one communications between the per-
sonal computer and the PC.
Note The Startup Modes in the above table are for when DM 6600 in the PC Setup
is set to the default settings. The Startup Mode depends on the type of cable
used. For details refer to 5-2-3 Startup Mode.
Direct Connection to
Peripheral Port
It is possible to connect the personal computer directly to the peripheral port
using the CS1W-CN226/626 Connecting Cable (dedicated cable for IBM PC/
AT or compatible computers). If this cable is used, the Startup Mode (when
IBM PC/AT or compatible computer
(D-Sub, 9-pin, male
)
Connecting cable
CQM1-CIF02
CQM1H CPU Unit
Peripheral port
CS1W-CN114
CQM1H CPU Unit
RS-232C port
Connecting cable
XW2Z-200S-CV (2 m)
XW2Z-500S-CV (5 m)
IBM PC/AT or compatible computer
(D-Sub, 9-pin, male)
Unit/Board Port Serial
communications
mode
Model number Length Comments Startup
Mode (see
note)
CPU Unit Peripheral
port
Peripheral bus or
Host Link
(SYSMAC WAY)
CS1W-CN114 +
CQM1-CIF02
0.05 m +
3.3 m
--- PRO-
GRAM
mode
RS-232C
port (D-Sub,
9-pin, male)
Host Link
(SYSMAC WAY)
XW2Z-200S-CV 2 m Use a connector
for which ESD
countermeasures
have been taken.
Ignored
XW2Z-500S-CV 5 m
Serial
Communications
Board
RS-232C
port (D-Sub,
9-pin,
female)
Host Link
(SYSMAC WAY)
XW2Z-200S-CV 2 m Use a connector
for which ESD
countermeasures
have been taken.
XW2Z-500S-CV 5 m
To Next Page
