134
Internal Structure of CPU Unit Section 5-1
5-1 Internal Structure of CPU Unit

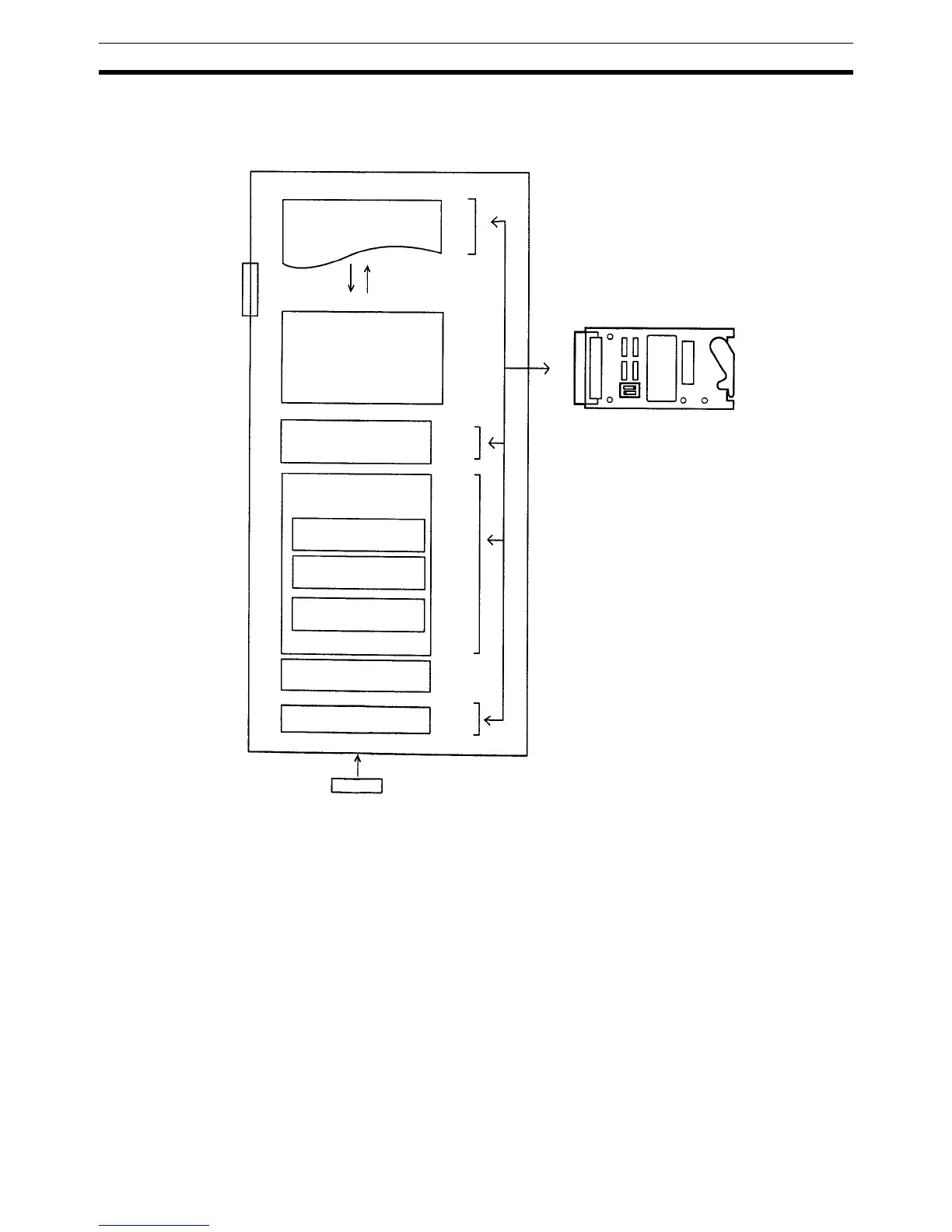

The following diagram shows the internal structure of the CPU Unit.
Note There are no I/O tables registered by the user for the CQM1H.
5-1-1 Memory Areas
All of the following areas are backed up using the battery. If the battery
expires the data for these areas will be lost.
The User Program The user program is made up of program instructions. These instructions read
and write to I/O memory and are executed in order starting at the top of the
program. After all instructions are executed, the I/O for all Units are refreshed,
and the cycle repeats again from the top of the program.
If pin 1 on the DIP switch on the front of the CPU Unit is set to ON, the user
program cannot be written from a Programming Device.
Reading, writing, and comparison can be performed on the user program
when a Memory Cassette is used.
CPU Unit
User program
DIP switch
PC Setup
(except Serial Communications
Board settings)
I/O memory
Read-only DM area
Controller Link DM
parameter area
Routing table area
Serial Communications
Board settings
(part of PC setup)
Error log area
Battery (backup of the above areas)
DM 6600
to
DM 6655
Memory Cassette
User programs, data memory (read-
only areas, PC Setup), and expan-
sion instruction information can be
saved and read in batch.
Expansion instructions
information
DM 6144
to
DM 6400
to
DM 6409
DM 6450
to
DM 6499
DM 6550
to
DM 6559
to
DM 6568
DM 6569
to
DM 6599
