Connecting the Programming Console Section 7-2
Contrast Control The display contrast can be adjusted with the control on the right side of the
Programming Console.
Buzzer The C200H-PRO27-E’s buzzer volume can be adjusted with the lever on the
right side of the Programming Console. The CQM1H-PRO01-E or CQM1-
PRO01-E’s buzzer volume cannot be adjusted.
Note The buzzer can be turned ON and OFF with a key operation. See 7-3-4
Buzzer Operation for details.
7-2-2 Changing the CQM1H’s Mode with the Mode Switch
Once the Programming Console has been connected, its mode switch can be
used to chan
ge the CQM1H’
s ope
rating mode. The mod
e display (<PRO-
GRAM>, <MONITOR>, or <RUN>) will appear on the Programming Console
screen.
• No key operations can be performed while the mode display is displayed
on the Programming Console screen. Press CLR to clear the display so
that key operations can be performed.
• If the SHIFT Key is pressed while the mode switch is turned, the original
display will remain on the Programming Console’s screen and the mode
display won’t appear.

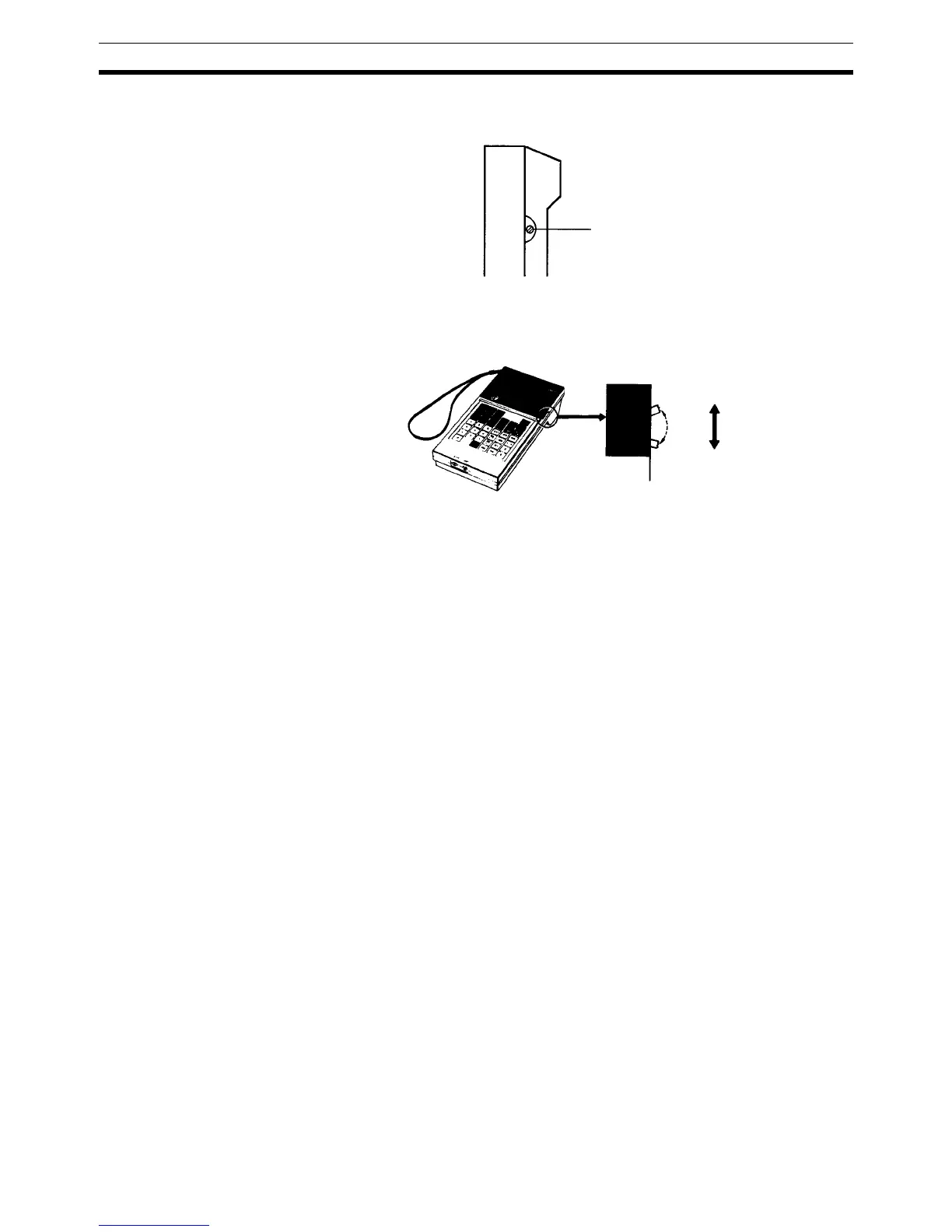

Contrast control
Low volume
High volume
C200H-PRO27-E
