216
Absolute Encoder Interface Board Section 8-3
8-3-7 Wiring Examples

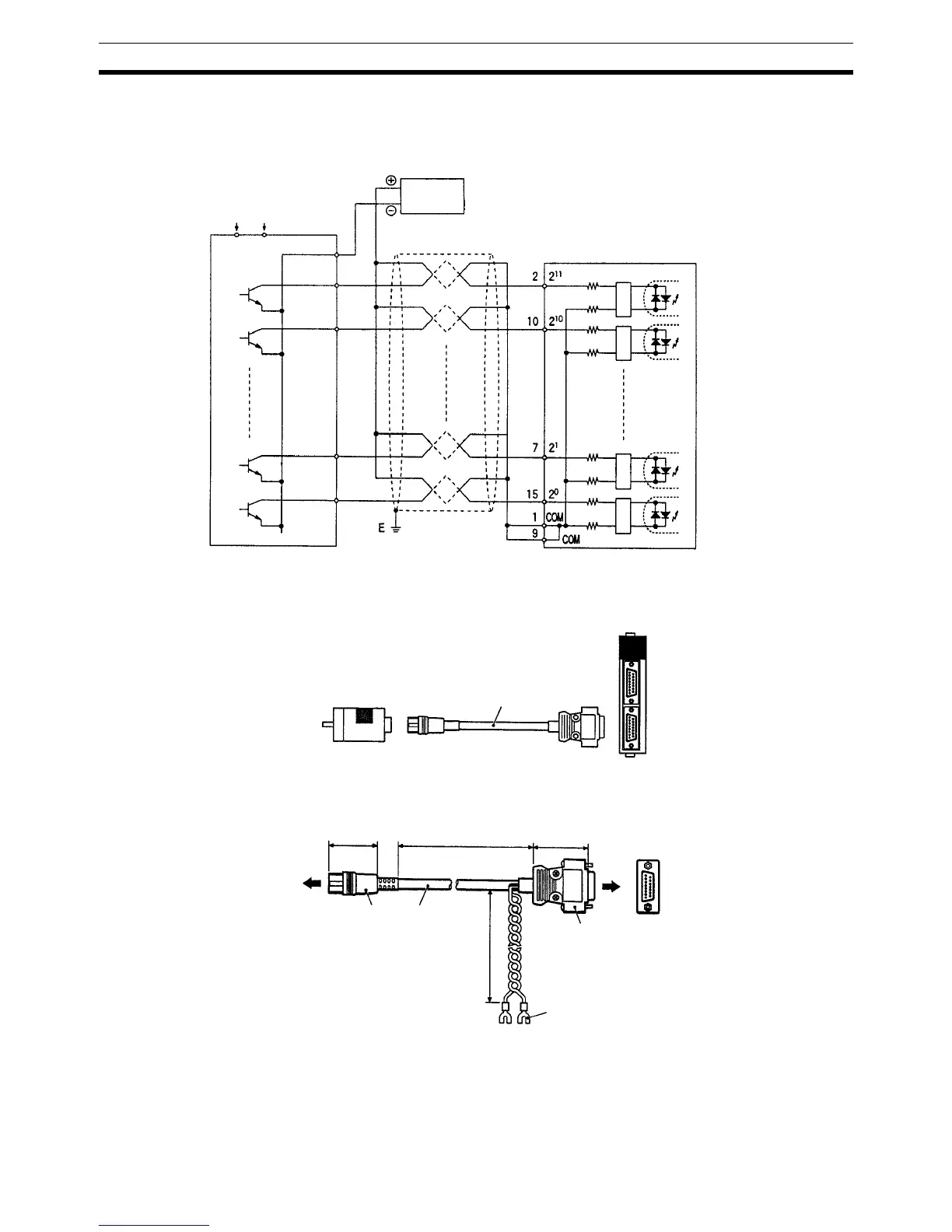

The following example shows a connection to an open-collector encoder.
Connecting to an
OMRON Absolute Encoder
When connecting to an Absolute Encoder manufactured by OMRON, connect
the cables as shown in the following diagram.
Note 1. A grease-proof PVC-insulated cable with external diameter of 6.12, seven
conductors with diameters of 0.18 and standard length of 5 m is used.
2. Connect to CQM1H-ABB21.
3. Use 12 to 24 V DC.
(Do not share the power supply with other I/O.)
Power supply
Encoder
24-V DC
power supply
Shielded twisted-pair cable
Absolute Encoder Interface Board
24 V
0 V
Absolute Encoder
E69-DC5 Connecting Cable
Absolute Encoder
Interface Board
Applicable Models:
E6F-AG5C-C
E6CP-AG5C-C
E6C2-AG5C-C
Applicable Cable: E69-DC5 Ab-
solute Encoder Interface Board
Connecting Cable (length: 5 m)
To Absolute Encoder
CN1 or CN2 of Absolute
Encoder Interface Board
34.6 mm
5,000 mm
41.5 mm
200 mm
See note 4 See note 1
See note 2
See note 3
To Next Page
