223
Analog I/O Board Section 8-5

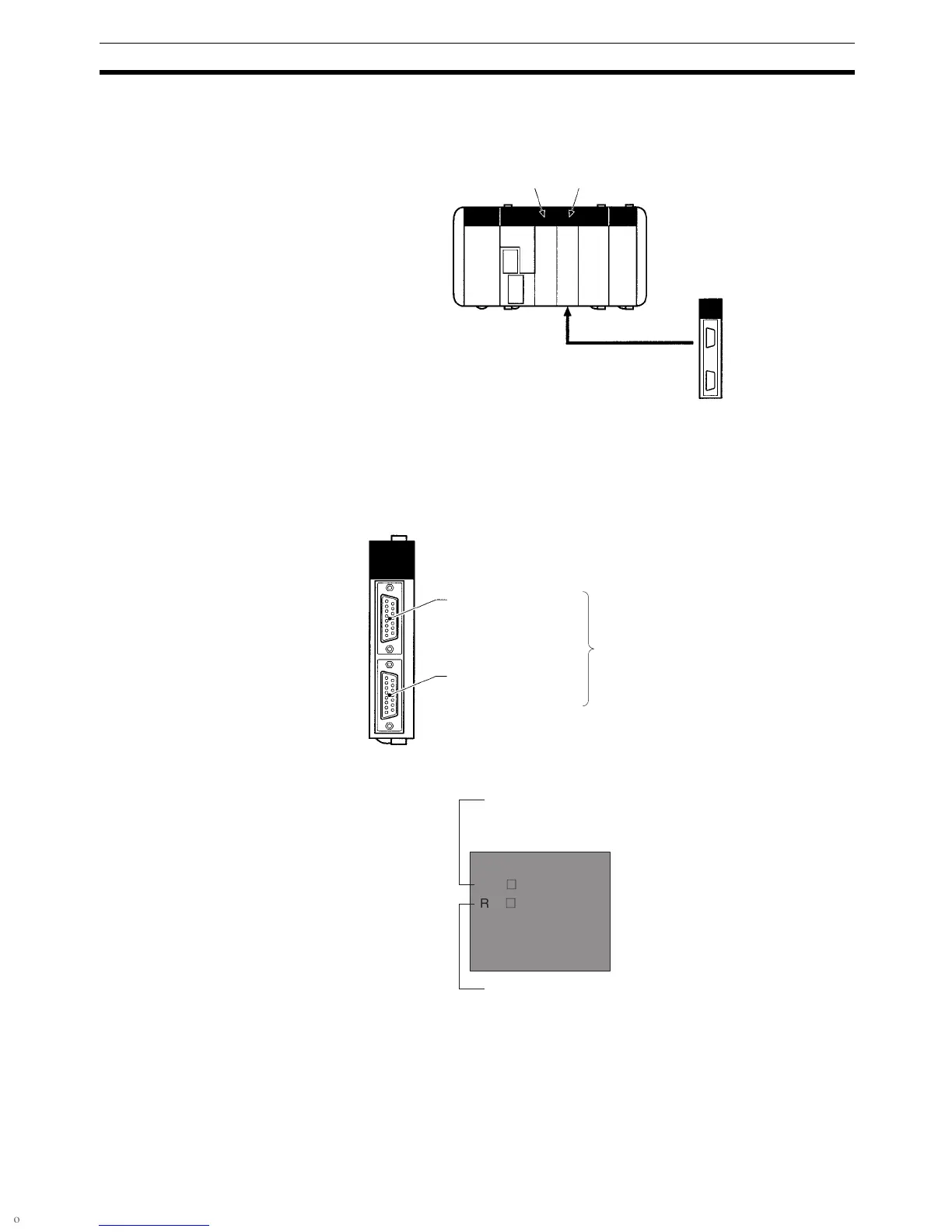

8-5-4 Applicable Inner Board Slot
The Analog I/O Board can only be mounted in slot 2 (right slot) of the
CQM1H-CPU51/61 CPU Unit.
8-5-5 Names and Functions
The Analog I/O Board has a CN1 connector for the four analog inputs and a
CN2 connector for 2 analog outputs.
LED Indicators
Slot 1: No Slot 2: OK
CQM1H-MAB42
Analog I/O Board
CN1
Analog inputs 1 to 4
CN2
Analog outputs 1 to 2
Compatible connector
Socket: XM2D-1501 (OMRON)
Hood: XM2S-1511 (OMRON)
Two Socket+Hood sets are pro-
vided as standard accessories.
RDY (Green)
Lit when analog I/O can be performed.
ERR (Red)
Lit when there is an error in the PC Set-
up for analog I/O, or when an error has
occurred during analog conversion.
ERR (
RDY (
