Programming Console Operations Section 7-3
b) Input the value of the operand from –32,768 to 32,767. Use the SET
Key to input a positive number, and use the RESET Key to input a neg-
ative number.
Note If an error is made, press the CLR Key to restore the status prior to
the input. Then enter the correct input.
c) Restore the hexadecimal display.
10. Input the third operand of ADB(5) as a word address as follows:
Input the final operand and then press the WRITE Key. (It isn’t necessary
to input leading zeroes.)

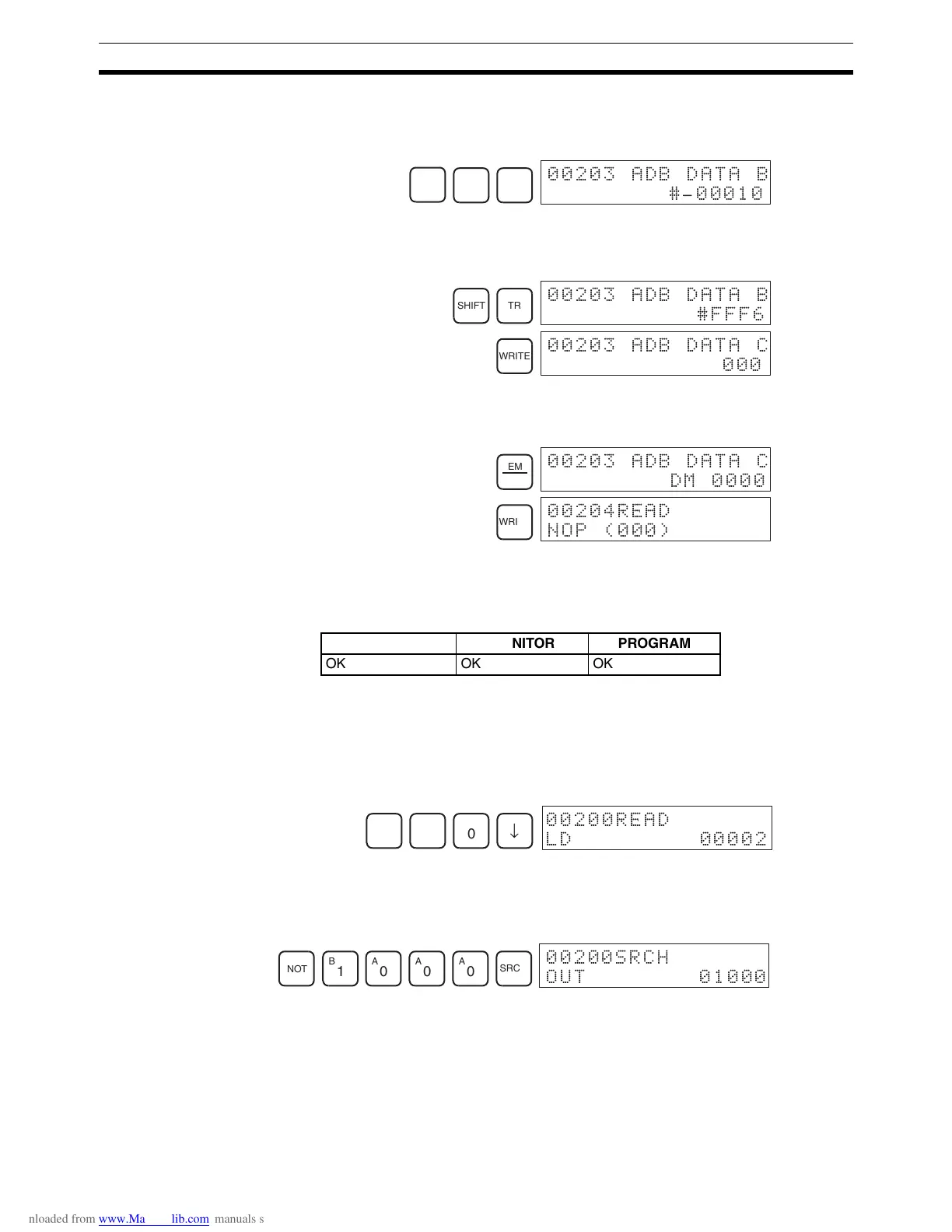

7-3-8 Instruction Search
This operation is used to find occurrences of the specified instruction in the
program and is possible in any mode.
The ON/OFF status of any displayed bit will be shown if the PC is in RUN or
MONITOR mode.
1,2,3... 1. Press the CLR Key to bring up the initial display.
2. Input the address from which the search will begin and press the Down Ar-
row Key. It is not necessary to input leading zeroes.
3. Input the instruction to be found and press the SRCH Key. In this case, the
search is for OUT 01000.
In this case, the next OUT 01000 instruction is at address 200, as shown
below.
4. Press the Down Arrow Key to display the instruction’s operands or press
the SRCH Key to search for the next occurrence of the instruction.
5. The search will continue until an END instruction or the end of Program
Memory is reached. In this case, an END instruction was reached at ad-
RESET
B
1
A
0
! ),* ,)6) *
–
SHIFT TR
! ),* ,)6) *
...$
WRITE
! ),* ,)6) +
DM
EM
203 ADB DATA C
DM 0000
WRITE
204READ
NOP (000)
RUN MONITOR PROGRAM
OK OK OK
C
2
A
0
A
0
↓
00200READ
LD 00002
NOT
B
1
A
0
A
0
A
0
SRCH
200SRCH
OUT 01000
