Programming Console Operations Section 7-3
6. Input the second operand of MOV(21) as a word address as follows:
a) Input the operand, specifying the memory area first.
b) Press the WRITE Key to write the instruction to Program Memory. The
next program address will be displayed.
Note It isn’t necessary to press the SHIFT + CH/# Keys when inputting an
IR area bit or word address.

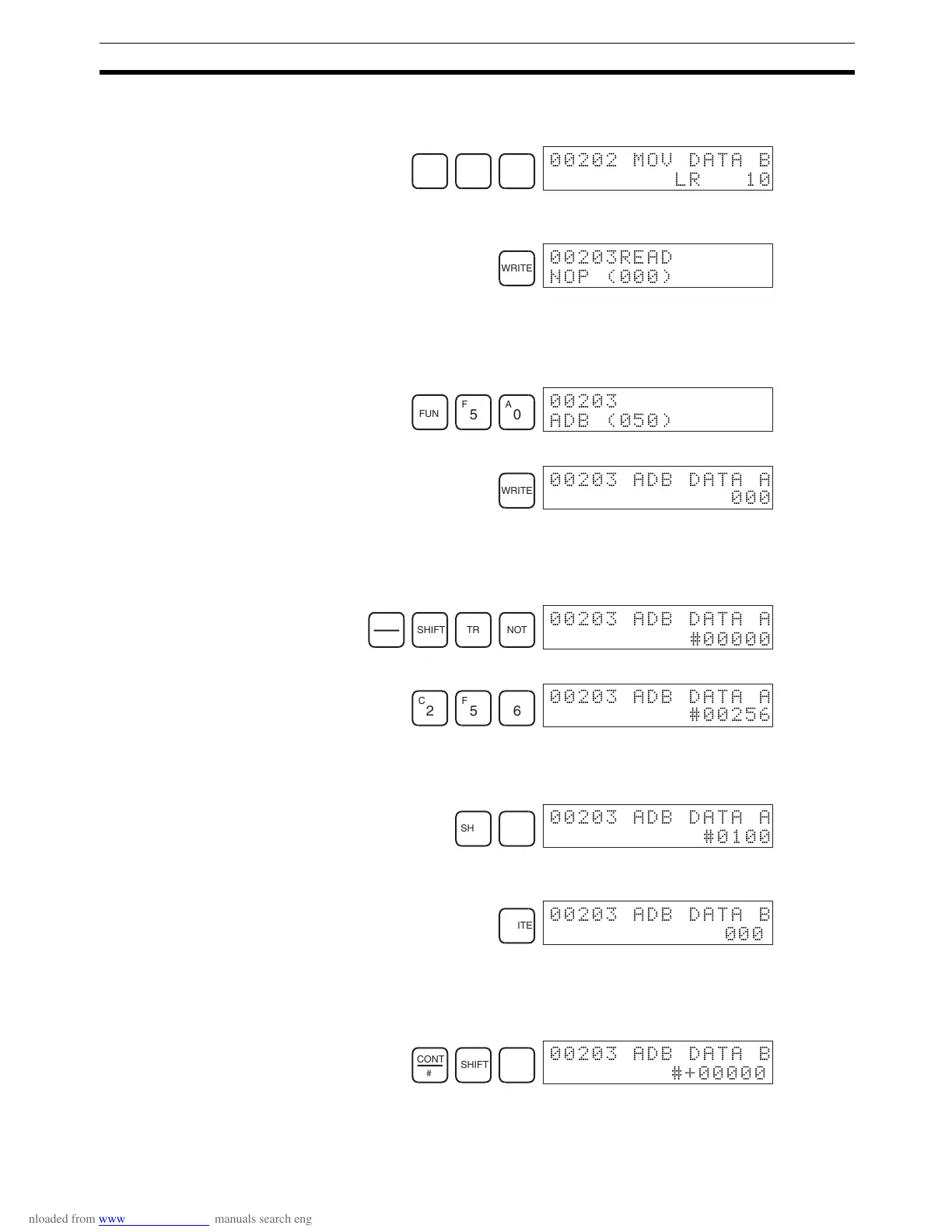

7. Input the ADB(50) instruction as follows:
a) Input the instruction using the function code.
b) Press the WRITE Key to write the instruction to Program Memory.
8. The first operand of ADB(50) as an unsigned (BCD) integer as follows:
a) Specify input of an unsigned integer using the following keys. The
CONT/# Key is required to specify input of a constant instead of a
memory address.
b) Input the value of the operand from 0 to 65535.
Note If an error is made, press the CLR Key to restore the status prior to
the input. Then enter the correct input.
c) Return to the hexadecimal display using the following keys.
Note If an input is made outside of the permissible range, a buzzer will
sound and the hexadecimal display will not be displayed.
9. Input the second operand of ADB(5) as a signed (BCD) integer as follows:
a) Specify input of an signed integer using the following keys. The CONT/
# Key is required to specify input of a constant instead of a memory
address.
LR
B
1
A
0
202 MOV DATA B
LR 10
WRITE
203READ
NOP (000)
FUN
F
5
A
0
!
),* #
WRITE
! ),* ,)6) )
CONT
#
SHIFT TR
NOT
! ),* ,)6) )
C
2
F
5 6
! ),* ,)6) )
#$
SHIFT TR
! ),* ,)6) )
WRITE
! ),* ,)6) *
CONT
#
SHIFT TR
203 ADB DATA B
#+00000
To Next Page
