Programming Console Operations Section 7-3
7-3-10 Inserting and Deleting Instructions
This operation is used to insert or delete instructions from the program. It is
possible in PROGRAM mode only.

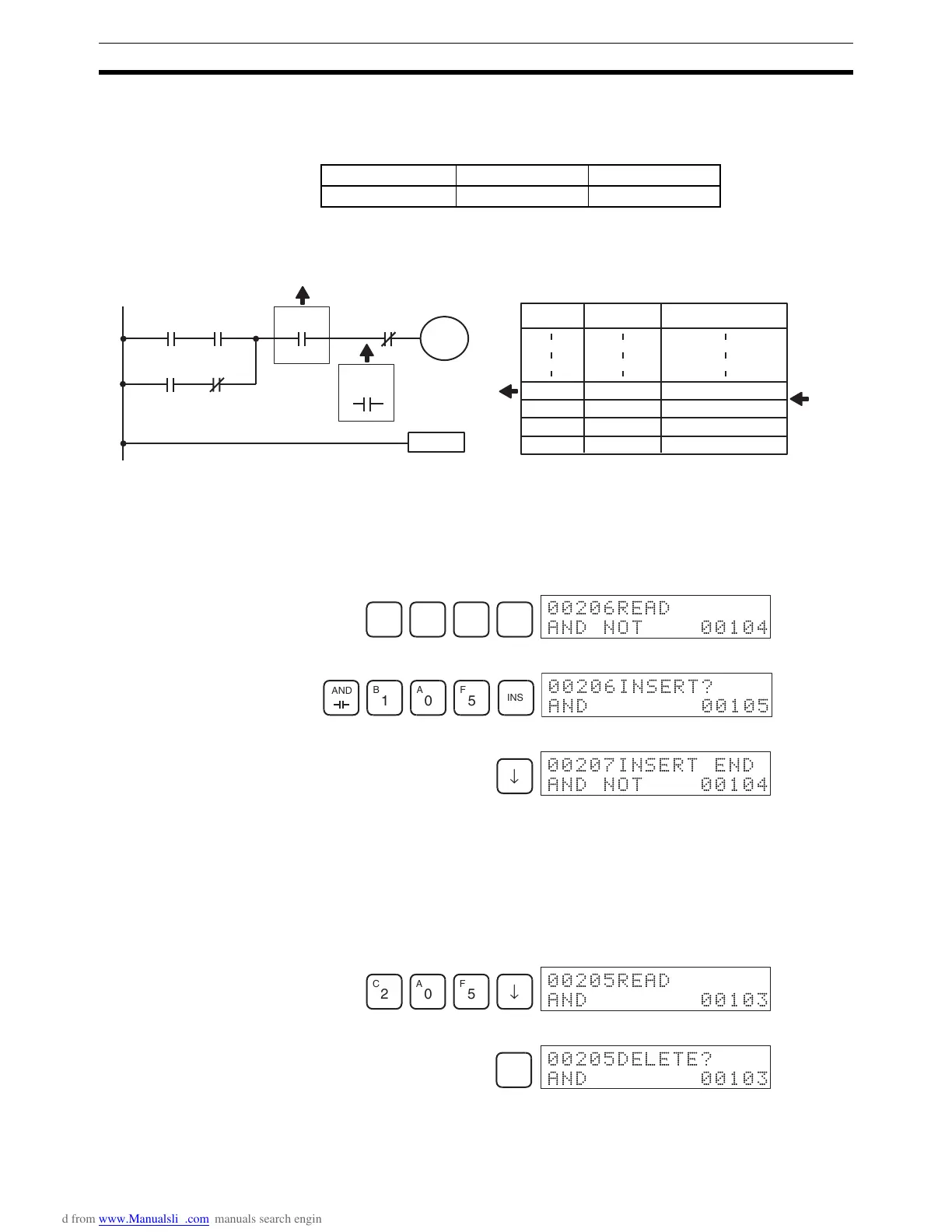

To demonstrate this operation, an IR 00105 NO condition will be inserted at
program address 00206 and an IR 00103 NO condition deleted from address
00205, as shown in the following diagram.
Insertion Follow the procedure below to insert the IR 00105 NO condition at address
00206.
1,2,3... 1. Press the CLR Key to bring up the initial display.
2. Input the address where the NO condition will be inserted and press the
Down Arrow Key. It is not necessary to input leading zeroes.
3. Input the new instruction and press the INS Key.
4. Press the Down Arrow Key to insert the new instruction.
Note For instructions that require more operands (such as set values), in-
put the operands and then press the WRITE Key.
Deletion Follow the procedure below to delete the IR 00103 NO condition at address
00205.
1,2,3... 1. Press the CLR Key to bring up the initial display.
2. Input the address where the NO condition will be deleted and press the
Down Arrow Key. It is not necessary to input leading zeroes.
3. Press the DEL Key.
4. Press the Up Arrow Key to delete the specified instruction.
RUN MONITOR PROGRAM
No No OK
00104
00100
00103
00105
00101
00201
END(01)
00102
10000
Delete
Insert
Original Program
Address Instruction Operands
00205 AND 00103
00206 AND NOT 00104
00207 OUT 10000
00208 END(01) -
Delete
Insert
C
2
A
0 6
↓
206READ
AND NOT 00104
AND
B
1
A
0
F
5
INS
206INSERT?
AND 00105
↓
207INSERT END
AND NOT 00104
C
2
A
0
F
5
↓
205READ
AND 00103
DEL
205DELETE?
AND 00103
To Next Page
