13
System Configuration Section 1-2
1-2-8 Products for Expansion I/O Blocks
Name Model Specifications
I/O Control Unit CQM1H-IC101 Connected to right end of CPU Block.
I/O Interface Unit CQM1H-II101 Connected to the left end of Expansion
I/O Block. An End Cover is provided.
Expansion I/O
Cable
CS1W-CN313 Length: 0.3 m Connects the I/O
Control Unit to the
I/O Interface Unit.
CS1W-CN713 Length: 0.7 m

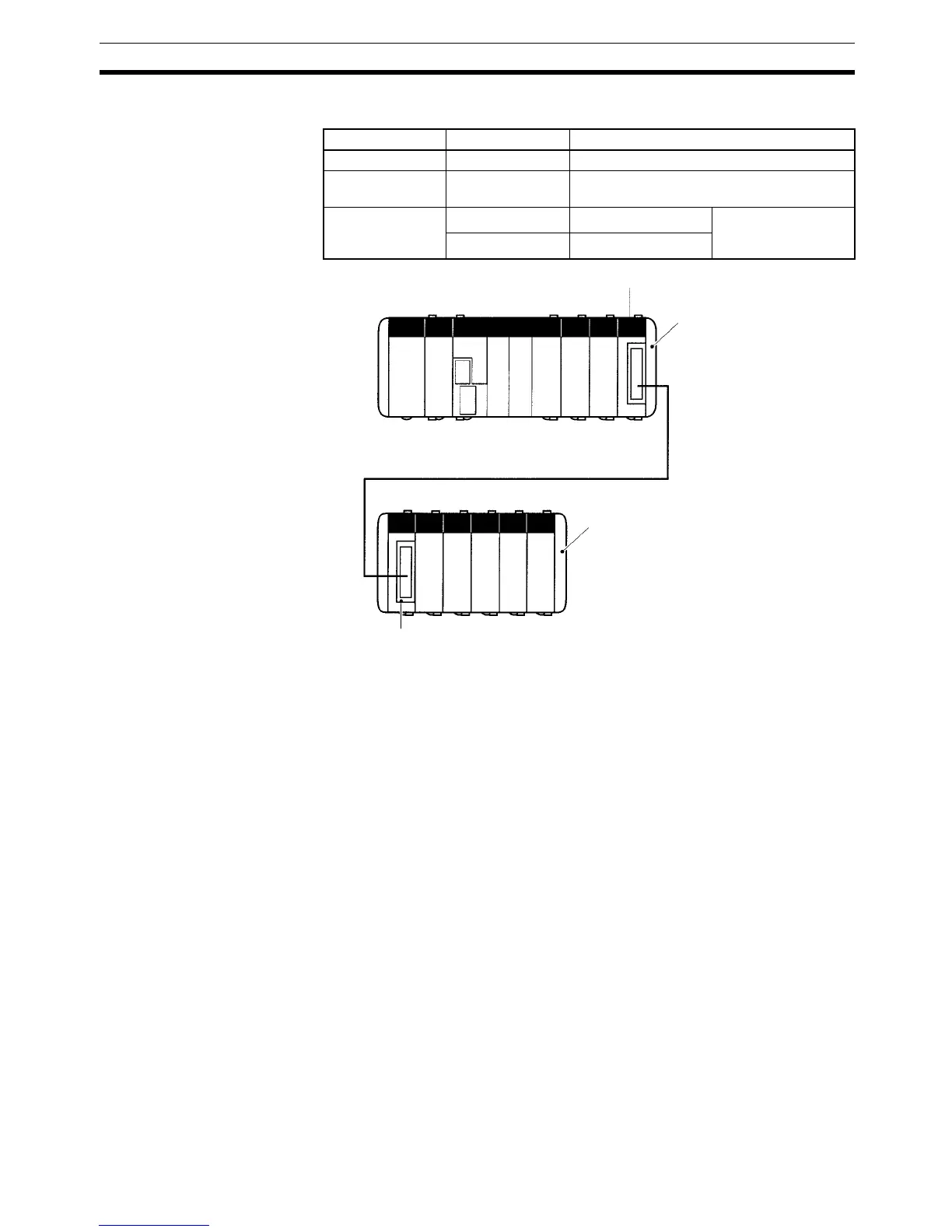

I/O Control Unit
End Cover (provided
with CPU Unit)
End Cover (provided
with I/O Interface Unit)
I/O Interface Unit
Expansion I/O Cable
