169

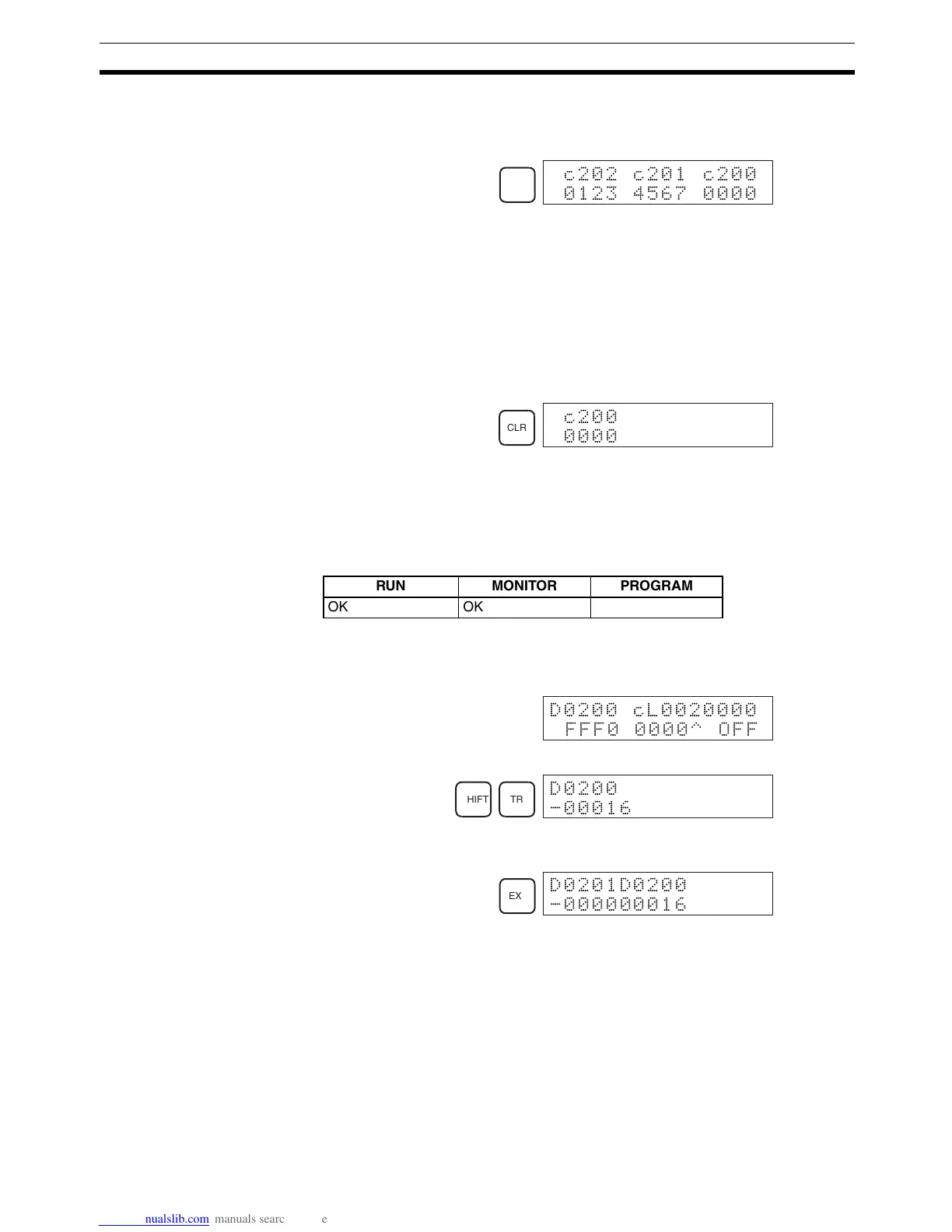

Programming Console Operations Section 7-3
2. Press the EXT Key to begin three-word monitoring. The status of the se-
lected word and the next two words will be displayed, as shown below. In
this case, DM 0000 was selected.
The Up and Down Arrow Keys can be used to shift one address up or
down.
The status of the displayed words can be changed at this point. Refer to 7-
3-23 Three-word Data Modification.
If ASCII characters are being displayed, three words of ASCII characters
will be displayed. Refer to 7-3-26 Hex-ASCII Display Change for details.
3. Press the CLR Key to end three-word monitoring and return to the normal
monitoring display. The rightmost word on the three-word monitor display
will be monitored.
7-3-15 Signed Decimal Monitor
This operation converts the contents of the word being monitored from signed
hexadecimal (two’s complement format) to signed decimal for display. The
operation can be executed while using I/O monitoring, multiple address moni-
toring or three-word monitoring.
1,2,3... 1. Monitor the word that is to be used for decimal monitor with sign. During
multiple address or three-word monitoring, the leftmost word will be con-
verted.
(Multiple address monitor)
2. Press the SHIFT+TR Keys to display the leftmost word as signed decimal.
3. Press the EXT Key to display double-word data. The following display
would appear if DM 0201 contained FFFF.
At this point, the contents of the displayed word can be changed with a
signed-decimal input. Refer to 7-3-21 Signed Decimal Data Modification.
4. Press the CLR Key or the SHIFT+TR Keys to end the unsigned decimal
display and return to normal monitoring. You will need to press the CLR
Key twice if double-word monitoring has been used.
EXT
? ? ?
! "#$%
CLR
?
RUN MONITOR PROGRAM
OK OK OK
D0200 cL0020000
FFF0 0000^ OFF
SHIFT TR
D0200
-00016
EXT
D0201D0200
-000000016
To Next Page
