115
Wiring and Connections Section 4-7
DIN Track Insulation
Spacers
Noise can interfere with proper operation if the ground wire connected to the
PC is shared with other equipment. If the CQM1H is mounted to DIN Track,
electrical continuity will be created with the control panel. To insulate the
CQM1H from the control panel, use DIN Track Insulation Spacers.

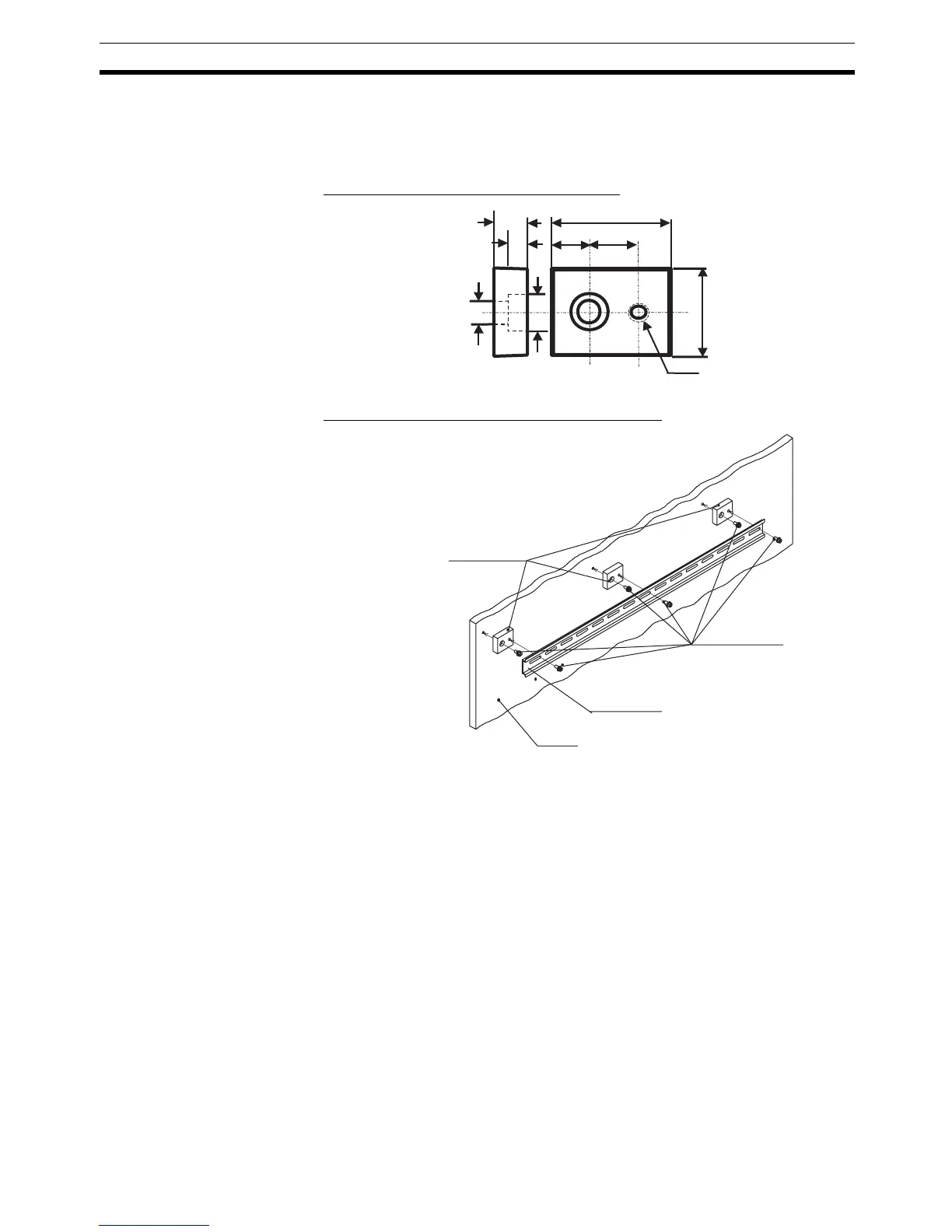

DIN Track Insulation Spacer Dimensions
DIN Track Insulation Spacer Mounting Method
First connect the Insulation Spacers to the control panel using screws and
then mount the DIN Track to the Insulation Spacers.
Recommended tightening torque: 1.2 N
⋅m
Note The mounting height of the CQM1H will be increased by approximately
10 mm if the Insulation Spacers are used. Be sure that the Units and Con-
necting Cables do not come into contact with other equipment.
4-7 Wiring and Connections
This section provides basic information on wiring the Power Supply Unit and I/
O Units, and on connecting Programming Devices.
4-7-1 Power Supply Unit Wiring
!WARNING Do not attempt to take any Unit apart while the power is being supplied. Doing
so may result in electric shock.
35
14.810
32.7
4.5 dia.
6
10
M4
10 dia.
Insulation Spacers
Control panel
DIN Track
Screws,
M4 x 10
To Next Page
