114
DIN Track Installation Section 4-6

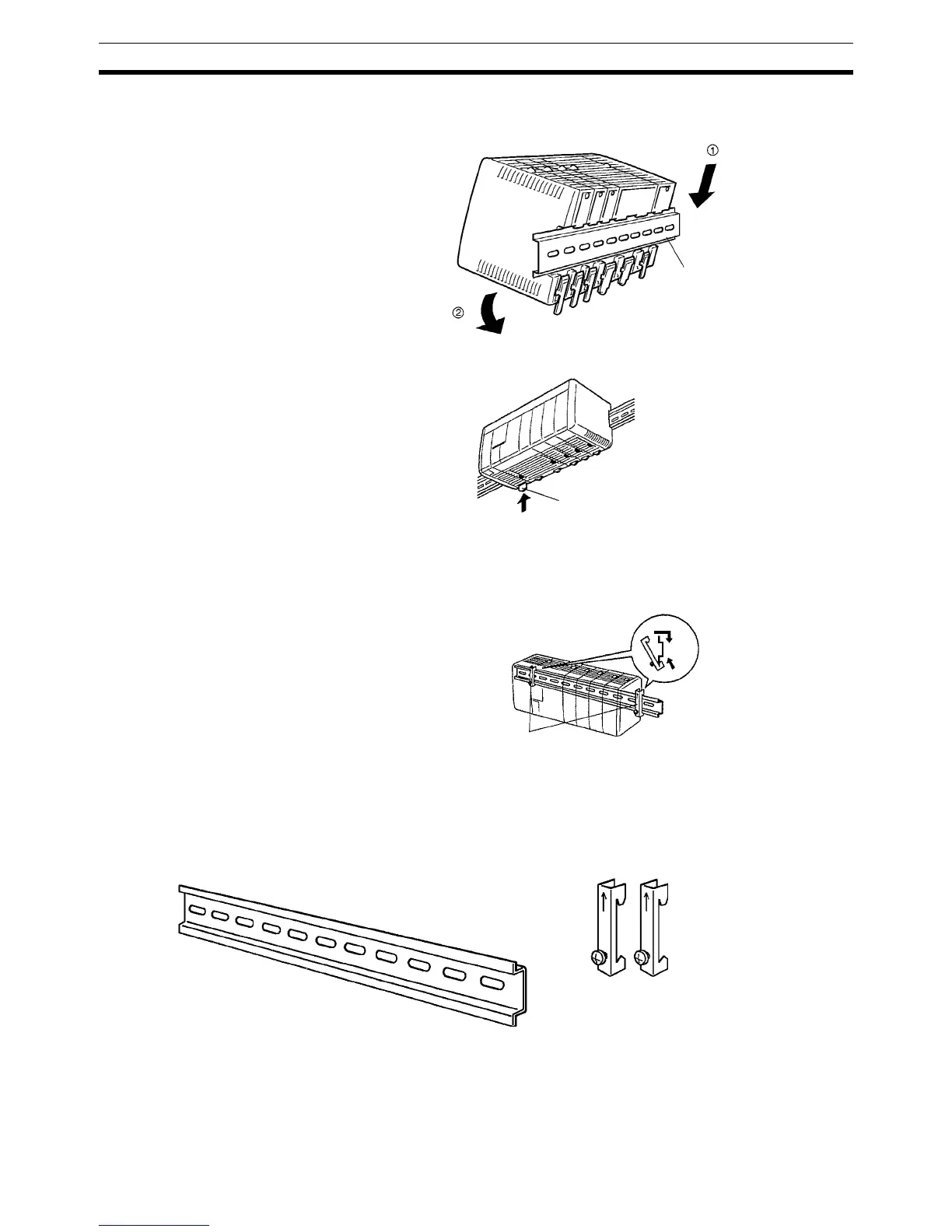

3. Fit the back of the PC onto the DIN Track by inserting the top of the track
and then pressing in at the bottom of the PC, as shown below.
4. Lock the pins on the backs of the CQM1H Units.
5. Install a DIN Track End Bracket on each side of the PC. To install a Bracket,
hook the bottom of the Bracket on the bottom of the track, rotate the Brack-
et to hook the top of the Bracket on the top of the track, and then tighten
the screw to lock the Bracket in place.
DIN Track and
Accessories
Use the DIN Track and DIN Track End Brackets shown below.
Din Track
DIN track mounting pin
DIN Track End Brackets
DIN Track
Model numbers: PFP-50N (50 cm),
PFP-100N (100 cm), PFP-100N2 (100 cm)
DIN Track End Plates (2 required)
Model number: PFP-M

Omron CQM1H - 08-2005 Specifications

General

Category	Programmable Logic Controller (PLC)
Manufacturer	Omron
Program Capacity	3.2K steps
Model	CQM1H
I/O Points	512 points max
