Connecting the Programming Console Section 7-2
Allow at least 80 mm for the cable connector above the Programming Con-
sole.
7-2-1 Compatible Programming Consoles
There are two Programming Consoles that can be used with the CQM1H: The
CQM1H-PRO01-E, CQM1-PRO01-E and the C200H-PRO27-E. The key func-
tions for these Programming Consoles are identical.
Press and hold the SHIFT Key to input a letter shown in the upper-left corner
of the key or the upper function of a key that has two functions. For example,
the CQM1H-PRO01-E or CQM1-PRO01-E’s AR/HR Key can specify either
the AR or HR Area; press and release the SHIFT Key and then press the AR/
HR Key to specify the AR Area.

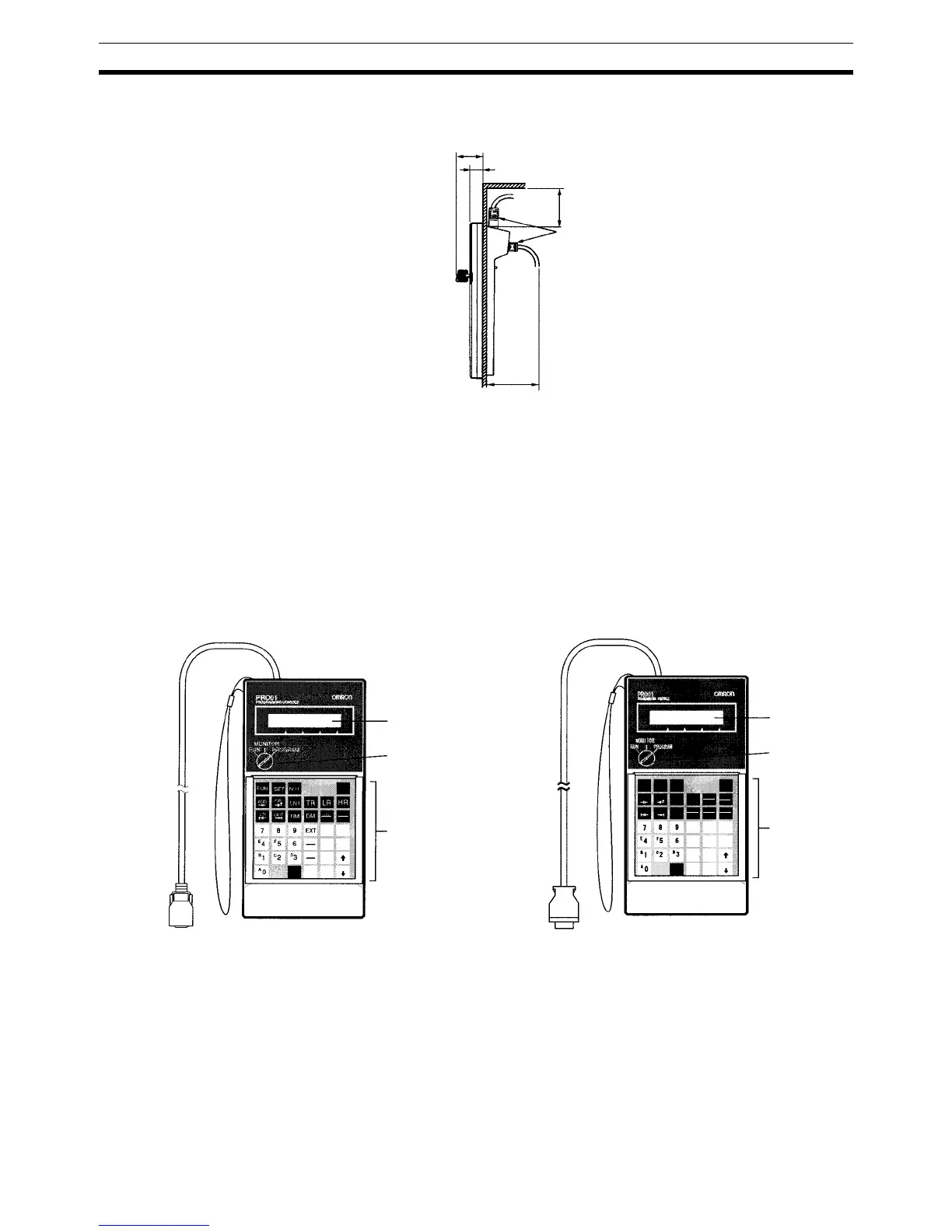

CQM1H-PRO01-E/CQM1-PRO01-E
About 70 mm is required.
At least 80 mm is required.
Either connector may
be used.
37
15
Attached
Connecting
Cable (2 m)
CQM1-PRO01-E
CQM1H-PRO01-E
LCD area
Mode switch
Operation keys
Attached
Connecting
Cable (2 m)
Connection
LCD area
Mode switch
Operation keys
