176
Programming Console Operations Section 7-3

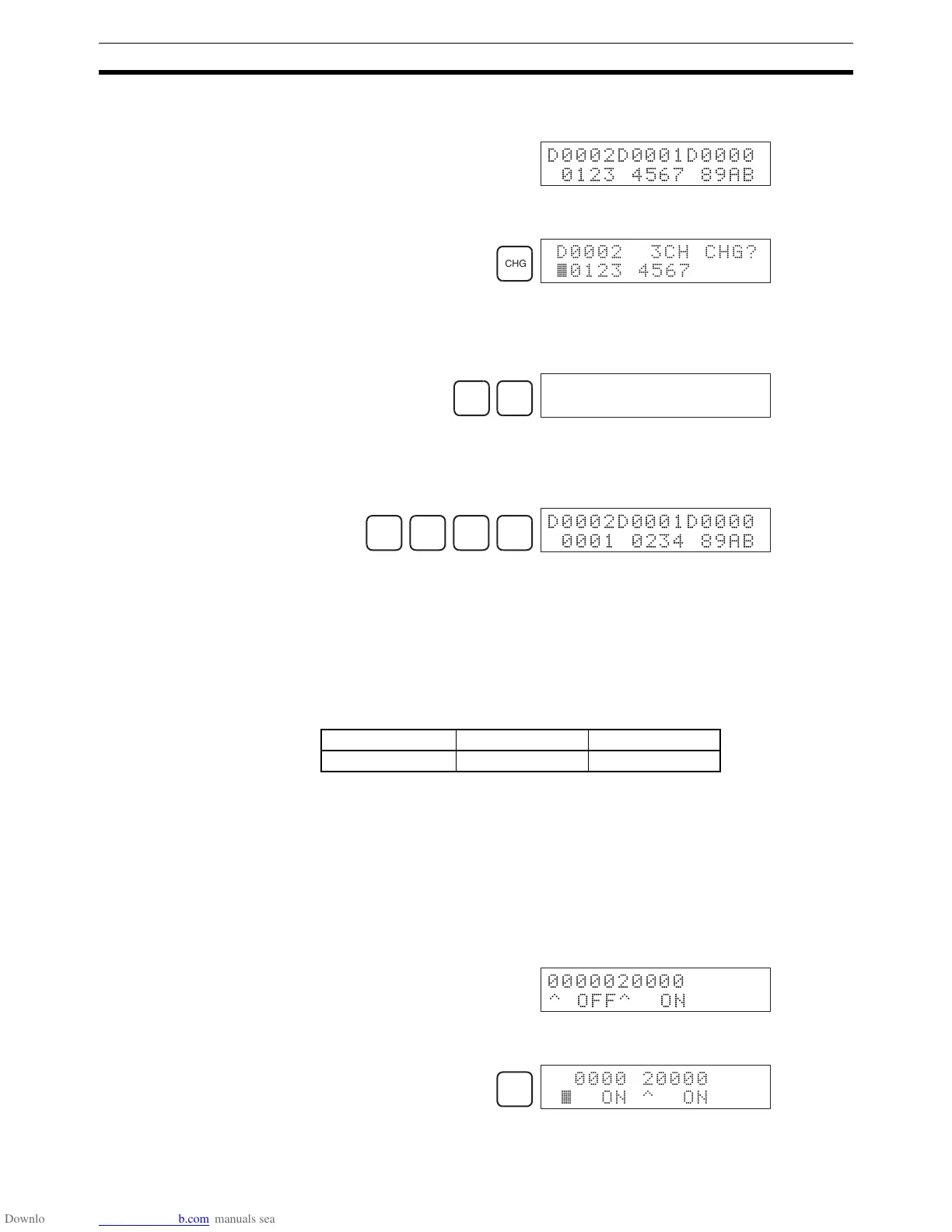

1,2,3... 1. Monitor the status of the desired words according to the procedure de-
scribed in 7-3-14 Three-word Monitor.
(Three-word monitor)
2. Press the CHG Key to begin three-word data modification. The cursor will
appear next to the contents of the leftmost word.
3. Input the new value for the leftmost word on the display and press the CHG
Key if more changes will be made.
(Input the new value and press the WRITE Key to write the changes in
memory if no more changes will be made.)
4. Input the new value for the middle word on the display and press the CHG
Key if the rightmost word will be changed. Input the new value and press
the WRITE Key to write the changes in memory if the rightmost word will
not be changed. (In this case, it will not.)
Note If the CLR Key is pressed before the WRITE Key, the operation will be can-
celled and the three-word monitor display will return without any changes in
data memory.
7-3-24 Force Set, Reset
This operation is used to force bits ON (force set) or OFF (force reset) and is
useful when debugging the program or checking output wiring. It is possible in
MONITOR or PROGRAM mode only.
!Caution Before changing the contents of I/O memory, be sure that the changes will not
cause equipment to operate unexpectedly or dangerously. In particular, take
care when changing the status of output bits. The PC continues to refresh I/O
bits even if the PC is in PROGRAM mode, so devices connected to output
points on the Output Units may operate unexpectedly.
1,2,3... 1. Monitor the status of the desired bit according to the procedure described
in 7-3-12 Bit, Digit, Word Monitor. If two or more words are being moni-
tored, the desired bit should be leftmost on the display.
(Multiple address monitor)
2. Press the SET Key to force the bit ON or press the RESET Key to force the
bit OFF.
, ,,
! "#$% &')*
CHG
D0002 3CH CHG?
~0123 4567 89AB
B
1
CHG
D0002 3CH CHG?
0001~4567 89AB
C
2
D
3
E
4
WRITE
, ,,
!" &')*
RUN MONITOR PROGRAM
No OK OK
20000
^ OFF^ ON
SET
00000 20000
~ ON ^ ON
To Next Page
