63
Output Unit Specifications Section 2-3

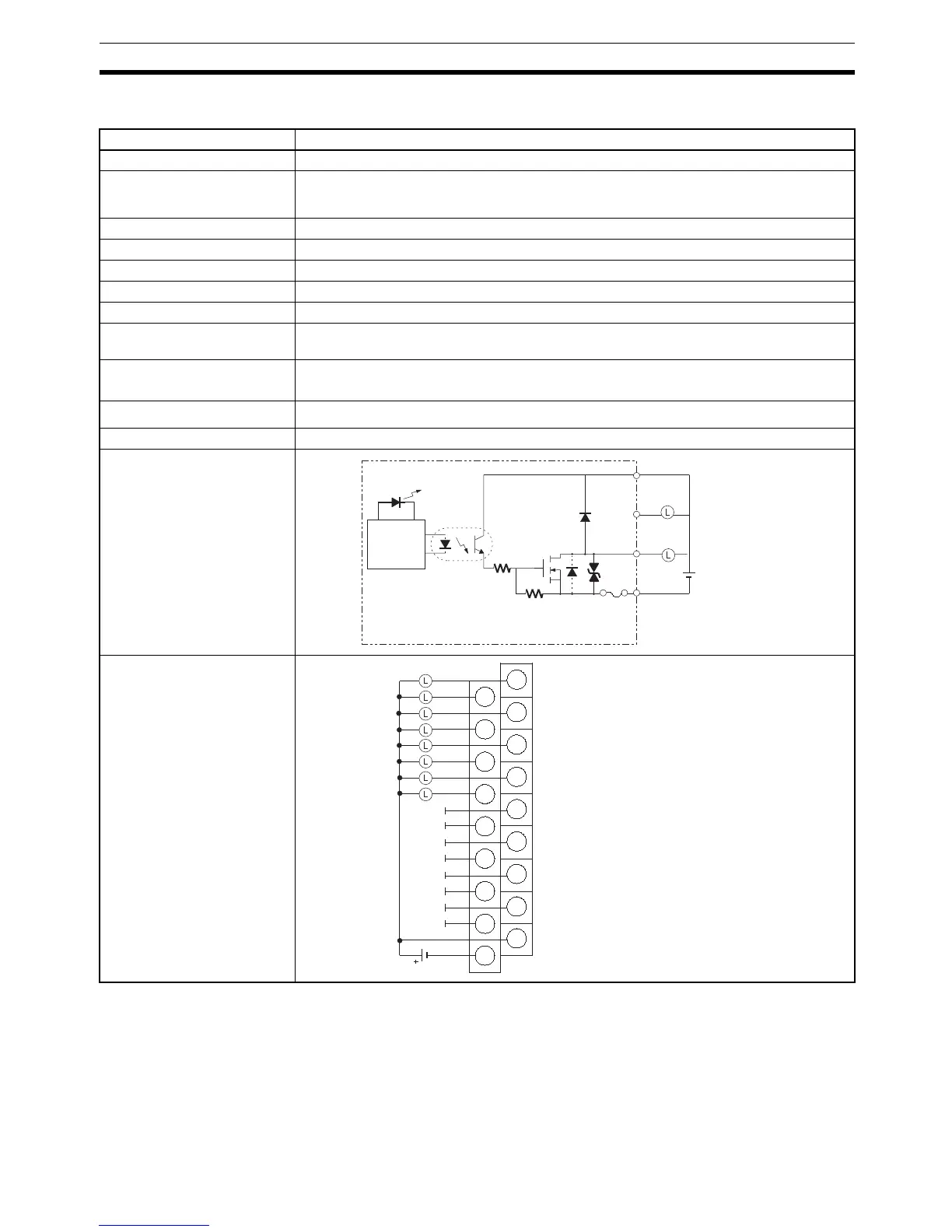

2-3-2 Transistor Output Units
Item CQM1-OD211
Name 8-point Transistor Output Unit
Max. Switching Capacity
2 A at 24 V DC
+10%
/
–15%
5 A/Unit
Leakage Current 0.1 mA max.
Residual Voltage 0.7 V max.
ON Delay 0.1 ms max.
OFF Delay 0.3 ms max.
No. of Outputs 8 points (8 points/common, 1 circuit)
Internal Current Consump-
tion
90 mA max. at 5 V DC max.
Fuse 7 A (one per common), one used
Fuse is not user replaceable.
Service Power Supply
15 mA
min. at 24 V DC
+10%
/
–15%
(1.9 mA × number of ON points)
Weight 200 grams max.
Circuit Configuration
Terminal Connections
to
+V
Fuse
7 A
OUT0
Output
LED
Internal
Circuits
COM
OUT07
24 V DC
B0
OUT0
OUT1
A0
B1
OUT2
OUT3
A1
B2
OUT4
OUT5
A2
B3
OUT6
OUT7
B4
A4
B5
A5
B6
A6
B7
A7
B8
A8
A3
COM
–
NC
NC
NC
NC
NC
NC
NC
NC
+DC
Note 1. Do not reverse the polarity of the
load power supply. If the load
power supply is connected in
correctly, the loads may not op
erate correctly.
2. Do not reverse the connections
for +DC and the common. If +DC
and the common are connected
incorrectly, internal circuits may
be damaged.
