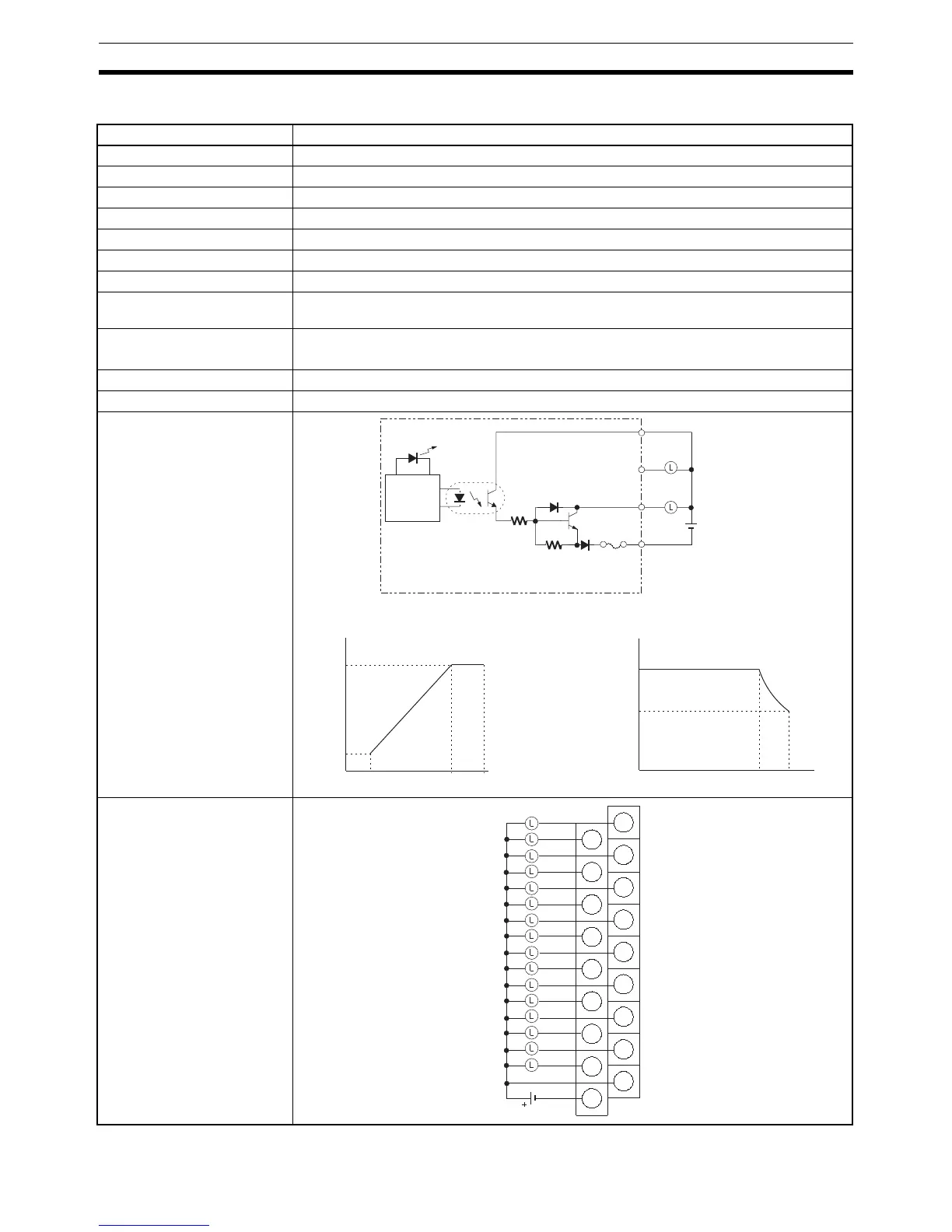

Output Unit Specifications Section 2-3
Item CQM1-OD212
Name 16-point Transistor Output Unit
Max. Switching Capacity 50 mA at 4.5 V DC to 300 mA at 26.4 V (see diagram below)
Leakage Current 0.1 mA max.
Residual Voltage 0.8 V max.
ON Delay 0.1 ms max.
OFF Delay 0.4 ms max.
No. of Outputs 16 points (16 points/common, 1 circuit)
Internal Current
Consumption
170 mA max. at 5 V DC
Fuse 5 A (one per common), one used
Fuse is not user replaceable.
Service Power Supply 40 mA min. at 5 to 24 V DC ±10% (2.5 mA × number of ON points)
Weight 180 grams max.
Circuit Configuration
Terminal Connections
to
+V
Fuse
5 A
OUT0
Output
LED
Internal
Circuits
COM
OUT15
4.5
to
26.4
V DC
4.5 20.4 26.4 0 45 55
300
50
5.0
4.8
3.0
2.8
Max. Switch Capacity (per Point)
+V (V)
Max. Switch Capacity (Total for Unit)
(C)
Ic max. (mA)
Ic max. (A)
B0
OUT0
OUT1
A0
B1
OUT2
OUT3
A1
B2
OUT4
OUT5
A2
B3
OUT6
OUT7
B4
OUT8
OUT9
A4
B5
OUT10
OUT11
A5
B6
OUT12
OUT13
A6
B7
OUT14
OUT15
A7
B8
A8
A3
COM
–
+DC
To Next Page
